Lutron

MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH

Category Lighting Occupancy Sensors
Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH
Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH
Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH
Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH
Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH Picture of MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH
Lutron

MS-OPS6M2-DV-WH - Maestro Dual Voltage Motion Sensor 6A WH

Item Code: 765803
Category Lighting Occupancy Sensors
Manufacturer LUTRON ELECTRONICS
Manufacturer Ref MS-OPS6M2-DV-WH

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

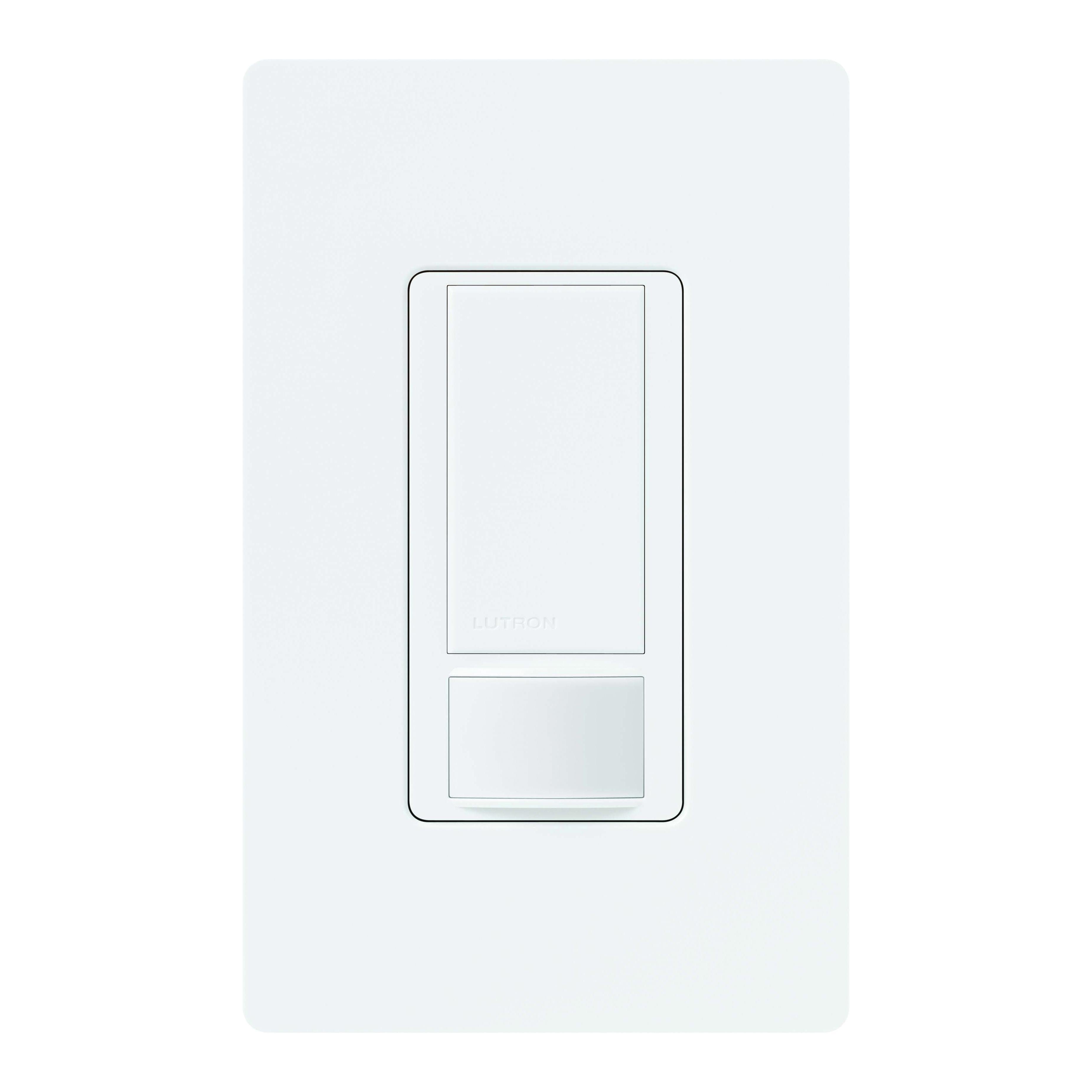

The Lutron Maestro Motion Sensor Switch features Lutron’s advanced motion sensing technology to automatically turn the lights on and off, or manually toggle the lights with the tap switch. The Motion Sensor Switch is rated up to 6A for any lighting type, 3A fan or 3A for combined light/fan. Install in a single pole, 3-way with one existing switch, or with Maestro companion switches (MA-AS/MSC-AS) to switch from up to 9 locations. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Lutron sensors also have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. Switch the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. The sensitivity of the PIR sensor can also be changed so it only detects larger motion Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Specifications

Height

4.5mm

Width

2.25mm

Length

2.25mm

AD Application

Breakroom and Office Applications

AD Brand (Description)

Lutron

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

SWITCH SENSING OCCUPANCY 120 TO 277VAC

AD Item Features 01

Rated to work with up to 6A lighting, 3A Fan or 3A combined Light/Fan, 120-277V

AD Item Features 02

Wire-Lead installation, Ground or Neutral Required

AD Item Features 03

Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS), Compatible with one existing 3-way switch

AD Item Features 04

Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers

AD Manufacturer (Description)

LUTRON ELECTRONICS

AD Package Height

4.5000

AD Package Height UOM

IN

AD Package Length

2.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Width

2.2500

AD Package Width UOM

IN

Brand

Lutron

Category

LIGHTING OCCUPANCY SENSORS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

6

Spec 10 Attribute

Response Frequency

Spec 10 Attribute UOM

HZ

Spec 10 Attribute Value

50/60

Spec 11 Attribute

Sensor Type

Spec 11 Attribute Value

Passive Infrared

Spec 12 Attribute

Series

Spec 12 Attribute Value

Maestro®

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

32 To 104

Spec 14 Attribute

Time Delay

Spec 14 Attribute UOM

S

Spec 14 Attribute Value

10

Spec 15 Attribute

Type

Spec 15 Attribute Value

1-Pole Multi-Location

Spec 16 Attribute

Viewing Angle

Spec 16 Attribute UOM

deg

Spec 16 Attribute Value

180

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

120 To 277

Spec 2 Attribute

Color

Spec 2 Attribute Value

White

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Ground

Spec 4 Attribute

Control Output

Spec 4 Attribute Value

Manual On/Automatic Off/Automatic On/Automatic Off

Spec 5 Attribute

Coverage

Spec 5 Attribute Value

400 sq-ft Minor, 900 sq-ft Major

Spec 6 Attribute

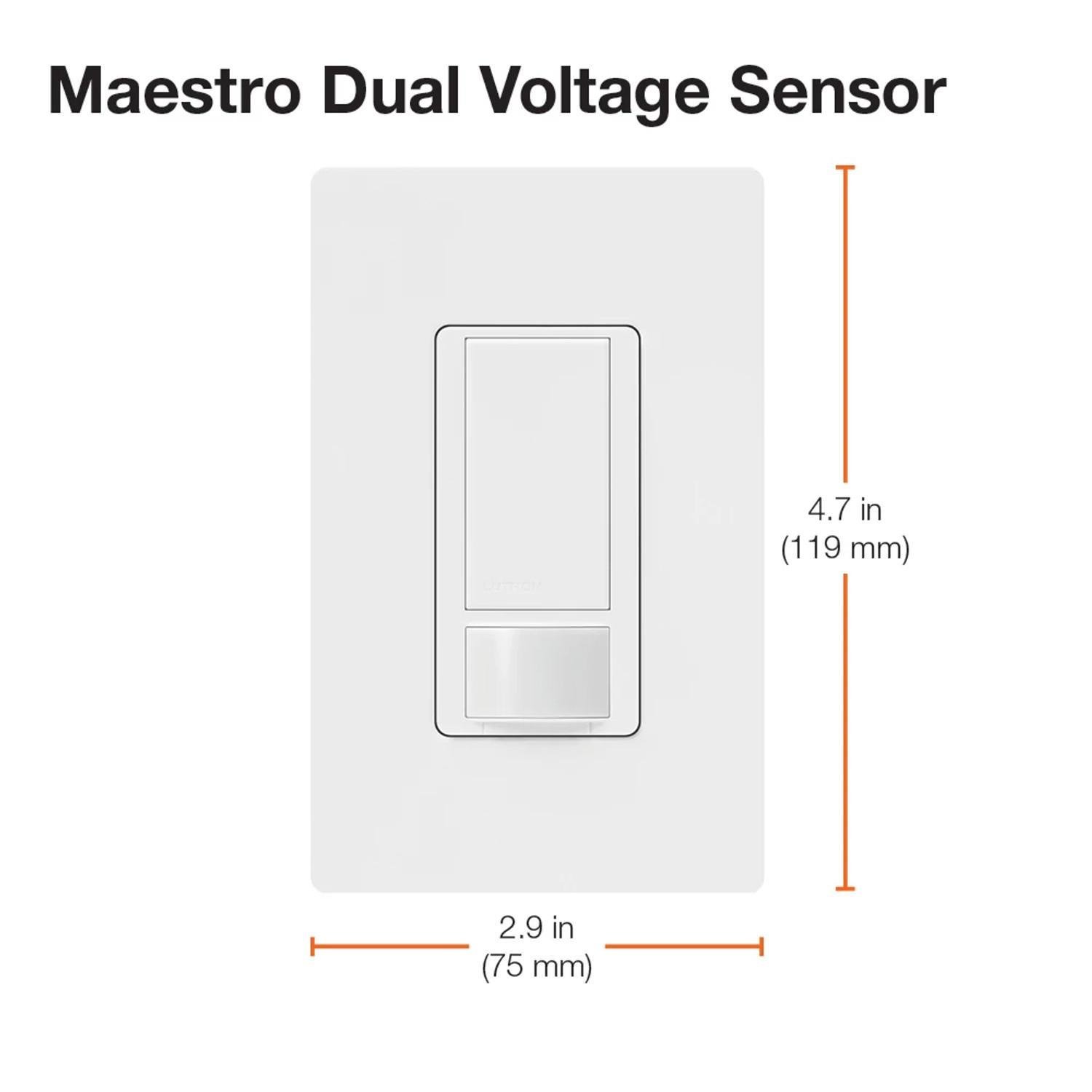

Dimensions

Spec 6 Attribute Value

4-11/16 in H x 2-15/16 in W x 1-1/8 in D

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

NEMA WD7

Spec 8 Attribute

Lamp Type

Spec 8 Attribute Value

ELV/Fluorescent/Halogen/Incandescent/LED/MLV

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Wall
