Square D

HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover

Category Load Centers & Accessories

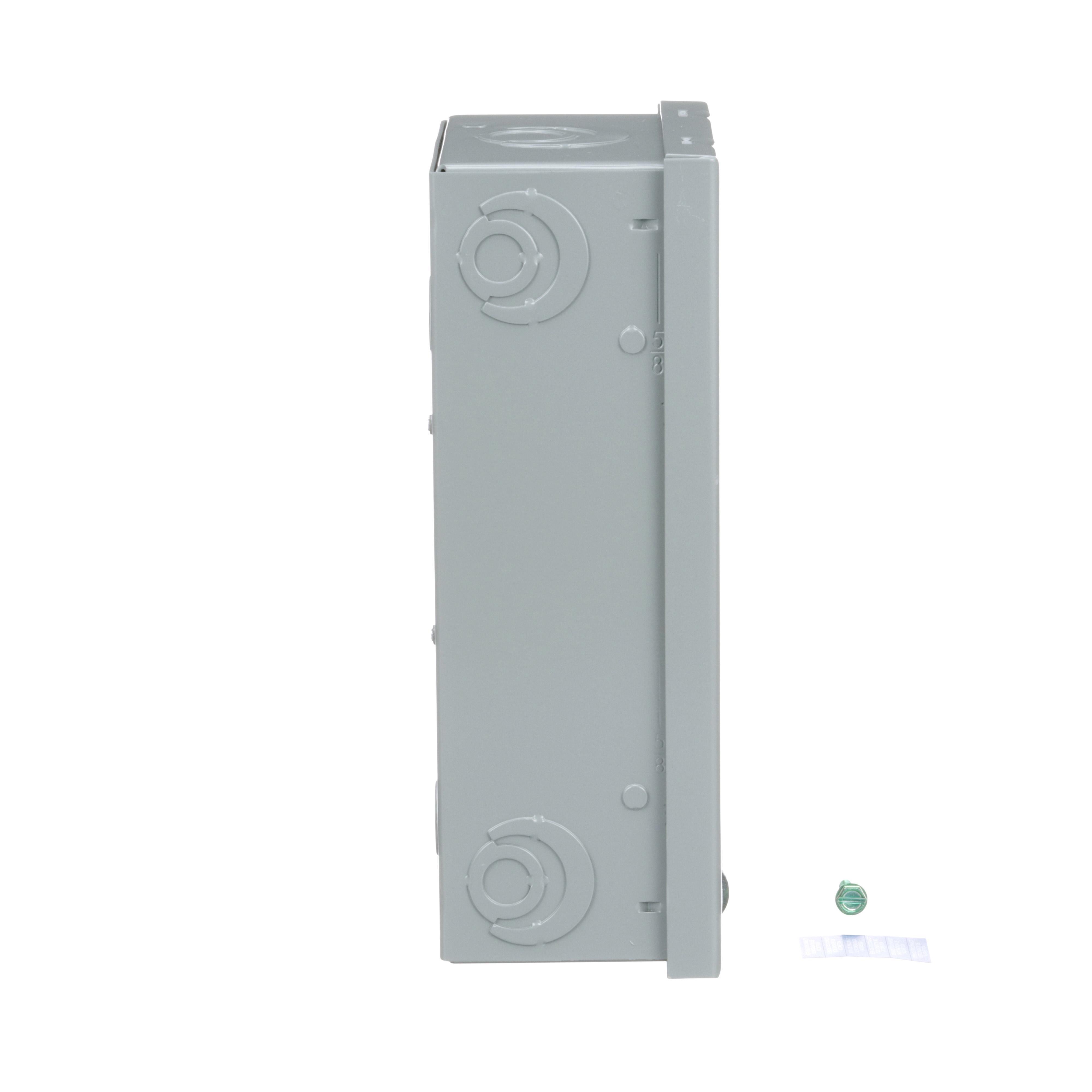

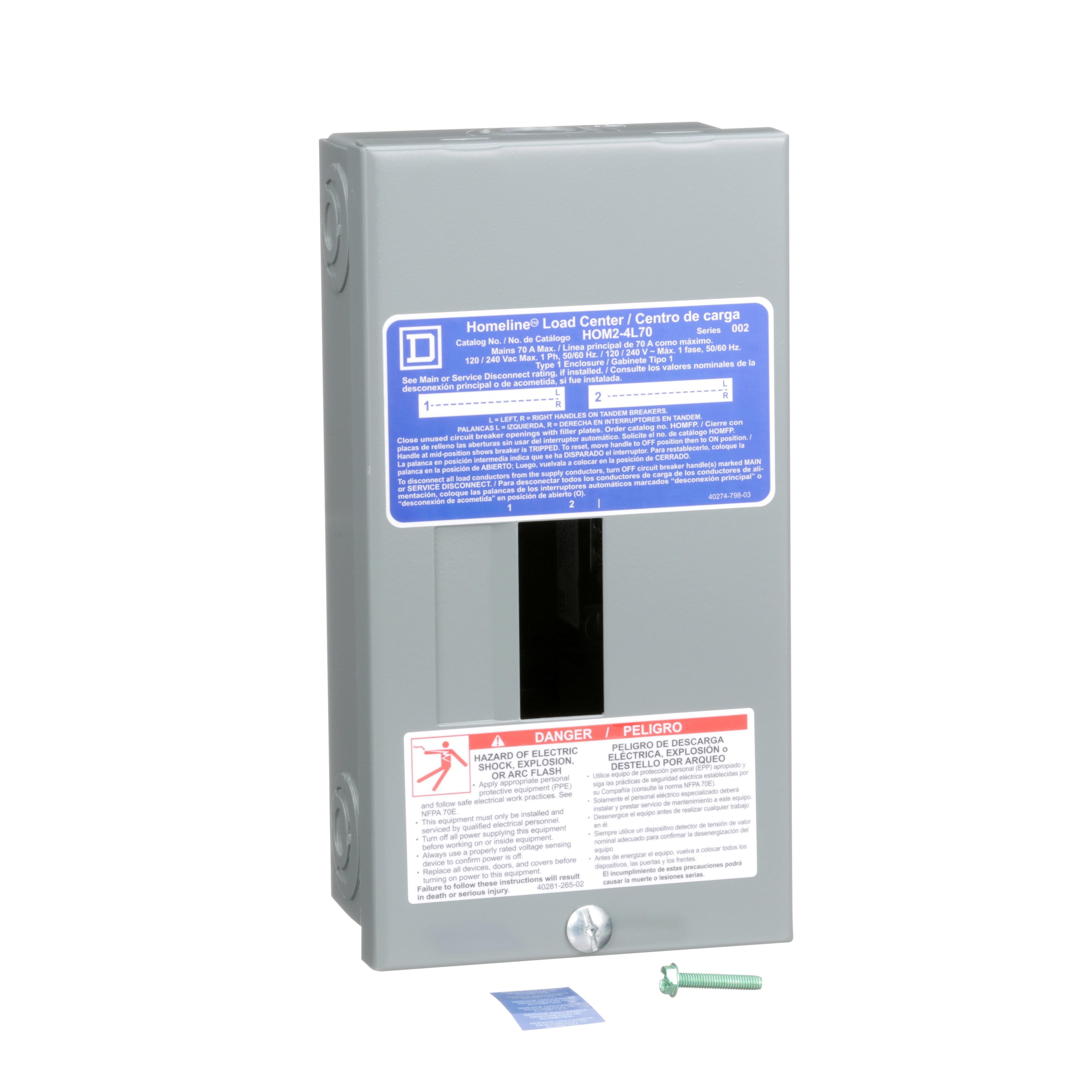

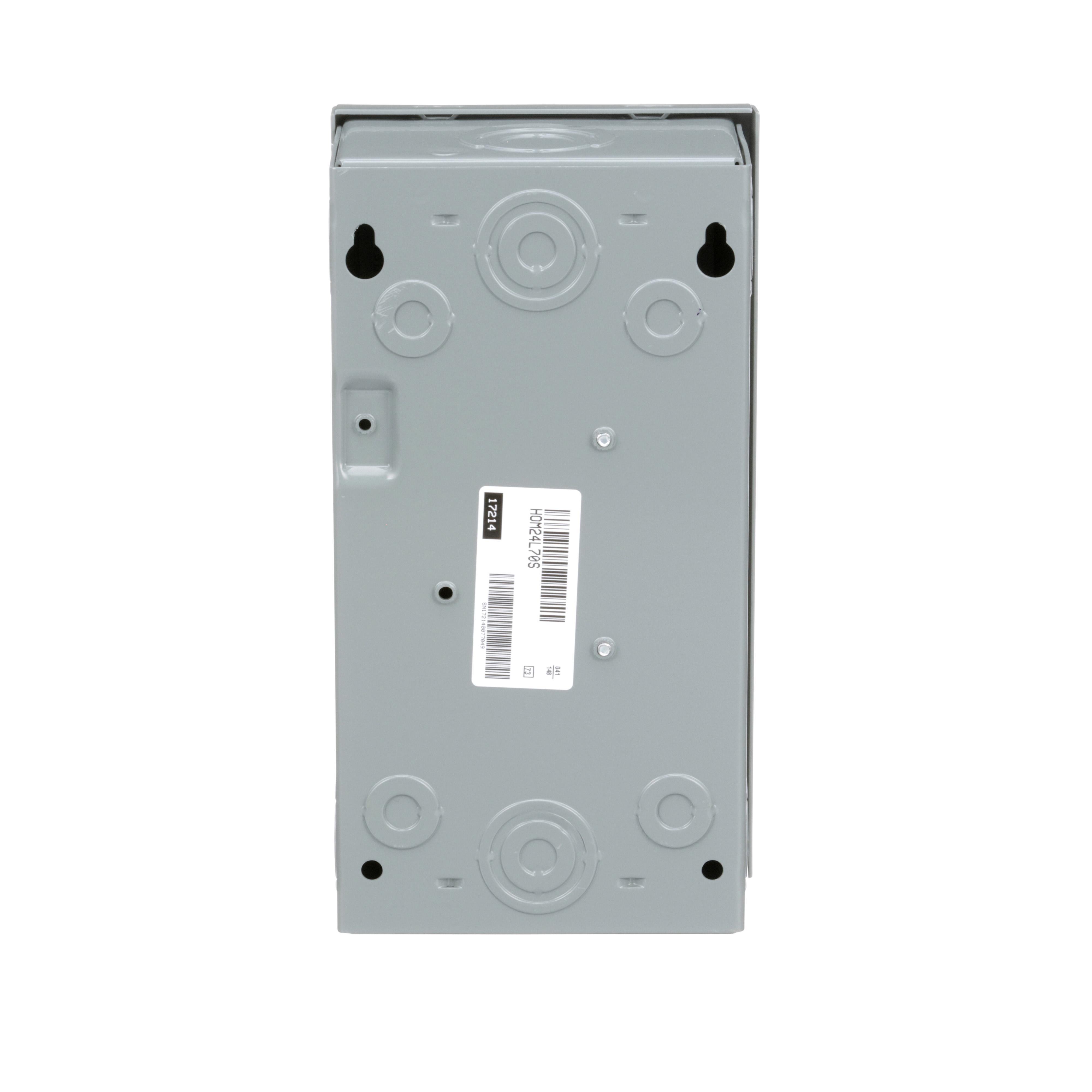

Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover
Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover
Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover
Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover Picture of HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover
Square D

HOM24L70S - Load center, Homeline, 1 phase, 2 spaces, 4 circuits, 70A fixed main lugs, NEMA1, surface cover

Item Code: 18175
Category Load Centers & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref HOM24L70S

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 70A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 2 spaces in a NEMA 1 indoor enclosure. Has a surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 14 AWG to 4 AWG copper or 12 AWG to 3 AWG aluminum wire. This Homeline load center has a height of 9.29 inches, a width of 4.80 inches, and depth of 3.18 inches. Homeline load centers are UL Listed.

Specifications

Weight

3.72lb

Height

236mm

Width

6.43mm

Length

11mm

Depth

81mm

AD All Features

Fast installation, reliability, and superior circuit protection

AD Application

For residential, commercial and industrial requirements to protect electrical systems, equipment and people applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Includes

Surface Cover

AD Invoice Description

LOADCENTER MAIN LUG 120/240VAC 70A 1 4 2

AD Item Features 01

Fast installation, reliability, and superior circuit protection

AD Item Features 02

Protects against equipment overloads and short-circuits

AD Item Features 03

Tin and copper plated aluminum bus bars

AD Item Features 04

Replacement covers in gray and white

AD Item Features 05

Distributed neutral bars keeps wiring tidy

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

11.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.7200

AD Package Weight UOM

LB

AD Package Width

6.4300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/Roe3J3d1ca8

Brand

Square D

Category

Load Centers & Accessories

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

70

Spec 10 Attribute

Number of Circuits

Spec 10 Attribute Value

4

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

1

Spec 12 Attribute

Number of Spaces

Spec 12 Attribute Value

2

Spec 13 Attribute

Type

Spec 13 Attribute Value

1-ph Fixed

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

120/240

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

12 to 3 AWG, 14 to 4 AWG

Spec 16 Attribute

Wiring Configuration

Spec 16 Attribute Value

3-Wire

Spec 2 Attribute

BREAKER MOUNTING

Spec 2 Attribute Value

Panel

Spec 3 Attribute

Breaker Type

Spec 3 Attribute Value

HOM

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.81 in W x 3.19 in D x 9.3 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Interrupt Rating

Spec 8 Attribute UOM

KA

Spec 8 Attribute Value

10

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
