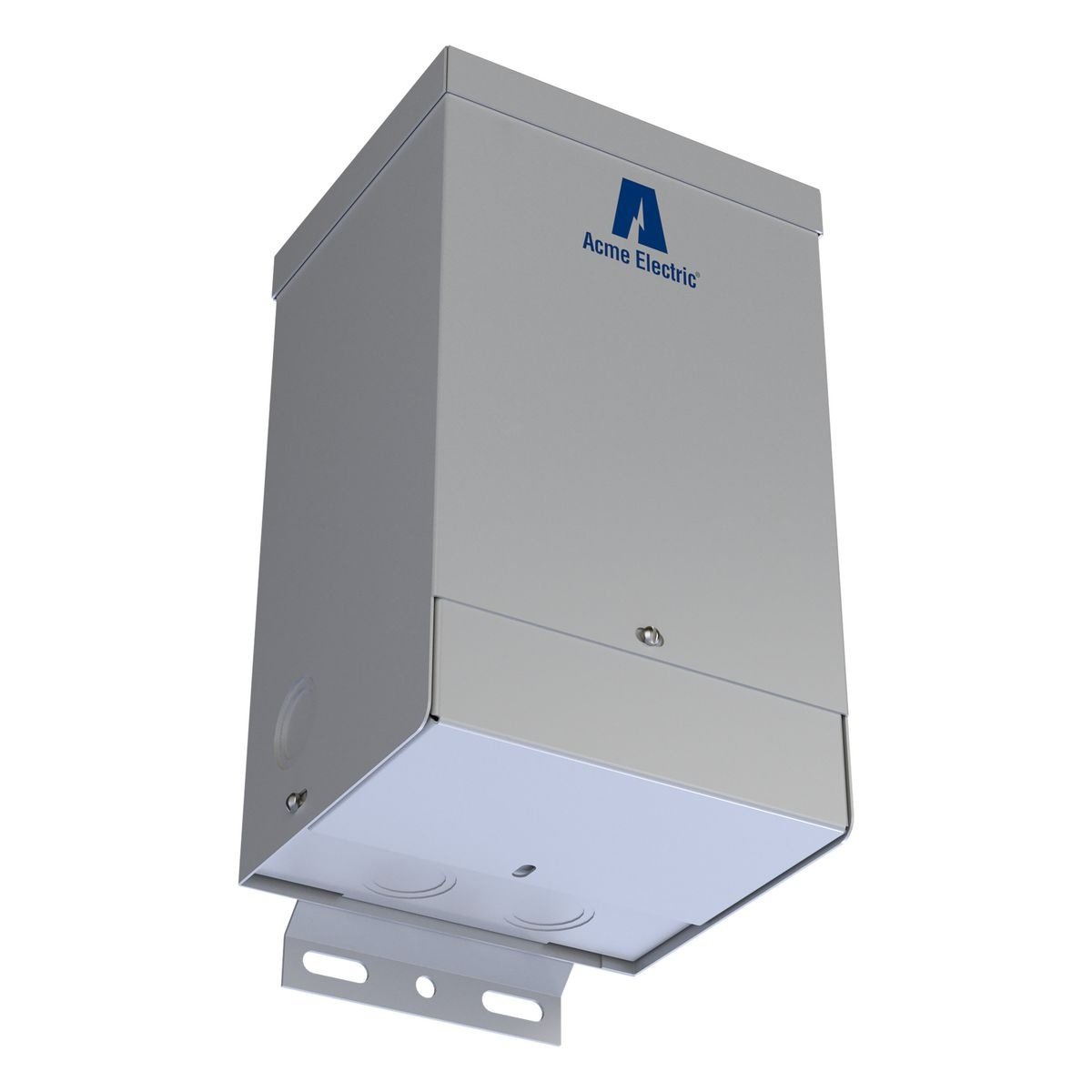

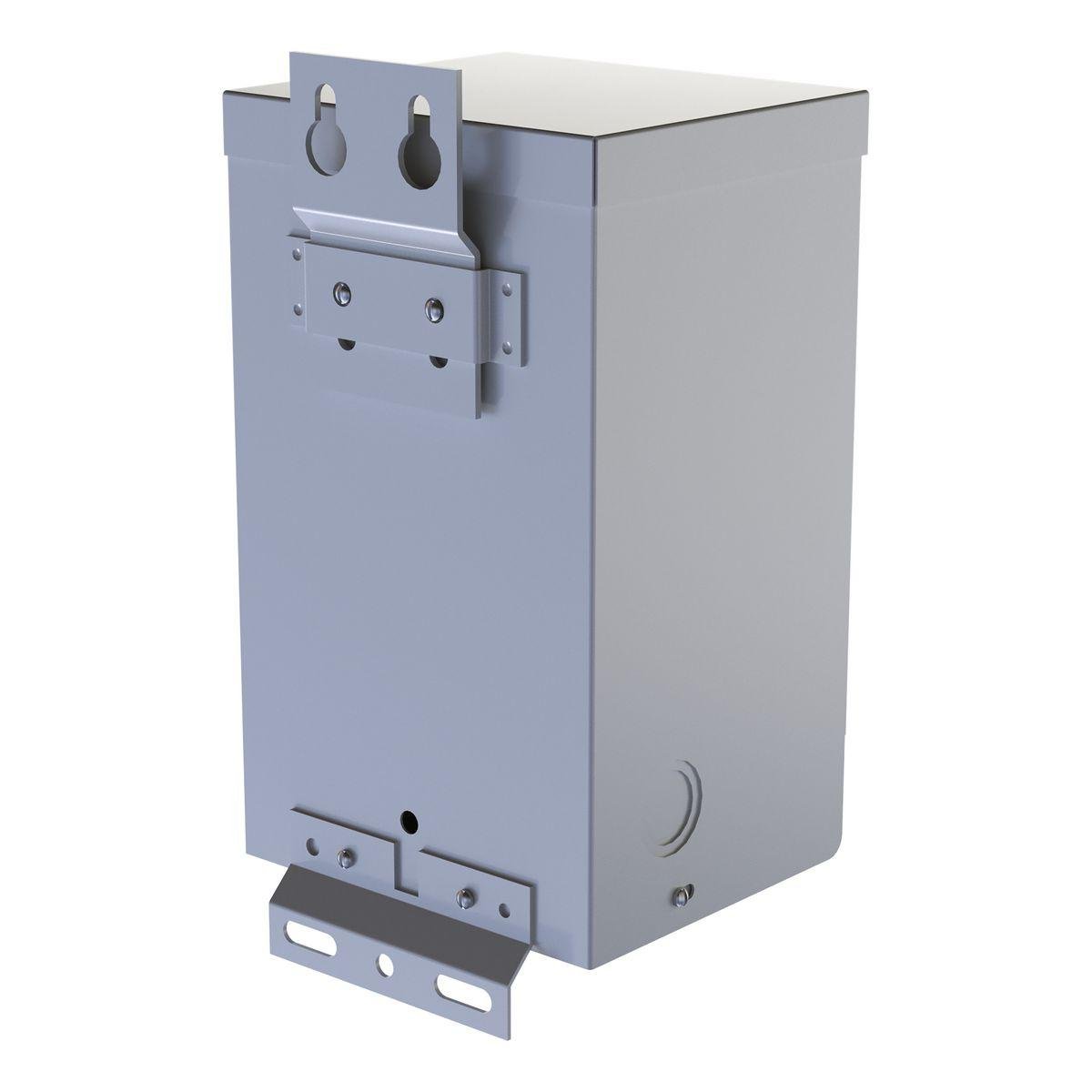

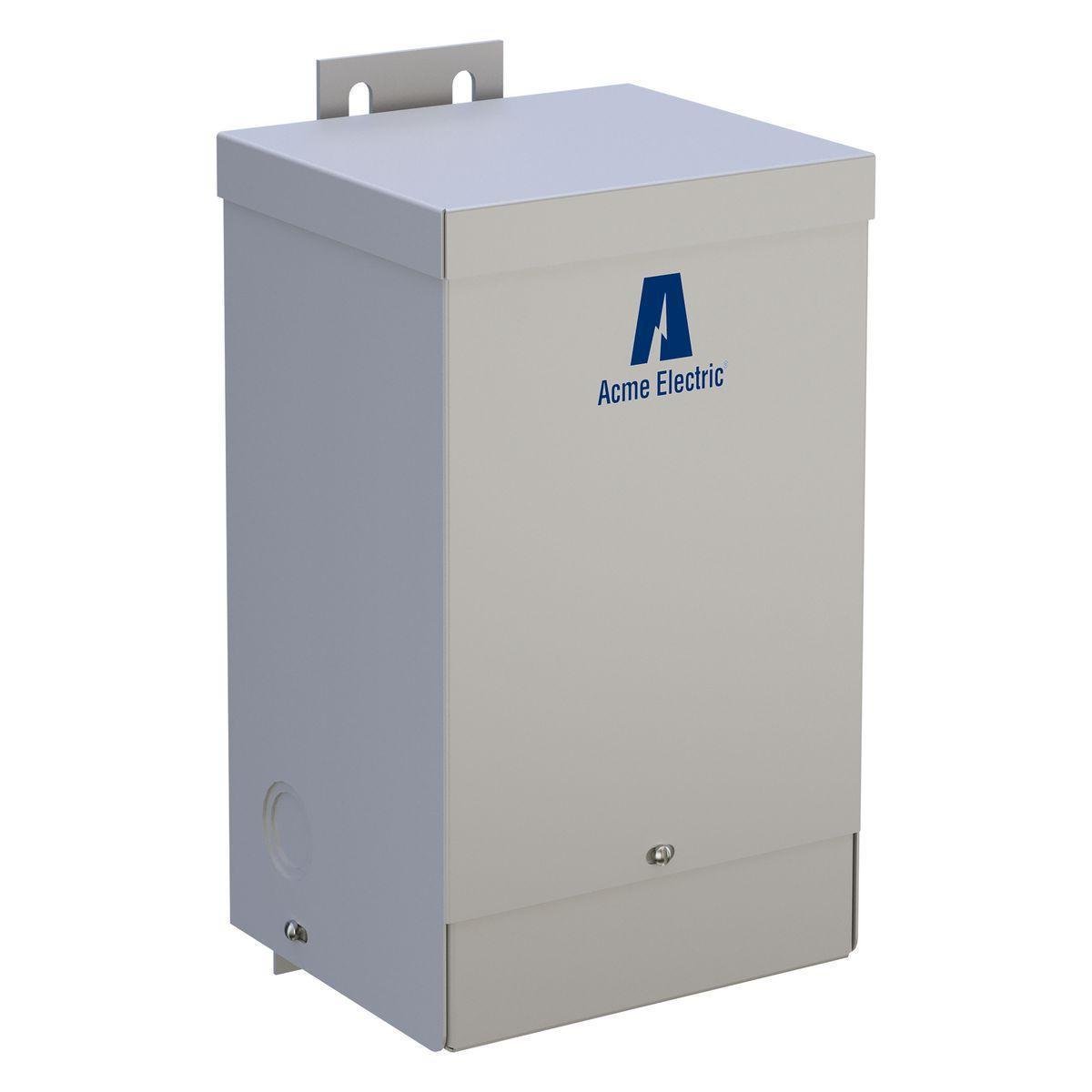

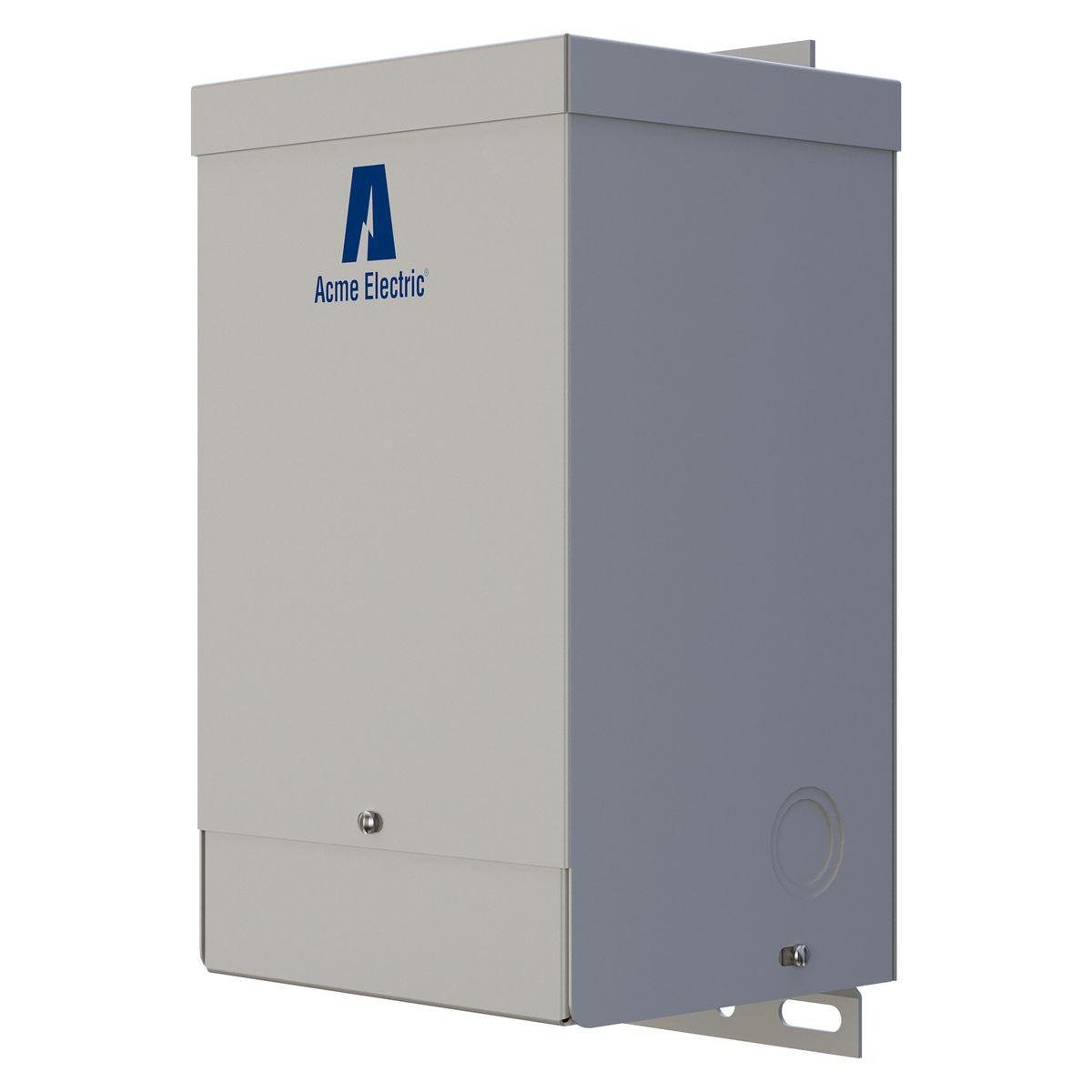

T181051 - Buck-Boost Transformer - Single Phase, 120 X 240 - 12/24V, 500VA
Description
Specifications
16
9.06
4.37
4.2
Easily configured for numerous applications
14171615
For low voltage lighting or control circuitry applications
Acme Electric®
USA
MX
SDS
Catalog
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
00047503084489
14171615
TRANSFORMER BOOST BUCK 120/240VAC 0.5KVA
Easily configured for numerous applications
Lower cost solution
5-10 times increase in kVA
T181051 Isolation Buck Boost Transformer, 120/240 V AC Primary, 12/24 VAC Secondary, 0.5 kVA Power Rating, 60 Hz, 1 Phase ; Hubbell ; Acme Electric ; T181051 ; 047503084489 ; Buck Boost Transformers
Hubbell
9.0600
IN
4.2000
IN
1
16.0000
LB
4.3700
IN
T181051 ; 14171615 ; 047503084489 ; 47503084489 ; 04750308448 ; 00047503084489
https://youtu.be/90eTKtIzAtQ
Acme Electric
Miscellaneous
Connection Type
Wire Lead/Screw
Primary Voltage
V AC
120/240
Secondary Voltage
V DC
24-Dec
Temperature Rating
deg C
115
Type
Isolation
Dimensions
4.2 in L x 4.37 in W x 9.06 in H
Enclosure Type
NEMA 3R
Frequency Rating
HZ
50/60
Insulation
Class H/180 deg C
Maximum Amperage Rating
41.6 A at 12 V/20.80 A at 24 V Output
Mounting Type
Wall
PHASE
1
Power Rating
kVA
5.04
