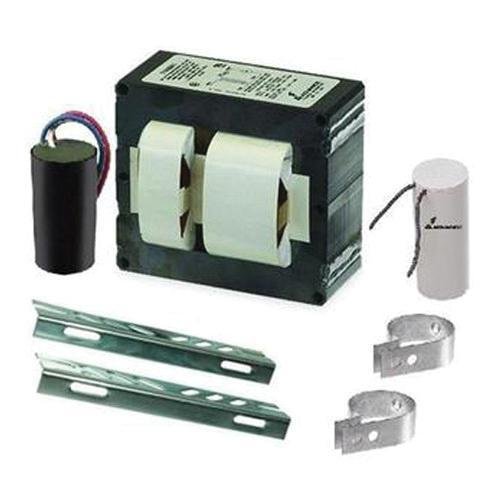

71A5390001D - ADV 71A5390001D (ADVANCE) KIT MH/PSMH 100W CORE & COIL 120/208/240/277V WITH DRY FILM CAPACITOR, IGNITOR & MOUNTING (ANSI M90/M140)
Description
Specifications
6.3lb
2.81mm
2.8mm
3.94mm
Lighting Luminaire Component and Outdoor Applications
Advance
USA
CN
HID EMER BLST HID MET HALIDE 100W
The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
The core and coil also forms the nucleus of Philips Advance five other ballast configurations
12 Mfd capacitor
2.5/1.5/1.3/1.12 A input current (open circuit), 1.24/0.54/0.45/0.4 A input current (starting), 0.63 to 0.95/0.43 to 0.65/0.37 to 0.55/0.29 to 0.44 A input current (short circuit), 1.15/0.66/0.58/0.5 A input current (nominal)
3 x 4 in (2 LW) core
1.65 in Dia x 2.75 in H oval capacitor
Ballast replacement kit with dry film capacitor
UL insulation class H of 180 deg C
Signify
2.8100
IN
3.9400
IN
1
6.3000
LB
2.8000
IN
Advance Transformer
HID BALLAST KITS
Amperage Rating
A
1.15/0.66/0.58/0.5
Minimum Starting Temperature
deg F
-20
Number of Lamps
1
Power Factor
0.9
Start Type
Pulse
Thermal Protection
CLASS P
Type
Magnetic
Voltage Rating
V AC
120/208/240/277
Wattage
W
129
Ballast Factor
1
Ballast Grade
ANSI M90/M140

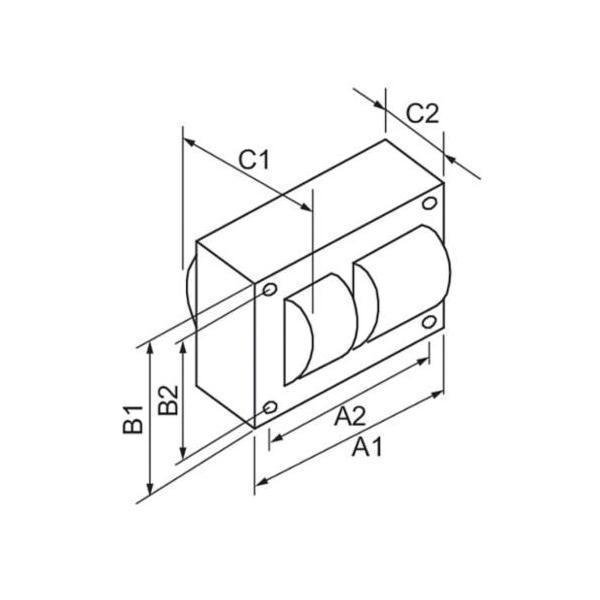

Dimensions
4 in L x 3.07 in W x 2.9 in H
Dimmable
No
Frequency Rating
HZ
60
Lamp Base Type
71A5390
Lamp Type
HID
Lamp Wattage
W
100
