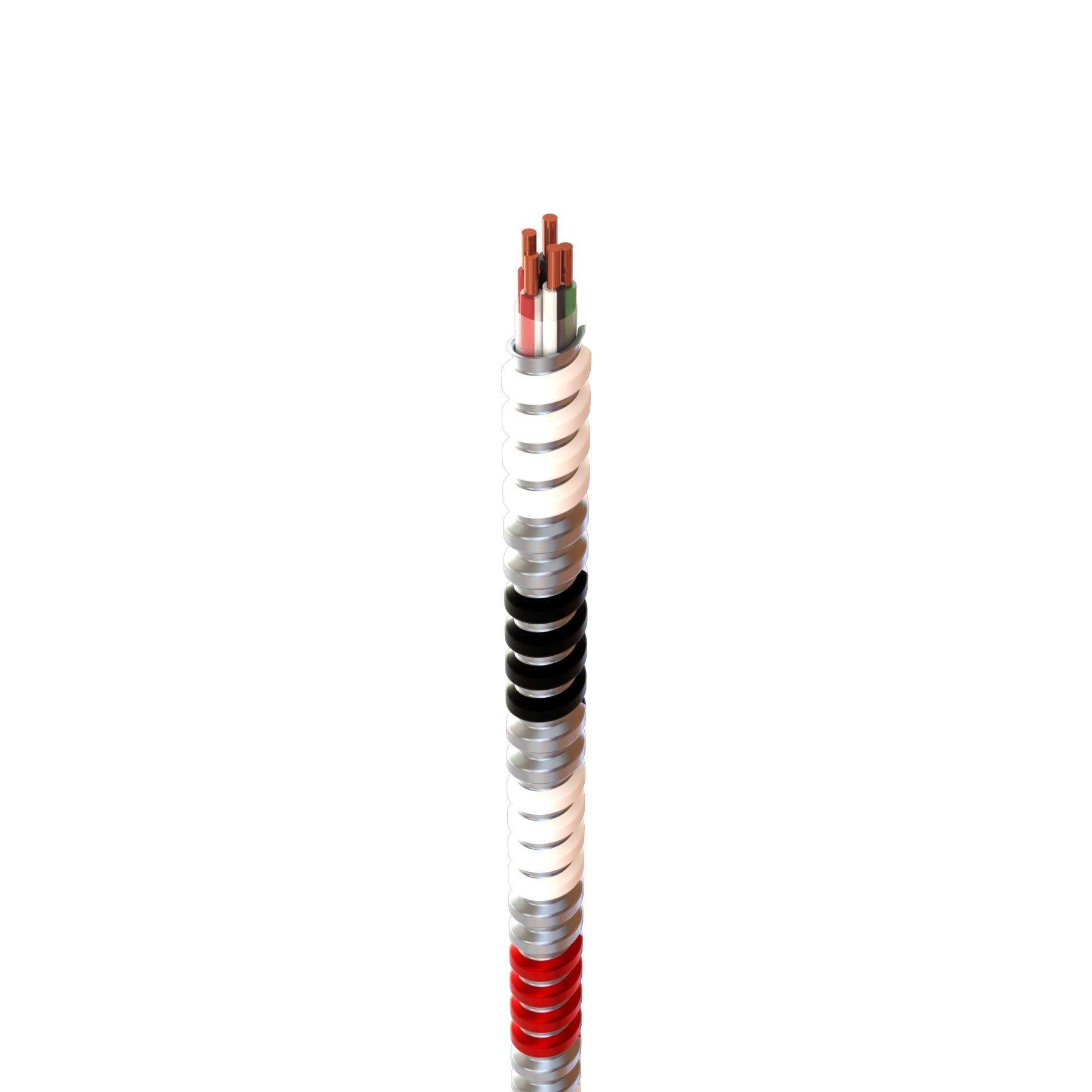

3907-42-00 - 10-2/10-2/10-1 BK RD WE/BK WE/RD GN MC Plus®, White Interlocked Galvanized Steel Armor with phase ID, 250' Coil, Type MC - Neutral Per Phase
Description
Specifications
326lb
0.67mm
0.67mm
3000mm
For branch circuit wiring for a variety of power distribution systems from lighting, to devices and receptacles, branch circuit to computers and other electronic equipment where additive harmonics currents from non-linear switching loads may be present
AFC CABLE SYSTEMS
USA
US
00077680259615
CABLE PH PER NEUT 600VAC 4 SOL COPPER
Technically equivalent and economically superior to traditional raceway and wire installations
Eliminates shared neutrals and addresses harmonic distortions in power distribution systems
Decreases the time it takes to identify a faulty circuit because only the affected single-phase breaker will trip thus, allowing the rest of the electrical systems to continue to operate and reducing the length of unnecessary outages
ColorSpec ID/Color-Trak ID System
White steel armor with phase and neutral ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type
Redundant Grounding
Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request
Atkore
0.6700
IN
3000.0000
IN
1
326.0000
LB
0.6700
IN
General Wire
STEEL ARMOR CU CONDUCTORS
Conductor Size
AWG
10
Type
Type MC Traditional
Voltage Rating
V AC
600
Conductor Type
Solid Copper
Insulation Material
THHN/THWN
Jacket Material
Interlocked Galvanized Steel Strip
Length
Ft
250
Number of Conductors
4
Outside Diameter
IN
0.667
Packaging Type
Coil
Temperature Rating
deg C
90
