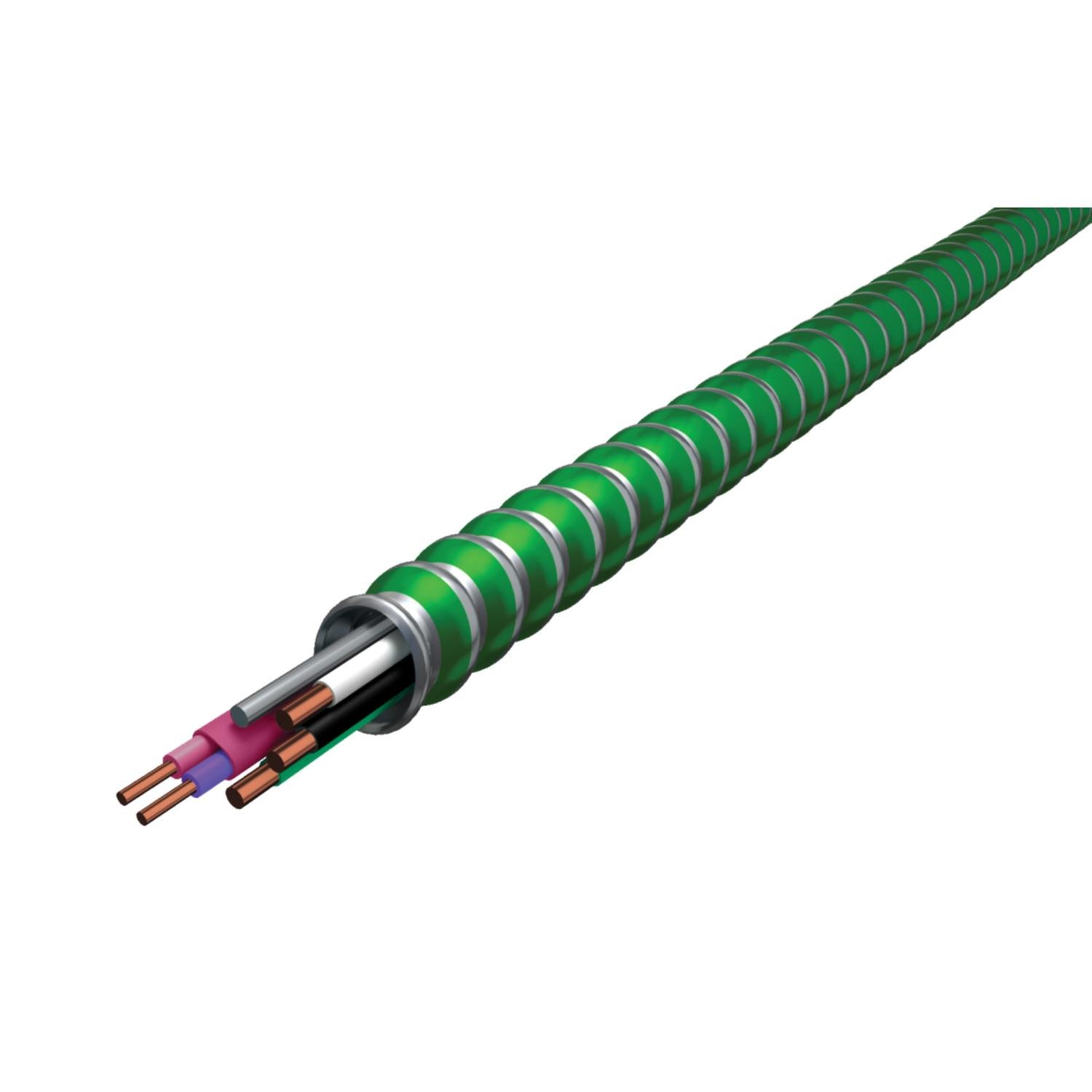

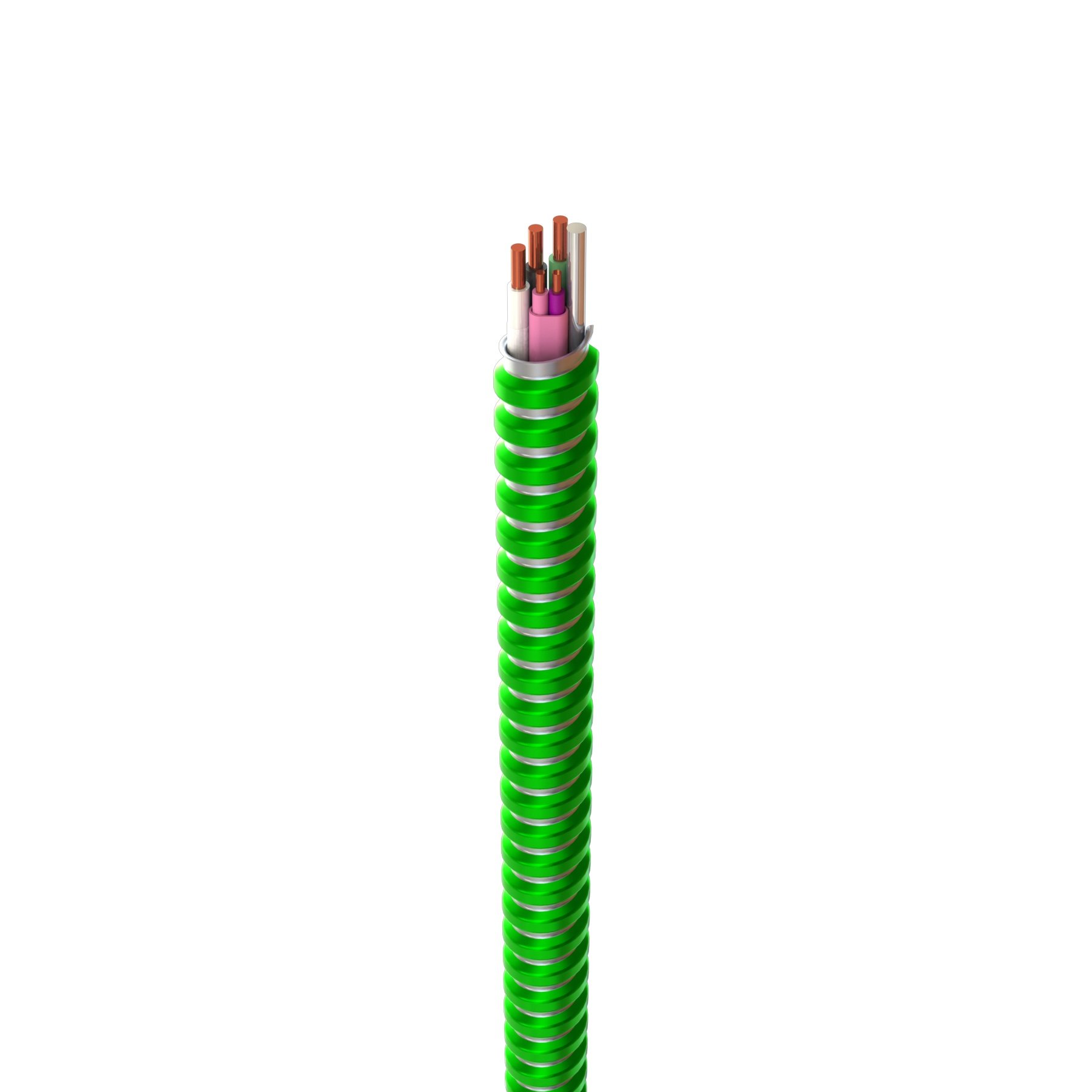

AFC LH04-42-L01 12/2 HCF
Description
Specifications
For applications requiring isolated, redundant, or dedicated grounding conductors
Atkore
USA
US
ALUM AR C C COIL 600V 2 16AWG
Technically equivalent and economically superior to traditional raceway and wire installations
Wrap Free
Protective polypropylene covering is extruded directly over the THHN insulation to eliminate the need for an overall assembly tape wrapping the twisted conductors reducing installation time and general waste on the jobsite
Armor plus full-sized aluminum ground wire is the equipment grounding mean, second equipment grounding means is full sized insulated copper grounding conductor
One Pull
Combines power and control circuits under a single interlocked armor
Save up to 30% on labor and installation costs compared to the traditional installation method of running power and the control circuit afterward
Manufactured with purple and pink control conductors covered with an overall pink PVC jacket for easy identification
Save Energy and Money
Reduce consumption with daylight harvesting dimmable lighting
System Compatible with 0-10 V DC solid state lighting control systems and digital signal
Atkore
1
General Wire
Alum Interlocked Alum Armor Cables
Conductor Size
AWG
16
Voltage Rating
V
600
Conductor Type
Solid Copper
Insulation Material
THHN
Length
Ft
250
Number of Conductors
2
Outside Diameter
IN
0.708
Packaging Type
Coil
Temperature Rating
deg C
90
Type
TYPE MC-PCS
