Atkore

PL60R60-06 - 16-2 Solid TSPJ (Black, Red) 1Power Limited Fire Alarm Cable

Category Steel Armor CU Conductors

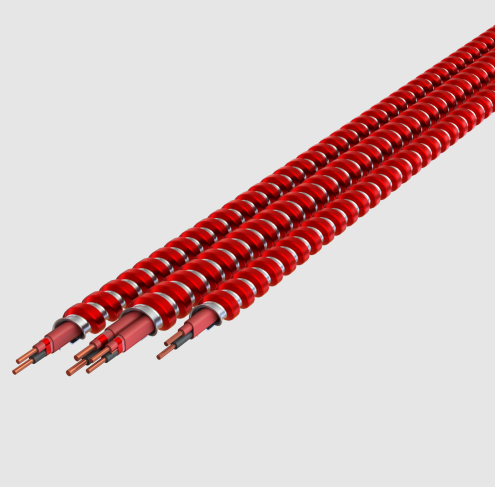

Picture of PL60R60-06 - 16-2 Solid TSPJ (Black, Red) 1Power Limited Fire Alarm Cable
Atkore

PL60R60-06 - 16-2 Solid TSPJ (Black, Red) 1Power Limited Fire Alarm Cable

Item Code: 1039041
Category Steel Armor CU Conductors
Manufacturer Ref PL60R60-06
Minimum order quantity 1000

Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Atkore's Power Limited Fire Alarm Cable is mechanically protected for easy installation in commercial applications, reducing callbacks and labor time. The cable is fully plenum rated for all installations up to 300 volts. The cable assembly cores consist of a single or composite of multiple shielded or unshielded Red Plenum-Rated Low Smoke PVC jacketed twisted pairs. Atkore's Power Limited Fire Alarm galvanized steel interlocked armor is color-coded RED for quick identification.

Specifications

Brand

General Wire

Category

STEEL ARMOR CU CONDUCTORS

Conductor Size

16 AWG

Conductor Type

Solid Copper

Length

1000 ft

Number of Conductors

2

Outside Diameter

0.445 in

Packaging Type

Reel

Temperature Rating

-10 to 75 deg C

Type

Type FPLP

Voltage Rating

300 V
