AFC Cable Systems

2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1

Category CU Interlocked Steel Armor Cables - Teck

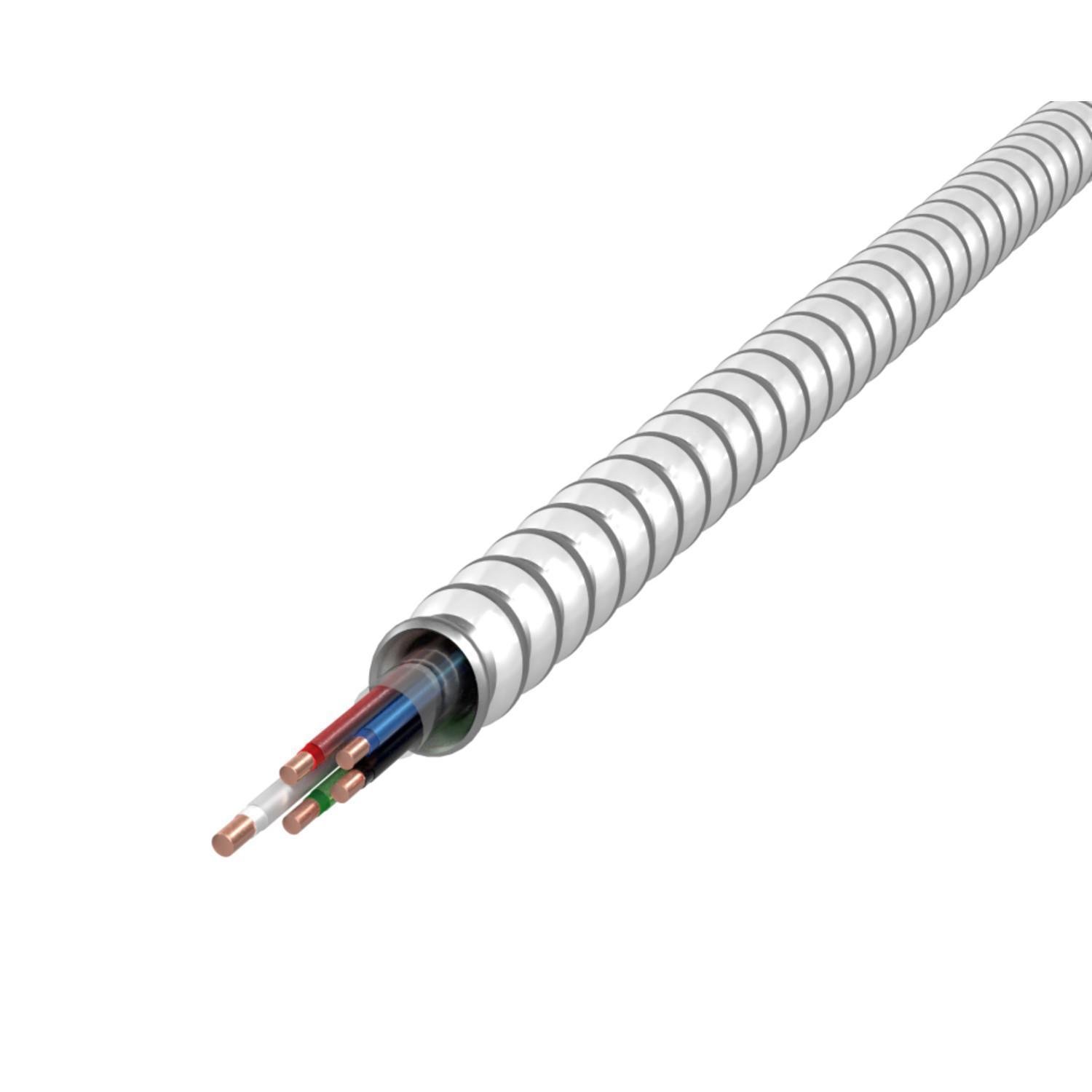

Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1 Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1
Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1 Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1
Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1 Picture of 2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1
AFC Cable Systems

2911-60-00 - AFC 2911-60-00 12-3/12-3/12-2 SNC 1

Item Code: 522312
Category CU Interlocked Steel Armor Cables - Teck
Manufacturer Ref AFC2911
Minimum order quantity 1000

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Super Neutral Cable® is an updated version of Atkore's Home Run Cable, introduced in the late 1980s. Its oversized neutral conductor minimizes the effects of harmonic currents from non-linear loads. The cable meets UL Standard 1569 and NEC 330, has no conductor count limit, and is compatible with most modular office furniture. It features polypropylene assembly tape, an insulated green grounding conductor, and galvanized steel armor (aluminum available upon request). For a modern type MC homerun cable with a Neutral per-phase design, see Atkore's MC Plus product line.

Specifications

Weight

344.2lb

Height

10mm

Width

24mm

Length

288mm

AD Brand (Description)

AFC CABLE SYSTEMS

AD Country

USA

AD Country Of Origin

US

AD Gtin

00077680131645

AD Invoice Description

CABLE PH PER NEUT 600VAC 6 SOL COPPER

AD Item Features 01

Cable System

AD Item Features 02

Technically equivalent and economically superior to traditional raceway and wire installations

AD Item Features 03

Features oversized neutral conductor designed to minimize the effects of harmonic currents on the neutral conductors generated by non-linear loads

AD Item Features 04

Redundant Grounding

AD Item Features 05

Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request

AD Manufacturer (Description)

Atkore

AD Package Height

10.0000

AD Package Height UOM

IN

AD Package Length

288.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

344.2000

AD Package Weight UOM

LB

AD Package Width

24.0000

AD Package Width UOM

IN

Brand

General Wire

Category

CU Interlocked Steel Armor Cables - Teck

Spec 1 Attribute

Conductor Size

Spec 1 Attribute UOM

AWG

Spec 1 Attribute Value

12

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

90

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type MC

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 2 Attribute

Conductor Type

Spec 2 Attribute Value

Solid Copper

Spec 3 Attribute

Insulation Material

Spec 3 Attribute Value

THHN/THWN

Spec 4 Attribute

Jacket Color

Spec 4 Attribute Value

Painted White

Spec 5 Attribute

Jacket Material

Spec 5 Attribute Value

Interlocked Galvanized Steel Strip

Spec 6 Attribute

Length

Spec 6 Attribute UOM

Ft

Spec 6 Attribute Value

1000

Spec 7 Attribute

Number of Conductors

Spec 7 Attribute Value

6

Spec 8 Attribute

Outside Diameter

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

0.659

Spec 9 Attribute

Packaging Type

Spec 9 Attribute Value

Reel
