Atkore

2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1

Category CU Interlocked Steel Armor Cables - Teck

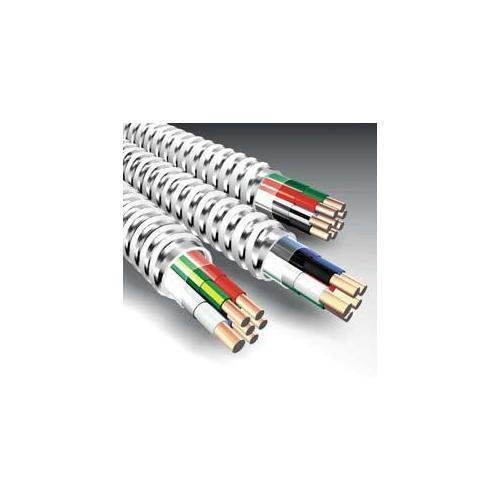

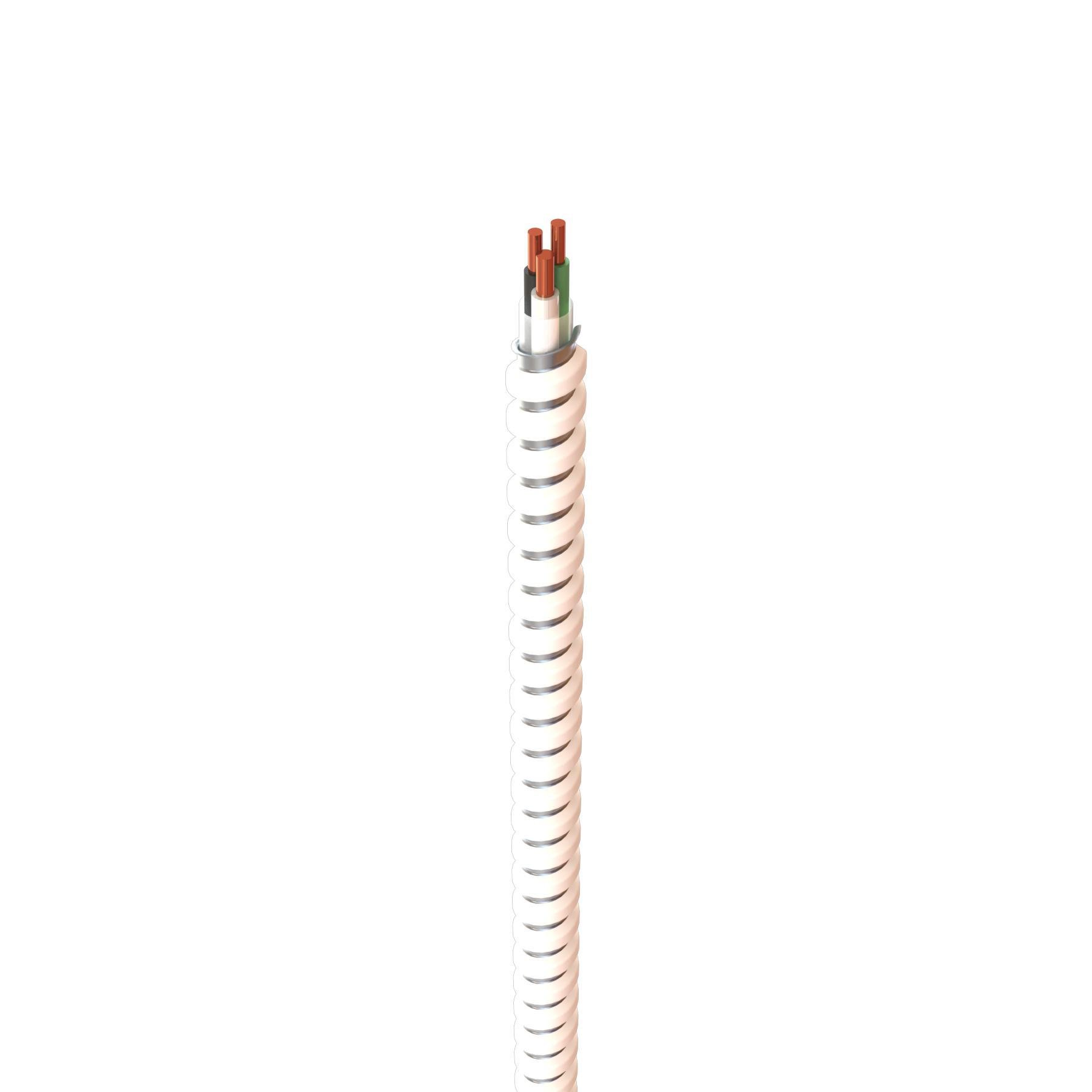

Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1 Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1
Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1 Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1
Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1 Picture of 2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1
Atkore

2918-60-00 - AFC 2918-60-00 12-4/10-2/12-2 SNC 1

Item Code: 12768
Category CU Interlocked Steel Armor Cables - Teck
Manufacturer Ref AFC2918
Minimum order quantity 1000

Catalog
Instruction Installation Manual
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Super Neutral Cable® is an updated version of Atkore's Home Run Cable, introduced in the late 1980s. Its oversized neutral conductor minimizes the effects of harmonic currents from non-linear loads. The cable meets UL Standard 1569 and NEC 330, has no conductor count limit, and is compatible with most modular office furniture. It features polypropylene assembly tape, an insulated green grounding conductor, and galvanized steel armor (aluminum available upon request). For a modern type MC homerun cable with a Neutral per-phase design, see Atkore's MC Plus product line.

Specifications

Weight

398lb

Height

10mm

Width

24mm

Length

288mm

Brand

General Wire

Category

CU Interlocked Steel Armor Cables - Teck

Conductor Size

12 AWG Phase/10 AWG Neutral

Conductor Type

Solid Copper

Insulation Material

THHN/THWN

Length

1000 ft

Number of Conductors

6

Outside Diameter

0.66 in

Packaging Type

Reel

Temperature Rating

90 deg C

Type

Type MC Oversized Neutral

Voltage Rating

600 V
