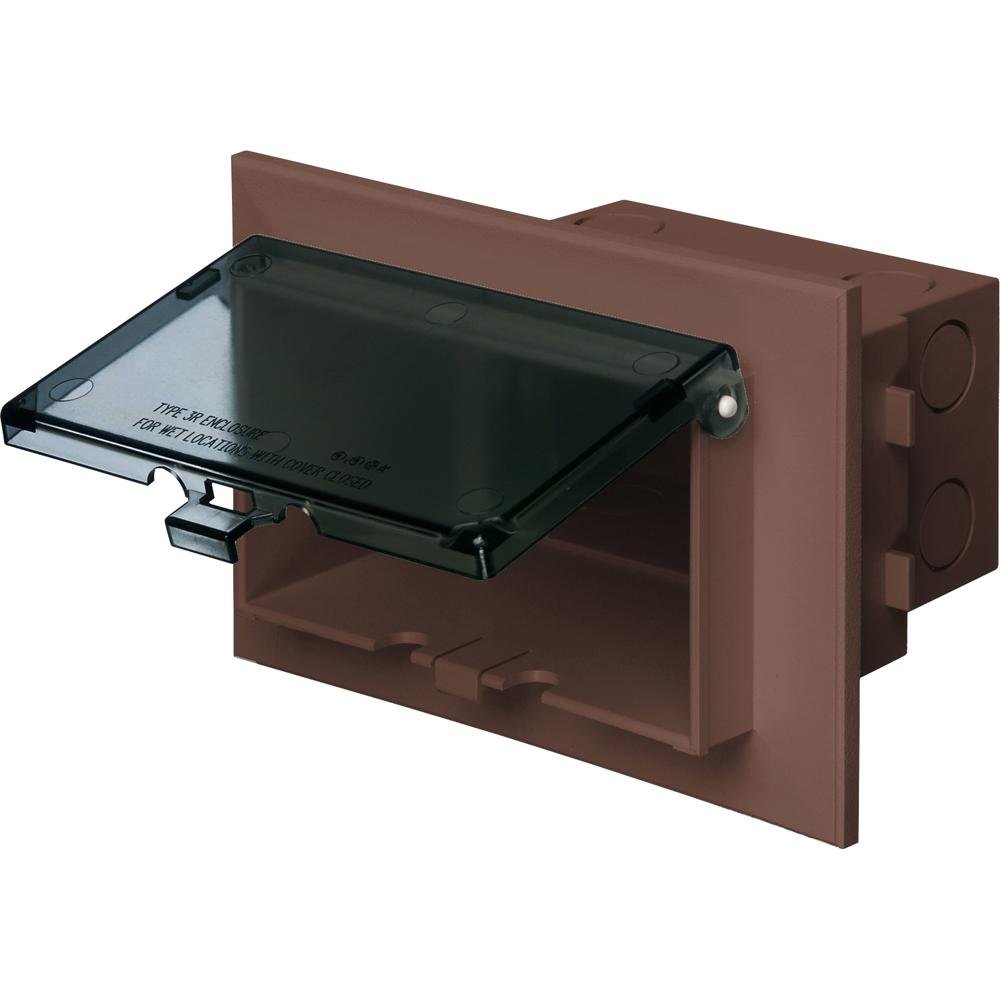

DBHB1BRC - Low profile inbox for new brick construction. Recessed electrical box with weather proof in use cover. Horizontal. Brown with clear cover.
Description
Specifications
1.1lb
5.16mm
7.19mm
4.93mm
For new brick construction
Arlington Industries
USA
US
Weatherproof While-In-Use Clear Cover
BOX ELECTRICAL PLSTC 22CU-IN 1 NEMA 3R H
InBox™ one-piece assembly replaces the installation of an electrical box and siding block and bubble cover assembly
Built-in anchor tabs seat InBox™ sleeve into mortar for super secure installation
Installs in the wall, so less of It shows outside
Installed, disposable, mud cover extends all the way over the flange, providing maximum protection during construction
Cover is removable for easier device installation
No gaskets required
UV Rated Plastic
Arlington
5.1600
IN
4.9300
IN
1
1.1000
LB
7.1900
IN
Arlington Industries
Bx - Non Metallic Cables - S.E.C. - Liquidtight - Flex. Fittings
Capacity
cu-in
22
Series
DB Series
Type
1-Piece Low Profile
Color
Brown
Dimensions
4.934 in L x 7.186 in W x 5.159 in D
Enclosure Type
NEMA 3R
Finish
Painted/Textured
Material
Plastic
Mounting Orientation
Horizontal
Mounting Type
Ceiling
Number of Gangs
1
