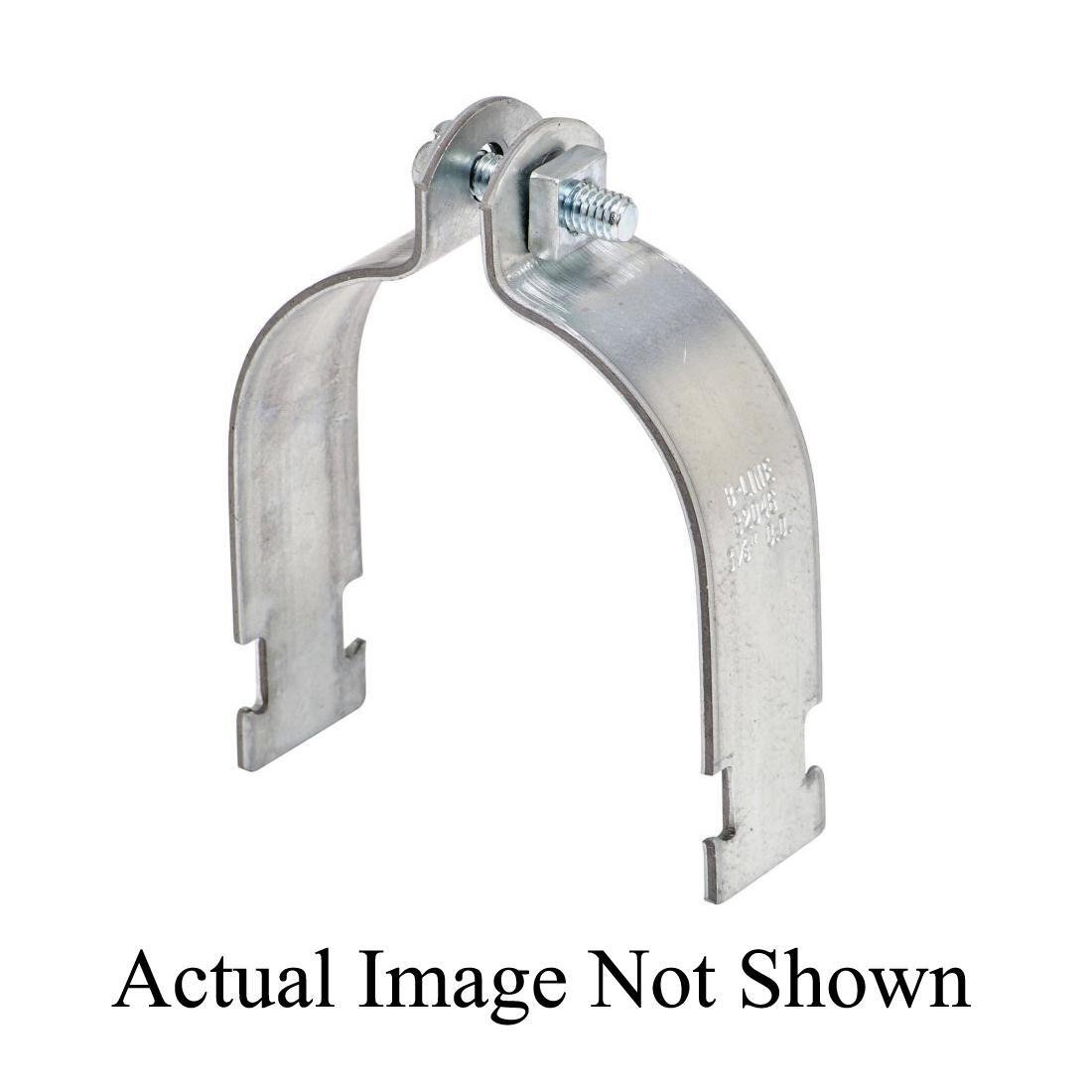

B2015PA-ZN - Eaton B-Line series strut pipe clamps and accessories, .0994" height, 5.843" length, 1.25" width, Steel, Pre-assembled combination recess hex head screw, Pipe or conduit clamps, Electro-plated zinc
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.44lb
Height
1.25mm
Width
1.25mm
Length
5.84mm
AD All Features
Safety factor of 5
AD Application

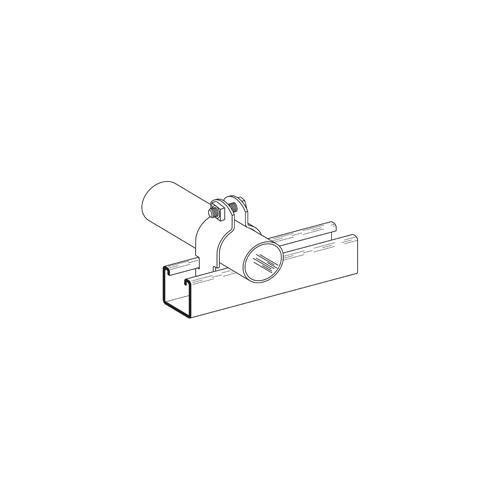

For 4Dimension™ strut systems/bolted framing
AD Brand (Description)
B-Line
AD Country
USA
AD Country Of Origin
US
AD Includes
Combination Recess Hex Head Machine Screw, Square Nut
AD Invoice Description
CLAMP PIPE 3IN STL 12GA CHANNEL ZINC PLD
AD Item Features 01
Safety factor of 5
AD Item Features 02
33000 psi minimum yield
AD Item Features 03
800 lb vertical, 125 lb transverse/longitude load capacity
AD Manufacturer (Description)
Eaton
AD Package Height
1.2500
AD Package Height UOM
IN
AD Package Length
5.8400
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.4400
AD Package Weight UOM
LB
AD Package Width
1.2500
AD Package Width UOM
IN
Brand
B-Line
Category
CHANNEL & STRUT FITTINGS
Spec 1 Attribute
Conduit Size
Spec 1 Attribute UOM
IN
Spec 1 Attribute Value
3
Spec 2 Attribute
Finish
Spec 2 Attribute Value
Zinc Plated
Spec 3 Attribute
Material
Spec 3 Attribute Value
Steel
Spec 4 Attribute
Mounting Type
Spec 4 Attribute Value
Channel
Spec 5 Attribute
Series
Spec 5 Attribute Value
B2000
Spec 6 Attribute
Suitable For Use With
Spec 6 Attribute Value
Rigid Conduit
Spec 7 Attribute
Thickness
Spec 7 Attribute UOM
Ga
Spec 7 Attribute Value
12
Spec 8 Attribute
Type
Spec 8 Attribute Value
2-Piece
