PS-125-150-WT-2 - PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.125" Dia x 0.75" W, Roll of 5000 Each
Description
Specifications
3.22lb
11.1mm
10.9mm
5.3mm

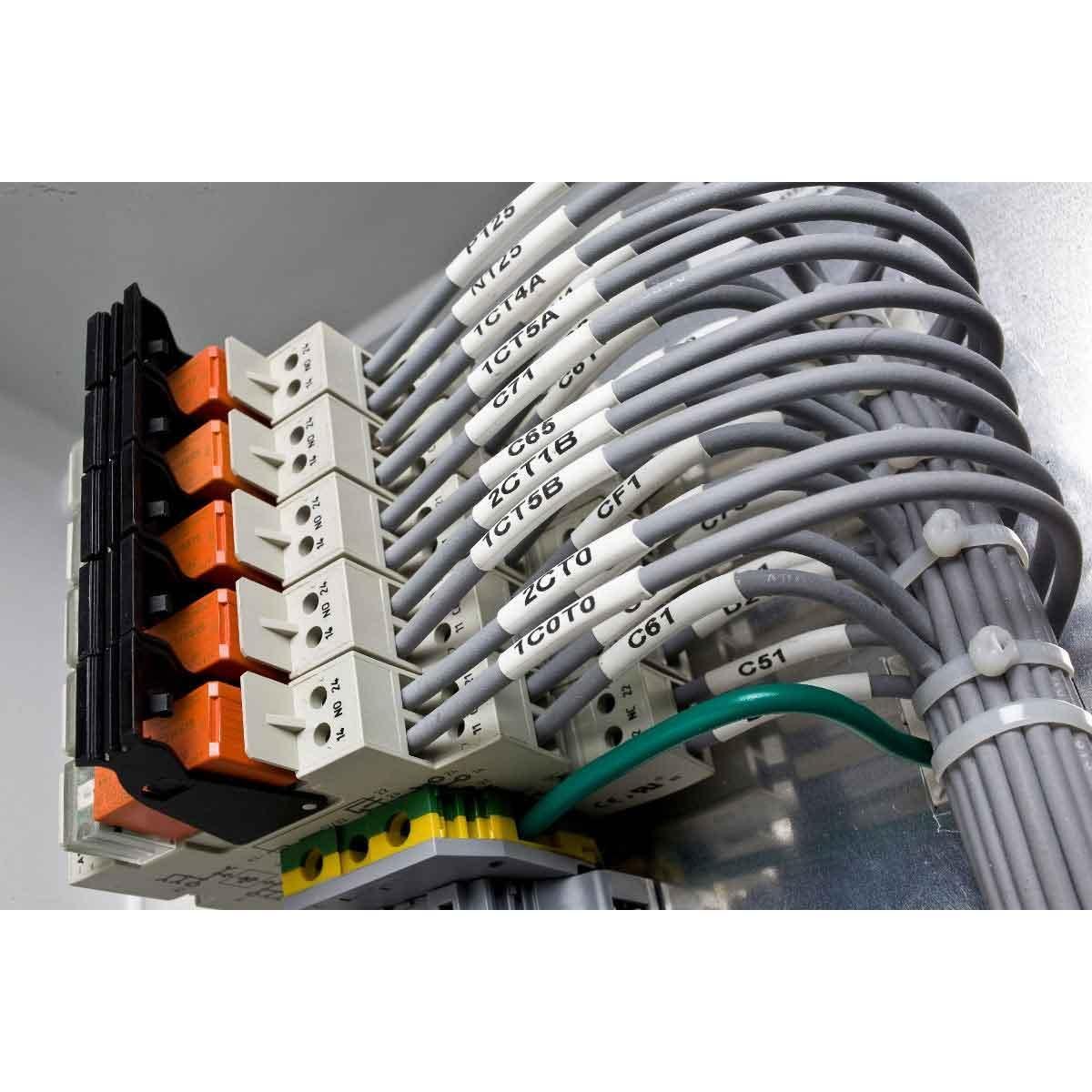

Panel Identification, Cable and Wire Marking Applications
Brady
USA
US
00662820022183
SLEEVE MKR W 22 TO 16AWG 3/4IN 3/4IN

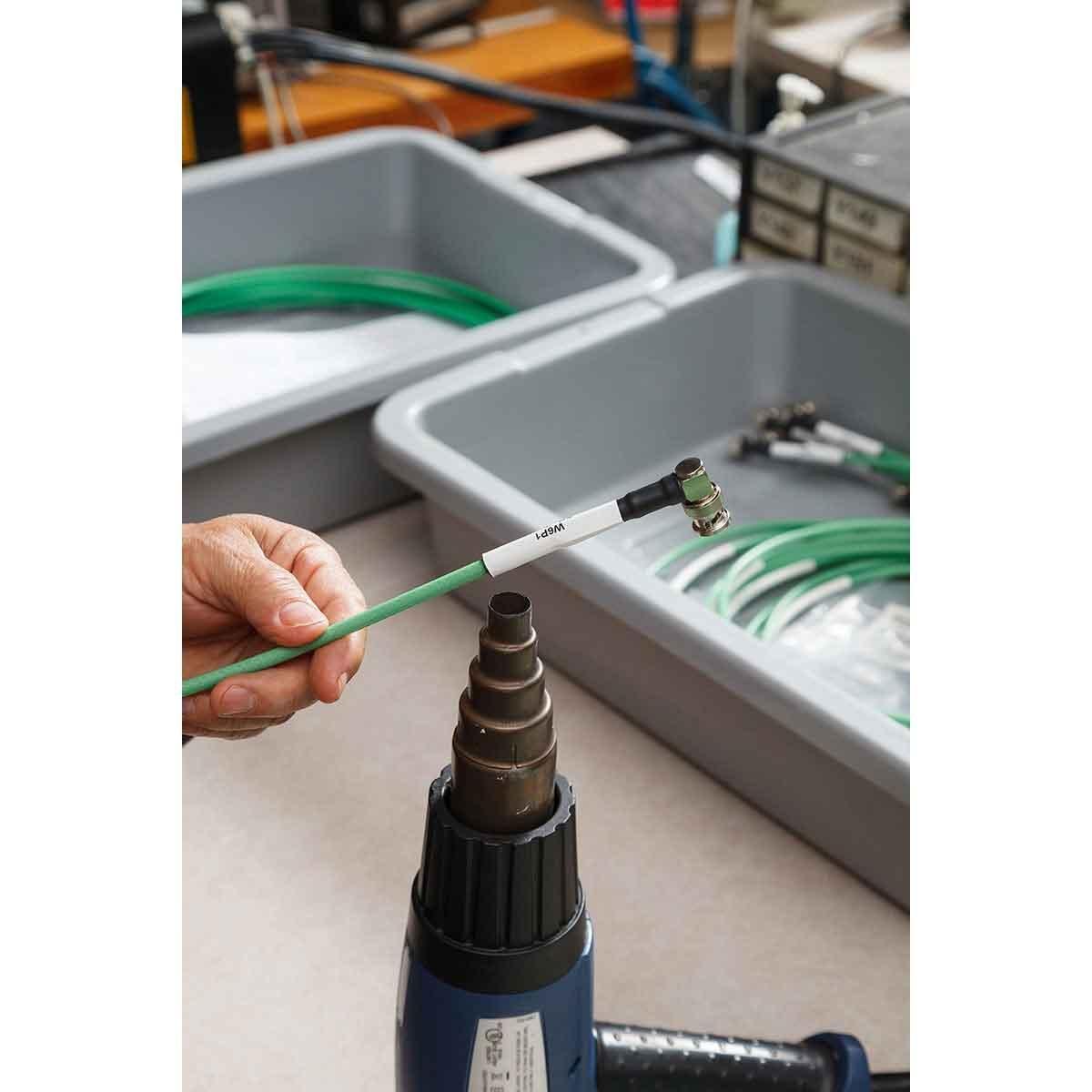

Heat shrinkable, with 3:1 shrink ratio, self-extinguishing, made of B-342 polyolefin material
Chemical, corrosion, fade, humidity, smear, smudge, UV, weather-resistant, full circle insulating sleeves
Thermal transfer printer technology
Matte Finish

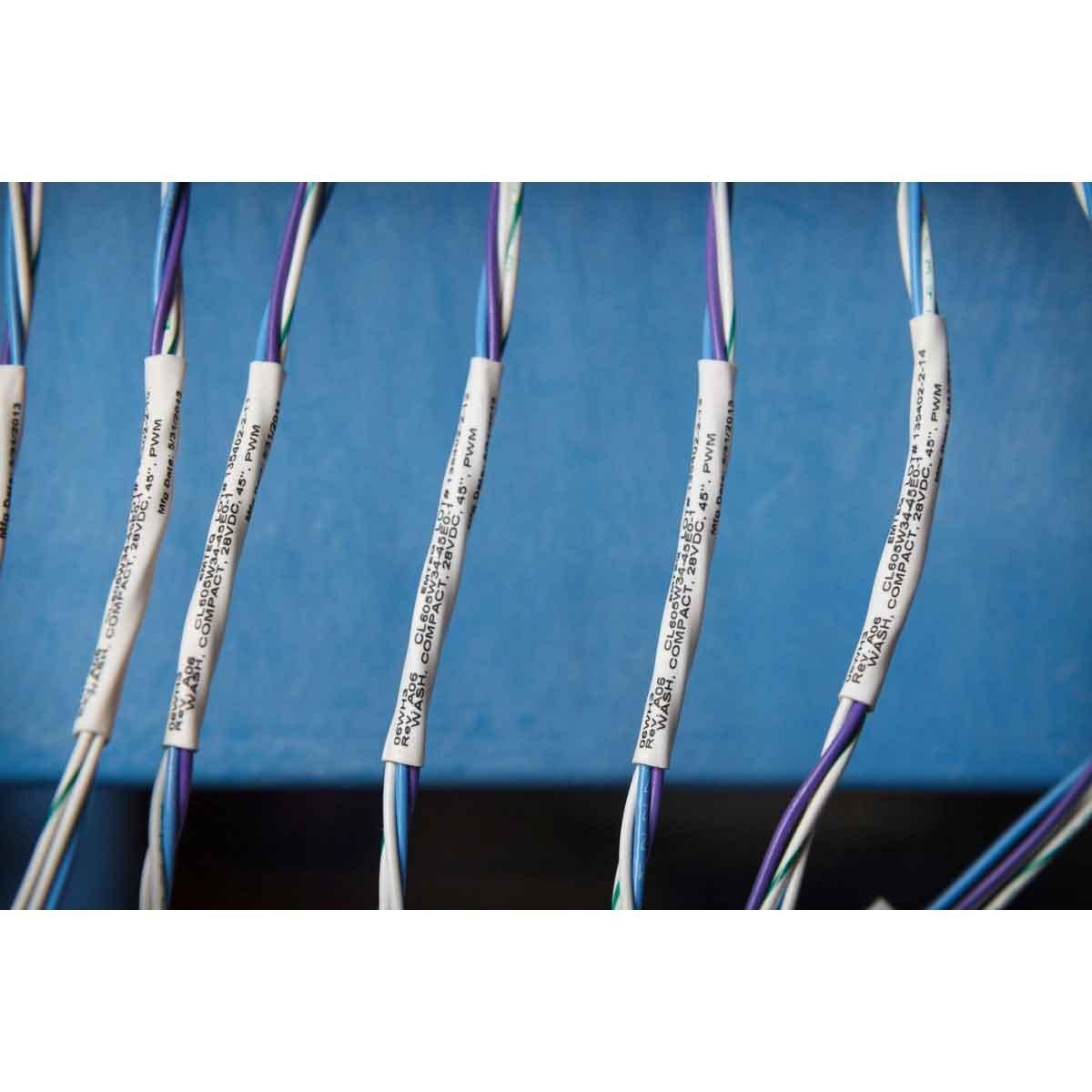

Brady PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification

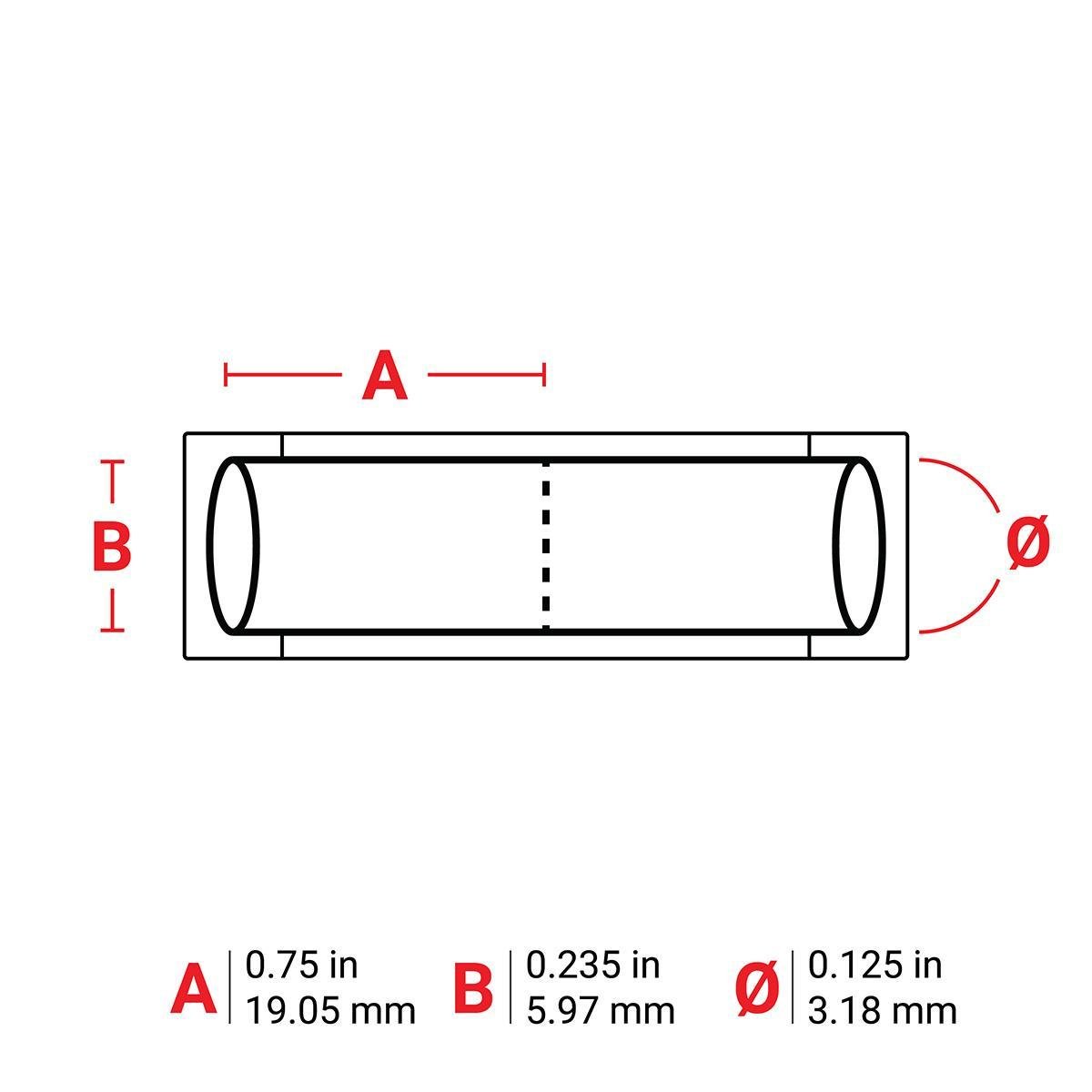

1/8 in Dia as supplied
0.235 in H
Cold resistant and flame-retardant with an operating temperature of -67 deg F to 275 deg F (-55 deg C to 135 deg C)
Fade-resistant and smudge-proof for superior aesthetic appearance
Brady Worldwide
11.1000
IN
5.3000
IN
1
3.2200
LB
10.9000
IN
BradyВ® PermaSleeveВ® PS-125-150 1-Sided Heat Shrink Wire Marker Sleeve
Brady
TAPE, MARKERS, SOLDERING & INSULATING MATERIALS
Color
White
Length
IN
4-Mar
Material
B-342 Polyolefin
Suitable For Use With
Brady® IP® Series Label Printer and BradyPrinter™ PR Plus Series Label Printer
Temperature Rating
deg F
-94 to 267
Type
1-Sided Heat Shrink
Width
IN
4-Mar
Wire Size
AWG
22 To 16
