Bridgeport

565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch

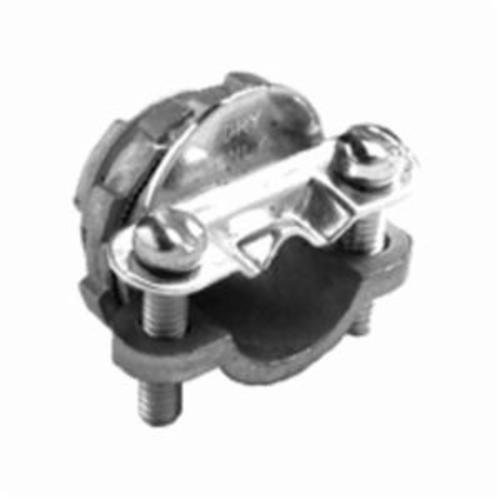

Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch
Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch
Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch Picture of 565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch
Bridgeport

565-DC2 - Connector, Strap, Two Screw, Zinc Die Cast, Size K.O. 1/2 Inch

Item Code: 1398
Manufacturer NSI INDUSTRIES
Manufacturer Ref 565-DC2

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Use Bridgeport’s 565-DC2 3/8" Two Screw Strap Connector to connect MC cable to an electrical box or enclosure. The 565-DC2 is also CSA listed for ACG90. Use this connector with 14/2 to 10/3 (.38" to .53") MC cable and 14/2 to 10/3 (.43" to .53") ACG90 cable when connecting to a 1/2" knockout. Zinc construction offers excellent corrosion resistance in harsh environments, as well as a precise fit and finish. Additionally, all Bridgeport fittings are NRTL listed and meet the bonding/grounding requirements of UL 514B.

Specifications

Weight

5.04lb

Width

5.5mm

Length

6.5mm

AD Application

For connecting 14/2 to 10/3 AWG MC/MCI-A/HCFMCI-A armored or metal clad cable to box or enclosure

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

US

AD EAN

0781747155658

AD Gtin

00781747155658

AD Invoice Description

CONNECTOR CONDUIT 1/2IN 0.38 TO 0.53IN

AD Item Features 01

Zinc Body, Corrosion resistant die cast zinc connectors have a precise fit and finish for a trouble-free performance and ease of assembly

AD Item Features 02

Quality Finishing, Bridgeport die cast zinc fittings are burnished to make the surface of the fittings brighter and remove any scaling or discoloration

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

6.5000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

5.0400

AD Package Weight UOM

LB

AD Package Width

5.5000

AD Package Width UOM

IN

Brand

Bridgeport Fittings

Spec 1 Attribute

Angle

Spec 1 Attribute UOM

deg

Spec 1 Attribute Value

180

Spec 2 Attribute

Cable Openings

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.38 to 0.53

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1-5/16 in L x 15/16 in W

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Ball Burnished/Mirror Smooth

Spec 5 Attribute

Material

Spec 5 Attribute Value

Die Cast Zinc

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

14/2 to 10/3 AWG MC/MCI-A/HCFMCI-A Cable

Spec 7 Attribute

Trade Size

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

2-Jan
