Bridgeport

595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated

Category Miscellaneous

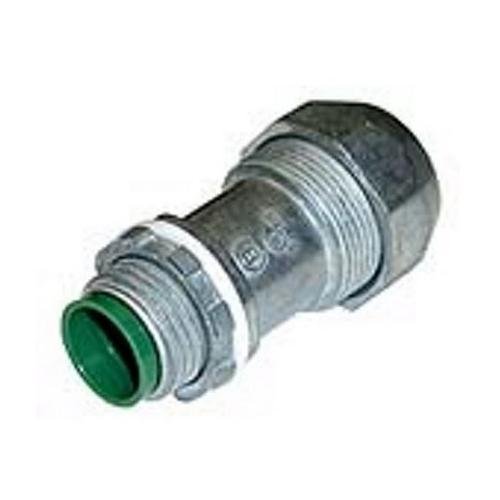

Picture of 595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated Picture of 595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated
Picture of 595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated Picture of 595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated
Bridgeport

595-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 3/8", Insulated

Item Code: 1137768
Category Miscellaneous
Manufacturer NSI INDUSTRIES
Manufacturer Ref 595DCI2
Minimum order quantity 15

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Use Bridgeport’s 595-DCI2 Mighty-Seal® 3/8" Insulated PVC Jacketed MC and TECK Cable Connector to join PVC jacketed MC cable (parking deck/lot cable) or TECK cable to an electrical box or enclosure. The heavy-duty, reinforced die cast zinc body is both durable and corrosion resistant. To connect, simply strip 7/8" to 1" of the jacket from the end of the cable. Then, loosen the nut and push the cable into the connector until the cable reaches the end stop. Retighten the nut for a rain-tight connection. Knockout gasket provides a positive seal at a 1/2" knockout (K.O). NPT tapered threads permit installation in threaded boxes and a polyethylene gasket creates a concrete-tight seal. Additionally, this connector is insulated, protecting inner wiring from abrasion damage and up to a temperature of 105°C. Use this connector with 14/2 to 10/3 AWG jacketed MC/TECK cables. NEMA TYPE 2, 3, 3R, 4. DC2C versions are also NEMA TYPE 4X.

Specifications

Weight

0.19

AD Application

For connecting PVC jacketed MC cable or TECK cable to box or enclosure

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

CN

AD EAN

0781747165954

AD Gtin

00781747165954

AD Invoice Description

CONNECTOR CBL 3/8IN 1 0.5 TO 0.61IN

AD Item Features 01

Simply strip 7/8 to 1 in of jacket from end of cable, loosen nut and push cable into connector until cable reaches end stop

AD Item Features 02

Tighten nut for raintight connection

AD Item Features 03

Knockout gasket provides positive seal at 1/2 in knockout

AD Item Features 04

NPT tapered threads permits installation in threaded boxes

AD Item Features 05

Time saver - ideal for parking decks/lot cable or teck cable to box or enclosure

AD Manufacturer (Description)

NSi Industries

AD Package Quantity

1

AD Package Weight

0.1900

AD Package Weight UOM

LB

Brand

Bridgeport Fittings

Spec 1 Attribute

Angle

Spec 1 Attribute UOM

deg

Spec 1 Attribute Value

180

Spec 10 Attribute

Trade Size

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

8-Mar

Spec 11 Attribute

Type

Spec 11 Attribute Value

Concrete Tight Raintight

Spec 2 Attribute

Cable Openings

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.5 to 0.61

Spec 3 Attribute

Cable Type

Spec 3 Attribute Value

PVC/Jacketed MC/TECK90 Insulated

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Tapered NPT

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1-7/32 in W

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Ball Burnished/Mirror Smooth

Spec 7 Attribute

Material

Spec 7 Attribute Value

Die-Cast Zinc

Spec 8 Attribute

Number of Conductors

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
