Bridgeport

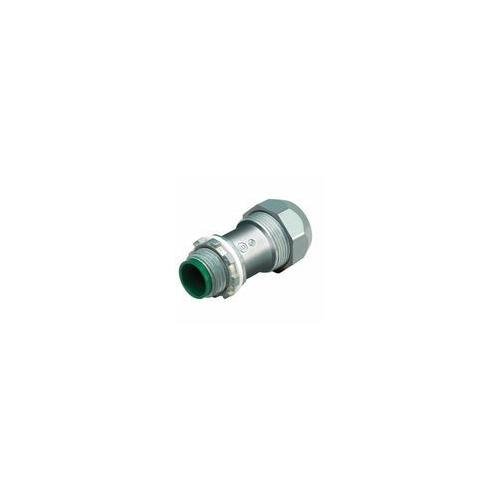

596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated

Category Miscellaneous
Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated
Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated
Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated Picture of 596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated
Bridgeport

596-DCI2 - Mighty-Seal® PVC Jacketed MC/TECK Cable Connector 1/2", Insulated

Item Code: 1259705
Category Miscellaneous
Manufacturer NSI INDUSTRIES
Manufacturer Ref 596-DCI2
Minimum order quantity 15

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Use Bridgeport’s 596-DCI2 Mighty-Seal® 1/2" Insulated PVC Jacketed MC and TECK Cable Connector to join PVC jacketed MC cable (parking deck/lot cable) or TECK cable to an electrical box or enclosure. The heavy-duty, reinforced die cast zinc body is both durable and corrosion resistant. To connect, simply strip 7/8" to 1" of the jacket from the end of the cable. Then, loosen the nut and push the cable into the connector until the cable reaches the end stop. Retighten the nut for a rain-tight connection. Knockout gasket provides a positive seal at a 1/2" knockout (K.O). NPT tapered threads permit installation in threaded boxes and a polyethylene gasket creates a concrete-tight seal. Additionally, this connector is insulated, protecting inner wiring from abrasion damage and up to a temperature of 105°C. Use this connector with 12/3 to 10/3 AWG jacketed MC/TECK cables. NEMA TYPE 2, 3, 3R, 4. DC2C versions are also NEMA TYPE 4X.

Specifications

Weight

2.87

Width

4.75

Length

5.25

AD All Features

1/2 in PVC jacketed MC/TECK cable connector

AD Application

For connecting 10/4 to 8/3 AWG PVC MC cable to box or enclosure and JMC/TECK90 cables

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

CN

AD EAN

0781747165961

AD Gtin

00781747165961

AD Invoice Description

CONNECTOR CBL 1/2IN 1 0.61 TO 0.69IN

AD Item Features 01

1/2 in PVC jacketed MC/TECK cable connector

AD Item Features 02

10/4 to 8/3 AWG conductor range

AD Item Features 03

Concrete Tight/Raintight

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

5.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.8700

AD Package Weight UOM

LB

AD Package Width

4.7500

AD Package Width UOM

IN

Brand

Bridgeport Fittings

Spec 1 Attribute

Angle

Spec 1 Attribute UOM

deg

Spec 1 Attribute Value

180

Spec 10 Attribute

Trade Size

Spec 10 Attribute UOM

IN

Spec 10 Attribute Value

2-Jan

Spec 2 Attribute

Cable Openings

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.61 to 0.69

Spec 3 Attribute

Cable Type

Spec 3 Attribute Value

PVC MC/JMC/TECK90

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

PVC/Jacketed MC/TECK90 Insulated

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1-9/32 in Dia

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Ball Burnished/Mirror Smooth

Spec 7 Attribute

Material

Spec 7 Attribute Value

Die-Cast Zinc

Spec 8 Attribute

Number of Conductors

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

90
