Bridgeport

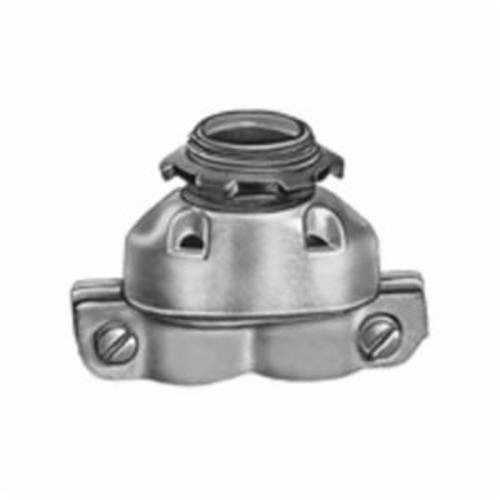

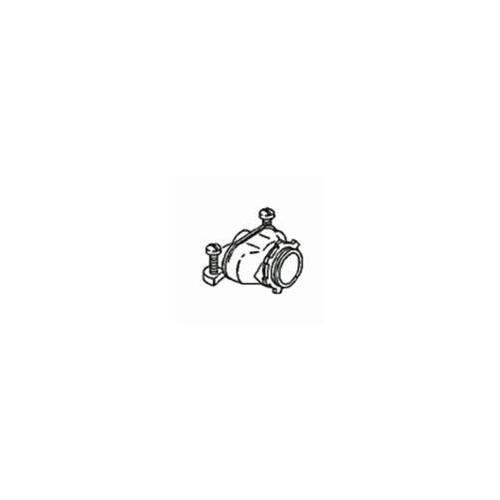

630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type

Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type
Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type
Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type Picture of 630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type
Bridgeport

630-DC2 - Connector, Duplex, Zinc Die Cast, Flex Size 3/8 Inch, Strap Type

Item Code: 734592
Manufacturer NSI INDUSTRIES
Manufacturer Ref 630-DC2

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Use Bridgeport’s 630-DC2 3/8" Die Cast Zinc Duplex Connector to join two individual lengths of flexible metal conduit or armored cable to an electrical box or enclosure using a single knockout. Die cast zinc connectors feature a precise fit, finish and excellent corrosion resistance for use in harsh environments. Bridgeport 630-DC2 duplex connector is suitable for flex trade size 3/8" flexible metal conduit and installs into a 1/2" knockout. To install, simply insert the conduit or cable into the connector and tighten down the two-screw strap for a secure fit.

Specifications

Weight

0.12lb

AD All Features

Single cable opening

AD Application

Used to connect flexible metal steel conduit to a box or enclosure

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

US

AD EAN

0781747156303

AD Gtin

00781747156303

AD Invoice Description

CONNECTOR CONDUIT 3/8IN 0.43 TO 0.61IN

AD Item Features 01

Single cable opening

AD Item Features 02

0.61 in Dia throat

AD Item Features 03

Furnished with 2-way Phillips/Slotted Head Screw

AD Item Features 04

Strap type connector

AD Manufacturer (Description)

NSi Industries

AD Package Quantity

1

AD Package Weight

0.1200

AD Package Weight UOM

LB

Brand

Bridgeport Fittings

Spec 1 Attribute

Angle

Spec 1 Attribute UOM

deg

Spec 1 Attribute Value

180

Spec 2 Attribute

Cable Openings

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.43 to 0.61

Spec 3 Attribute

Diameter

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

0.61

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

1-3/16 in L x 2-3/16 in W x 15/16 in D

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Ball Burnished/Mirror Smooth

Spec 6 Attribute

Material

Spec 6 Attribute Value

Die Cast Zinc

Spec 7 Attribute

Suitable For Use With

Spec 7 Attribute Value

Armored Cable and 3/8 in Flexible Metal Conduit

Spec 8 Attribute

Trade Size

Spec 8 Attribute UOM

IN

Spec 8 Attribute Value

8-Mar

Spec 9 Attribute

Type

Spec 9 Attribute Value

Duplex Non-Insulated Throat
