Bridgeport

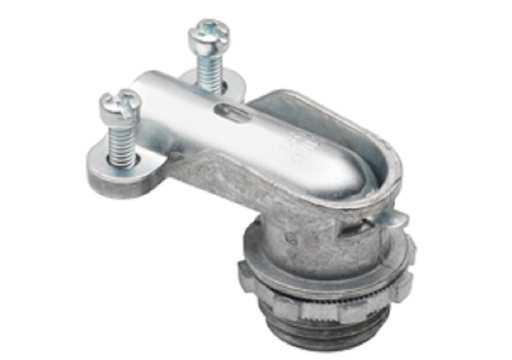

801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch

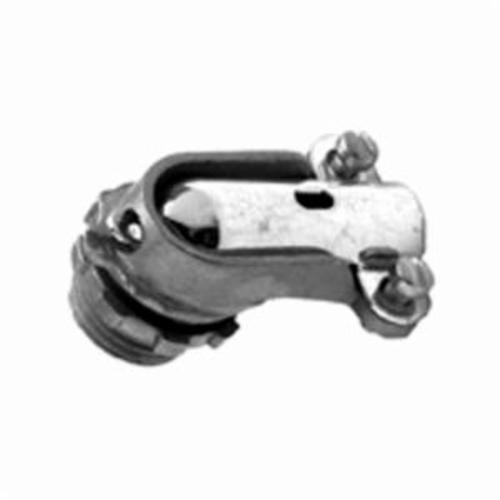

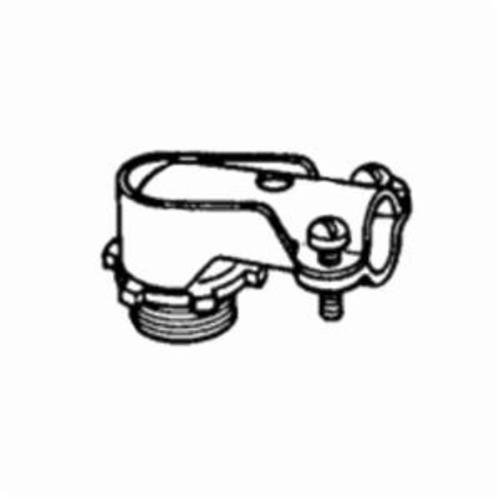

Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch
Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch
Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch Picture of 801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch
Bridgeport

801-DC2 - Connector, 90 Degrees, Zinc Die Cast, Flex Size 3/8 Inch

Item Code: 734606
Manufacturer NSI INDUSTRIES
Manufacturer Ref 801-DC2

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Use Bridgeport’s 801-DC2 3/8" 90-Degree Connector to connect flexible metal conduit or AC/MC/MC-PCS cable to an electrical box or enclosure at a 90-degree angle. Die cast zinc connectors feature a precise fit, finish and excellent corrosion resistance for use in harsh environments. To install, use the steel cover and two-screw design to fasten the cable to the connector. Then, use Bridgeport’s legendary locknut to fasten the connector to the box knockout. For use with flex trade size 3/8" conduit or 14/4 to 10/4 (0.450" to 0.625") AC/MC/MC-PCS cable when installing into a 1/2" knockout.

Specifications

Weight

2.41lb

Width

4.69mm

Length

6.25mm

AD All Features

Steel Cover, Steel cover and two-screw design secures and protects inner cable

AD Application

Used to connect flexible metal conduit to box or enclosure

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

US

AD EAN

0781747158017

AD Gtin

00781747158017

AD Invoice Description

CONNECTOR CONDUIT 3/8IN 0.45 TO 0.625IN

AD Item Features 01

Steel Cover, Steel cover and two-screw design secures and protects inner cable

AD Item Features 02

Zinc Body, Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

6.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.4100

AD Package Weight UOM

LB

AD Package Width

4.6900

AD Package Width UOM

IN

Brand

Bridgeport Fittings

Spec 1 Attribute

Angle

Spec 1 Attribute UOM

deg

Spec 1 Attribute Value

90

Spec 2 Attribute

Cable Openings

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

0.45 to 0.625

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

1-3/8 in L x 15/16 in W

Spec 4 Attribute

Finish

Spec 4 Attribute Value

Ball Burnished/Mirror Smooth

Spec 5 Attribute

Material

Spec 5 Attribute Value

Die Cast Zinc

Spec 6 Attribute

Suitable For Use With

Spec 6 Attribute Value

14/4 to 10/4 AWG MC/MCI-A/HCFMCI-A Cable and 3/8 in Flexible Metal Conduit

Spec 7 Attribute

Trade Size

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

8-Mar

Spec 8 Attribute

Type

Spec 8 Attribute Value

Non-insulated throat
