Bridgeport

MLB-50 - Mogul Conduit Body 4", Aluminum, Raintight, NPT Threads

Category Aluminum Bodies (Condulets - Unilets)

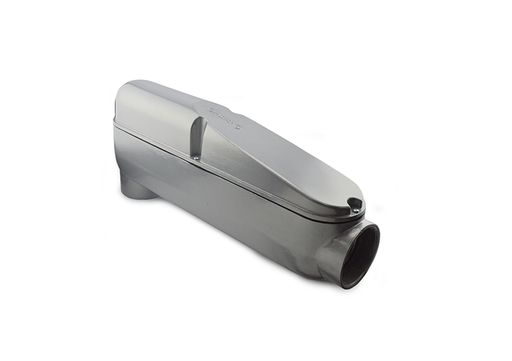

Picture of MLB-50 - Mogul Conduit Body 4", Aluminum, Raintight, NPT Threads
Bridgeport

MLB-50 - Mogul Conduit Body 4", Aluminum, Raintight, NPT Threads

Item Code: 677389
Category Aluminum Bodies (Condulets - Unilets)
Manufacturer NSI INDUSTRIES
Manufacturer Ref MLB-50

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Bridgeport’s MLB-50 4" Aluminum Mogul Conduit Body allows access to the interior of a conduit system for inspection, pulling and routine maintenance. Designed with a split diagonal cover and increased body size, mogul conduit bodies give ample room for pulling large and heavy conductors at a 90 degree angle. To install, simply screw rigid or intermediate metal conduit directly into the NPT threaded hubs. Then, pull the wiring through the conduit body at a right angle. An aluminum construction makes this mogul conduit body a lightweight and cost-effective addition to your wiring system. MLB-44 through MLB-46 feature a cellulose gasket, while models MLB-47 though MLB-50 come fitted with a neoprene gasket. All are listed raintight. Bridgeport aluminum mogul conduit bodies are available in trade sizes 1-1/4" through 4". They are UL-Listed under File No. E11077, meet the NEC 6X Rule and are NEMA TYPE 2, 3, 3R and 4.

Specifications

Weight

19.76lb

Height

5.25mm

Width

11mm

Length

23mm

AD All Features

Allows larger access to the inside of a raceway for wire pulling

AD Application

Threaded Rigid/IMC Conduits and Wet Locations

AD Brand (Description)

Bridgeport

AD Country

USA

AD Country Of Origin

CN

AD Invoice Description

BODY CONDUIT MGL 4IN 311.8CU-IN AL 2 THD

AD Item Features 01

Allows larger access to the inside of a raceway for wire pulling

AD Item Features 02

Split diagonal cover and body ensures ease in wire bending

AD Item Features 03

Meets NEC 6X Rule

AD Item Features 04

Max wire fill 3-1000 MCM THHN, THWN, XHHW

AD Manufacturer (Description)

NSi Industries

AD Package Height

5.2500

AD Package Height UOM

IN

AD Package Length

23.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

19.7600

AD Package Weight UOM

LB

AD Package Width

11.0000

AD Package Width UOM

IN

Brand

Bridgeport Fittings

Category

ALUMINUM BODIES (CONDULETS - UNILETS)

Spec 1 Attribute

Capacity

Spec 1 Attribute UOM

cu-in

Spec 1 Attribute Value

311.8

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Thread

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

29.12 in L x 5.63 in W x 11.94 in H

Spec 4 Attribute

Enclosure

Spec 4 Attribute Value

NEMA FB-1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Enamel Painted

Spec 6 Attribute

Hub Size

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

4

Spec 7 Attribute

Material

Spec 7 Attribute Value

Aluminum

Spec 8 Attribute

Number of Hubs

Spec 8 Attribute Value

2

Spec 9 Attribute

Type

Spec 9 Attribute Value

Type LB Raintight Service Entrance
