Bridgeport®

SGB-387CL - Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 2-1/2 Inch, 14-1/0 Grounding Lug

Category Aluminum Rigid Conduit Fittings

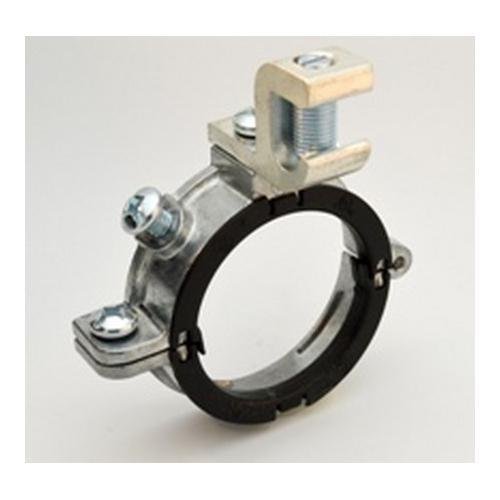

Picture of SGB-387CL - Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 2-1/2 Inch, 14-1/0 Grounding Lug
Bridgeport®

SGB-387CL - Split Bushing, Insulated, Grounding, Zinc Die Cast, Size 2-1/2 Inch, 14-1/0 Grounding Lug

Item Code: 951599
Category Aluminum Rigid Conduit Fittings
Manufacturer NSI INDUSTRIES
Manufacturer Ref SGB-387CL
Call for Availability
Add to Favorites
Compare

Description

Use the Bridgeport SGB-387CL 2-1/2-Inch Ball-Burnished Mirror-Smooth Zinc Die Cast Insulated Split Grounding Bushing with Aluminum Lug for 14 to 1/0 AWG to install bushings to 2-1/2-inch rigid or IMC conduit or EMT fittings before or after wire pull-through. The innovative Mighty-Rite® unique split design is easy to install, allowing for shorter facility downtime when upgrading existing power and data systems to save time and money. The bushing features stainless steel hardware and a UV-stabilized nylon insulator which is temperature rated to 150 degrees Celsius. The bushing is 2.27 inches in interior diameter and solidly built to meet construction and general industry OSHA-recognized and NRTL-listed electrical standards.

Specifications

Weight

10.2lb

Width

7.5mm

Length

9.88mm

AD Application

For use with locknut to terminate threaded rigid/IMC to box, connector to prevent damage to wire insulation, use in situations where wires have already been pulled through Rigid/IMC conduit and an insulated bushing is required

AD Brand (Description)

Bridgeport®

AD Country

USA

AD Country Of Origin

CN

AD EAN

0781747903877

AD Gtin

00781747903877

AD Invoice Description

BUSHING GROUNDING SPLIT 2-1/2IN 4AWG

AD Item Features 01

Used in situations where wires have already been pulled through rigid/IMC conduit and an insulated bushing is required

AD Item Features 02

Adjustable grounding lug accepts wire easier

AD Item Features 03

Pulling larger conductor wire is easier when you can install grounding bushings after the pull

AD Item Features 04

Hinged design adjusts and aligns easier - even in tight spots

AD Item Features 05

Can be installed before wire pull or after without expensive rework

AD Item Features 06

Aluminum alloy 6061-T6 grounding lug

AD Item Features 07

Now featuring UV stabilized insulators and stainless steel hardware, perfect for solar and other outdoor installations

AD Item Features 08

Electro-plated tin grounding lug

AD Item Features 09

150 deg C temperature rating

AD Manufacturer (Description)

NSi Industries

AD Package Height UOM

IN

AD Package Length

9.8800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

10.2000

AD Package Weight UOM

LB

AD Package Width

7.5000

AD Package Width UOM

IN

Brand

Bridgeport Fittings

Category

ALUMINUM RIGID CONDUIT FITTINGS

Spec 1 Attribute

Color

Spec 1 Attribute Value

Black/gray

Spec 2 Attribute

Diameter

Spec 2 Attribute Value

3.27 in ID x 2.27 in OD

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Ball Burnished/Mirror Smooth/Electro-Plated Tin

Spec 4 Attribute

Material

Spec 4 Attribute Value

Zinc Alloy

Spec 5 Attribute

Maximum Wire Size

Spec 5 Attribute UOM

AWG

Spec 5 Attribute Value

Jan-00

Spec 6 Attribute

Minimum Wire Size

Spec 6 Attribute UOM

AWG

Spec 6 Attribute Value

4

Spec 7 Attribute

Trade Size

Spec 7 Attribute UOM

IN

Spec 7 Attribute Value

2/1/2002

Spec 8 Attribute

Type

Spec 8 Attribute Value

Insulated Patented
