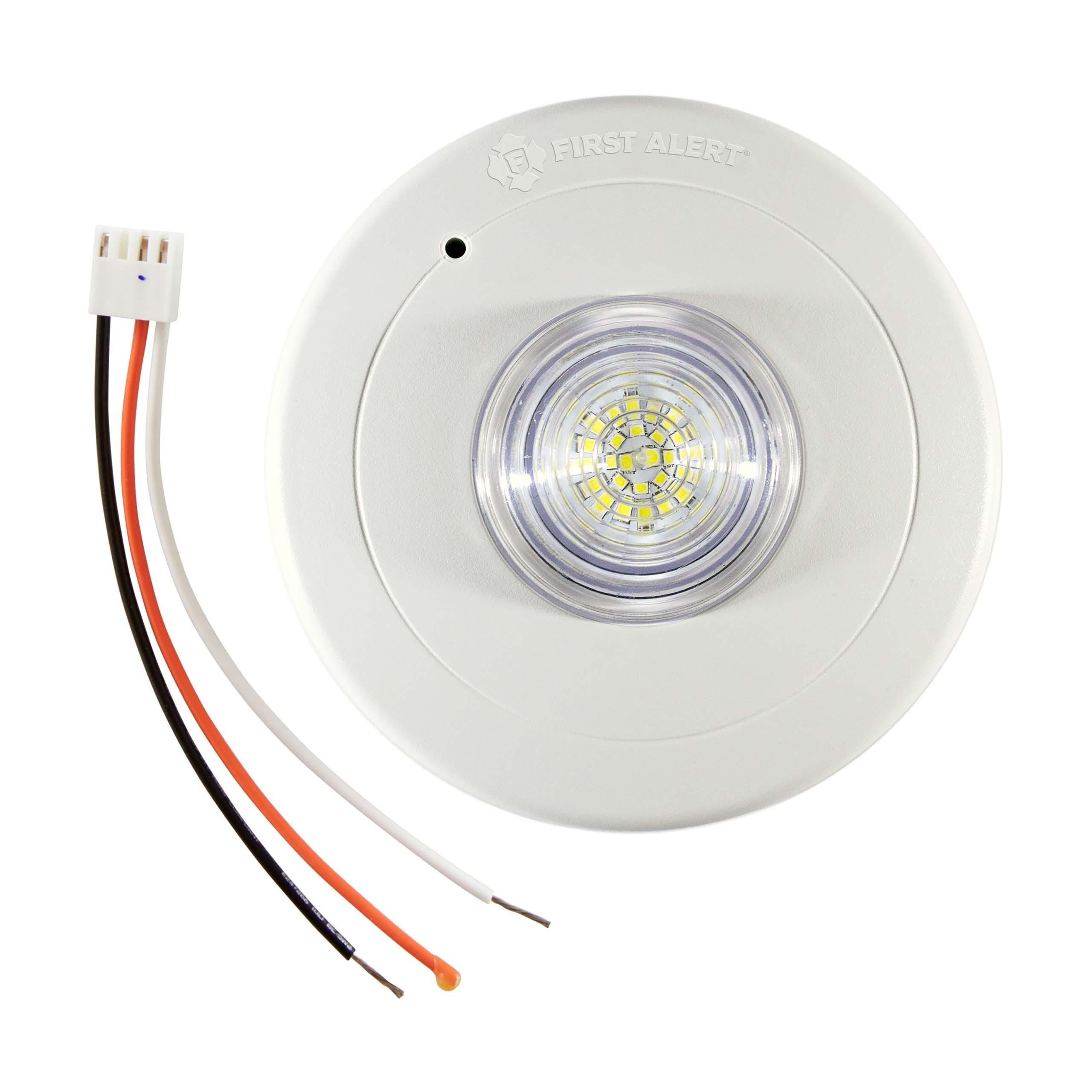

1038510 - AC hardwired signaling device with 177 candela strobe light
Description
Specifications
0.76lb
5.39mm
5.33mm
3.15mm
For residential and institutional applications including sleeping rooms of hospitals, hotel/motels, public housing, dormitories, and other multifamily dwellings
BRK
USA
MX
SMK & CO COMBINATION DET & ALM
Smart strobe, Separate flash patterns to distinguish between smoke and carbon monoxide
Powerful 177 candela LED strobe light provides effective visual warning to awaken hearing impaired residents
60 flashes per minute rate meets
When multiple units installed, strobes flash in unison
Attractive low profile design,mounts easily on ceiling or wall
Slim Design
Resideo Technologies
5.3900
IN
3.1500
IN
1
0.7600
LB
5.3300
IN
BRK
Fire Protection
Alarm Type
Visual
Type
Wire-In
Visual Alert
Green/Red LED
Wiring Type
Quick-Connect
Color
White
Dimensions
5.3 in Dia x 2.4 in H
Humidity Rating
%
10 to 90
Interconnection Capability
Up to 18 Units
Material
Plastic
Operating Temperature
deg F
40 to 100
Power Source
120 V AC 60 Hz
Specifications Met
UL STD 1638, ANSI 117.1, NFPA 72, NFPA 101, ICC
