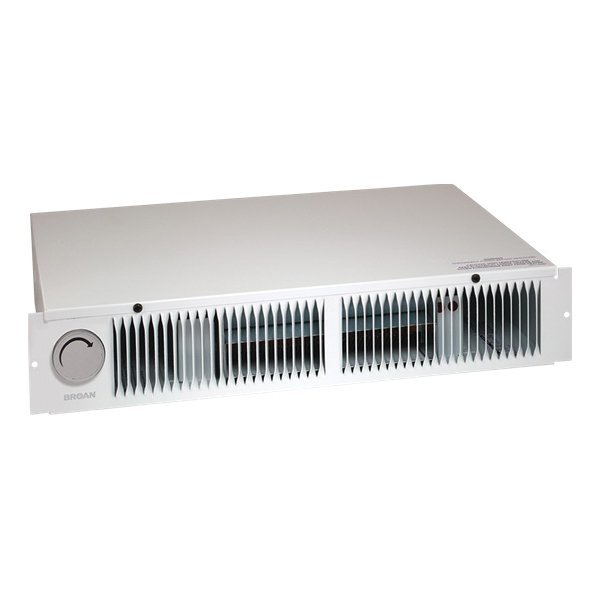

112 - Kickspace Heater, White, 1500W 240VAC, 750/1500W 120VAC, with built-in thermostat.
Description
Specifications
14.5lb
14.9mm
6.25mm
22.25mm
For light commercial applications such as ticket/toll booths or checkout counters where ducting isn't possible
Broan®
USA
CN
00026715004058
HEATER KICKSPACE 5120BTU/HR 120VAC WALL
White grille has a baked enamel finish and 1-piece design for durability
No extended warm up time due to an efficient steel sheathed, plate finned heating element that provides comfortable heat in seconds
Quiet, thermally protected motor shuts off in event of overheating and transverse blower circulates heated air for optimal room warming

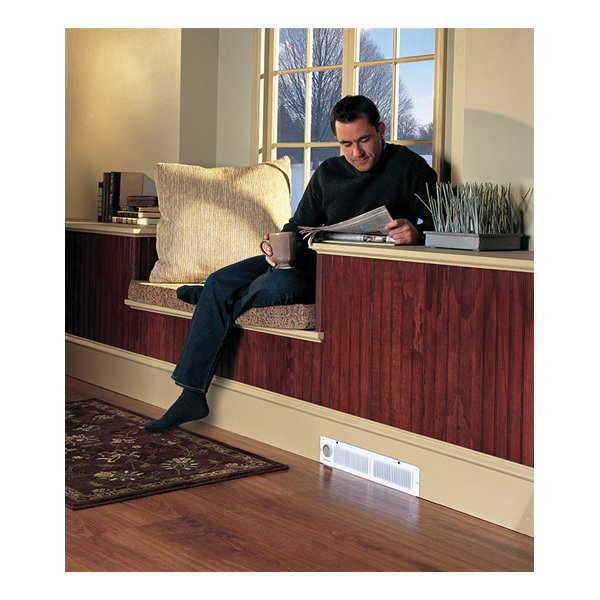

Slim design tucks under cabinet kickspaces, vanities, stairways or any place where space is limited and a little extra heat is desired to make your environment cozier
Kickspace heaters are intended to provide supplemental heat from a wall location and not to take the place of a home's main heat source
Control temperature with optional line voltage thermostat (model 86W) or timer (models 59V or 59W 60 mon timer or models 61V or 61W 15 min timer) for a simple and convenient way to control the heater
Auto short-circuit
Wall switch control
3-5/8 H x 19-1/4 in W grille
3-5/8 in H x 18 in W housing
Steel Housing
Variable number of heat settings
5120 Btu/hr at 120 VAC, 3840 Btu/hr at 208 VAC, 5120 Btu/hr at 240 VAC
750/1500 W and 6.25/12.5 A at 120 VAC, 1125 W and 5.41 A at 208 VAC, 1500 W and 6.25 A at 240 VAC
Broan-NuTone
14.9000
IN
22.2500
IN
1
14.5000
LB
6.2500
IN
Broan-NuTone
WALL HEATERS
Amperage Rating
A
6.25/12.5
Capacity
Btu/hr
5120
Color
White
Domestic/Import
Import
Heater Type
Fan Forced
Mounting Type
Surface
Power Rating
W
750/1500
Type
Low Profile
Voltage Rating
V AC
120
