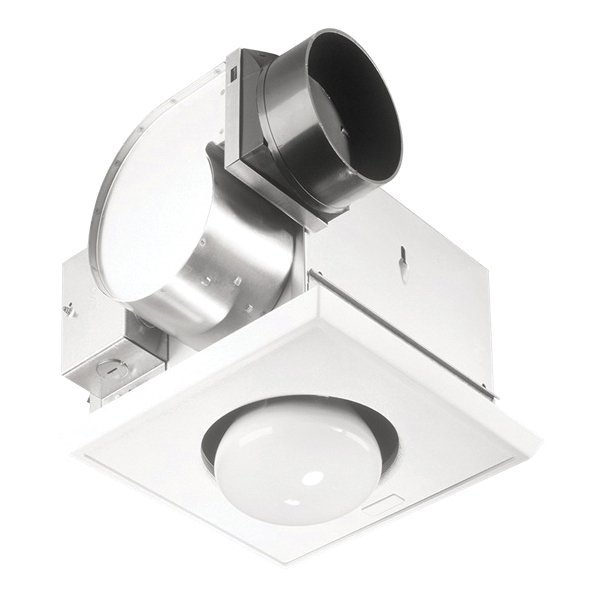

162 - Broan® 70 CFM One-Bulb Heater/Ventilation Fan, 250W BR40 Infrared Bulb, 4.0 Sones
Description
Specifications
7.35lb
7.6mm
11mm
12.55mm
For Energy-Saving Warmth And Instant Comfort In The Bathroom
Broan
USA
CN
HEATER BULB 70CFM 4IN 250W 120VAC 2.5A
Bulb heater/fans provide silent warmth and superior ventilation in a compact package
Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment
Very low profile, white polymeric grille blends into most ceilings
Use 250 W BR40 size infrared bulbs (not included) for comfortable heating performance
Sturdy steel housing, a plug-in, permanently lubricated motor adjustable mounting brackets with keyhole slots and a 4 in round duct connector with tapered sleeves combine to make installation logical and simple
Control operation with a choice of wall controls, available separately, 57W, 57V, 59W, 59V, 61W, 61V, 63W, 63V, 64W, 64V, 68W, 68V, 70TW, 71V, 72W, 72V, 269WL, 269VL, DH100W or T24H
Ceiling heaters are intended to provide supplemental heat and not to take the place of the home's main heat source
70 cfm fan provides excellent ventilation at a quiet 3.5 Sones and will keep your bath free from steam or bathroom odors
Motor engineered for continuous operation
Polymeric dampers eliminate metallic clatter while preventing backdrafts
Polymeric 4 in round duct connectors with tapered sleeves provide easier, positive ducting
Adjustable mounting brackets with keyhole slots that span upto 24 in
Broan-NuTone
7.6000
IN
12.5500
IN
1
7.3500
LB
11.0000
IN
Broan-NuTone
COMBINATION FANS, LIGHTS & HEATERS
Amperage Rating
A
2.5
Lamp Wattage
W
250
Lighting Type
Infrared
Mounting Type
Ceiling
Power Rating
W
300
Voltage Rating
V AC
120
Color
White
Duct Diameter
IN
4
Flow Rate
CFM
70
Grille Material
Polymer
Grille Size
10-1/4 in L x 10-1/4 in W x 5/8 in H
Housing Material
Steel
Housing Size
8-3/8 in L x 8-1/8 in W x 6-3/8 in H
Humidity Sensing
No
