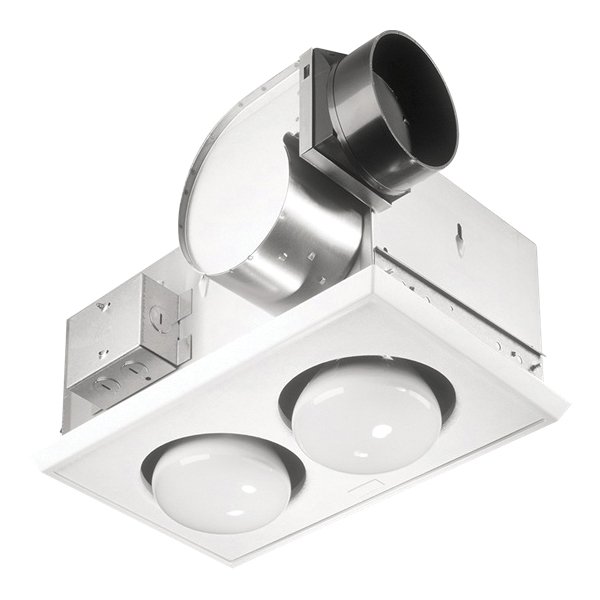

164 - Broan® Two-Bulb Heater/Ventilation Fan 70 CFM, (2) 250W BR40 Infrared Bulbs, 4.0 Sones
Description
Specifications
9.1lb
7.2mm
12.3mm
16.6mm
For Energy-Saving Warmth And Instant Comfort In The Bathroom
Broan®
USA
CN
00026715002603
HEATER BULB 70CFM 4IN 500W 120VAC 500W
Bulb heater/fans provide silent warmth and superior ventilation in a compact package
Heat and ventilation functions may be controlled separately or in combination so you're always in control of the environment
Very low profile, white polymeric grille blends into most ceilings
70 cfm fan provides excellent ventilation at a quiet 3.5 Sones and will keep your bath free from steam or bathroom odors
Use 250 W BR40 size infrared bulbs (not included) for comfortable heating performance
Quiet, highly efficient polymeric blower wheels maintain consistent power, while polymeric dampers prevent backdrafts and eliminate mechanical noise for reliable operation and a comfortable environment, UL listed for safety
Sturdy steel housing, a plug-in, permanently lubricated motor adjustable mounting brackets with keyhole slots and a 4 in round duct connector with tapered sleeves combine to make installation logical and simple
Control operation with a choice of wall controls, available separately, 57W, 57V, 59W, 59V, 61W, 61V, 63W, 63V, 64W, 64V, 68W, 68V, 70TW, 71V, 72W, 72V, 269WL, 269VL, DH100W or T24H
Ceiling heaters are intended to provide supplemental heat and not to take the place of the home's main heat source
Polymeric dampers eliminate metallic clatter while preventing backdrafts
Polymeric 4 in round duct connectors with tapered sleeves provide easier, positive ducting
Adjustable mounting brackets with keyhole slots that span upto 24 in
Use with Broan® model 68W, 68V, 67W, 67V, 66W, 66V, 65W or 65V multi-function control (available separately)
Broan-NuTone
7.2000
IN
16.6000
IN
1
9.1000
LB
12.3000
IN
Broan-NuTone
COMBINATION FANS, LIGHTS & HEATERS
Amperage Rating
A
4.5
Humidity Sensing
No
Lamp Wattage
W
500
Lighting Type
Infrared
Mounting Type
Ceiling
Power Rating
W
545
Voltage Rating
V AC
120
Color
White
Duct Diameter
IN
4
Flow Rate
CFM
70
Grille Material
Polymer
Grille Size
15-5/8 in L x 10-1/4 in W
Heater Wattage
W
500
Housing Material
Steel
Housing Size
8-3/8 in L x 14-1/4 in W x 6-3/8 in H
