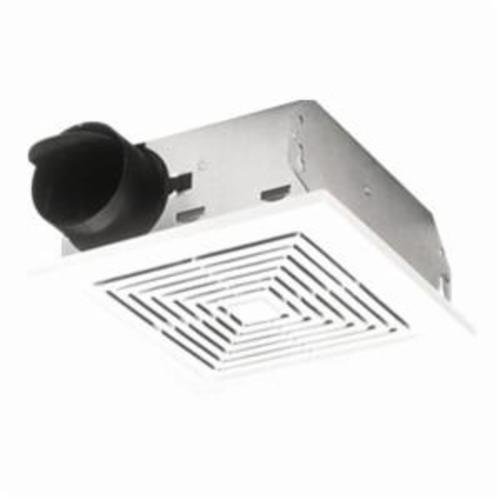

671 - 70 CFM Wall/Ceiling Mount Bathroom Exhaust Fan
Description
Specifications
3.75lb
0.83mm
0.42mm
0.83mm
Broan
USA
US
FAN VENTILATION 70CFM 3IN 120VAC 1.15A
70 cfm at 6 Sones sound
Durable Broan® designed blower wheel
Torsion spring grille mounting - no tools required
Compact housing fits easily between ceiling joists or wall studs
Double strength steel mounting flanges with keyhole slots for fast installation
Covered by U.S. and foreign patents
Single packs and project packs
Metal grille kit S97011308

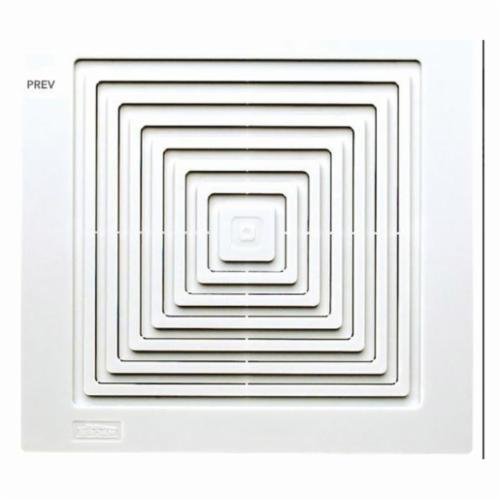

White polymeric blends well with any decor
Plug-in, permanently lubricated motor
Broan®-designed polymeric blower wheel
Snap-in/out motor assembly for easy cleaning no screws to drive or drop
Compact, 25 ga galvanized steel, attaches easily to wall or ceiling joists
Double strength mounting flanges with keyhole slots
Removable wiring cover make connections away from tight corners
No electrical knockout to remove
Polymeric duct fitting with tapered sleeve for easy, positive duct connection, ventilator shall have galvanized steel housing with double strength mounting flanges, shall be ducted vertically
Quiet polymeric damper prevents cold backdrafts no metallic clutter, motor assembly shall be removable and permanently lubricated
Broan-NuTone
0.8300
IN
0.8300
IN
1
3.7500
LB
0.4200
IN
Broan-NuTone
COMBINATION FANS, LIGHTS & HEATERS
Amperage Rating
A
1.15
Housing Width
IN
7/1/2002
Humidity Sensing
No
Mounting Type
Ceiling
Voltage Rating
V AC
120
Color
White
Duct Diameter
IN
3
Flow Rate
CFM
70
Grille Length
IN
9
Grille Width
IN
9/1/2004
Housing Height
IN
3/5/2008
Housing Length
IN
7/1/2004
Housing Material
Polymer
