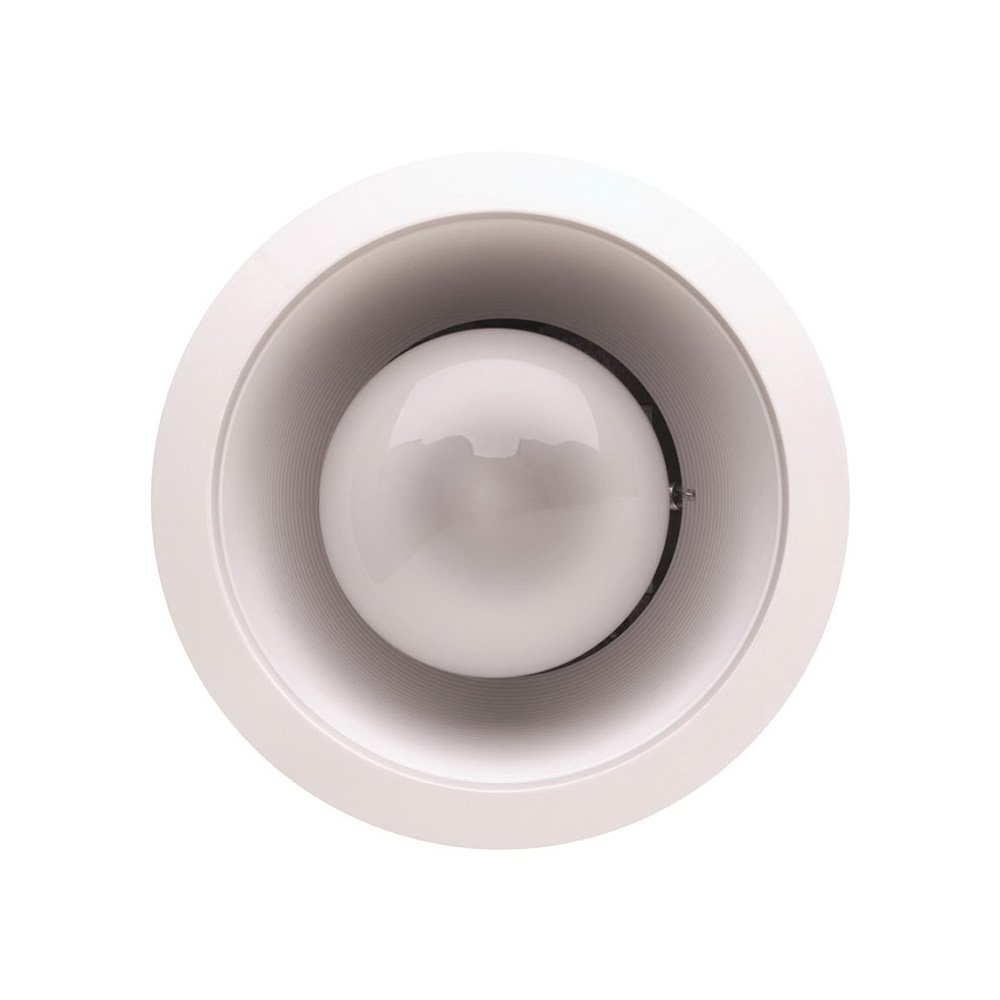

744 - Broan® Recessed 70 CFM Ventilation Fan Light, 1.5 Sones
Description
Specifications
9.4lb
10.5mm
9.5mm
14.4mm
For use over bathtubs and showers when connected to a GFCI protected branch circuit with par30l or par30ln bulbs, bathrooms upto 65 sq-ft and other rooms
Broan
USA
MX
FAN/LIGHT VENTILATION INCAND 28.2W STL
High efficiency centrifugal fan
Trim matched to designs of major recessed light manufacturers
Put multiple units in larger rooms
Model 744 accepts a standard A19 base, 75 W maximum bulb, not included (R30, BR30, PAR30L or PAR30LN)
All models UL listed for use over bathtub or shower when connected to a GFCI protected branch circuit
6-7/8 in high housing appropriate for new construction and 2 x 8 in ceiling joists
4 in round duct connector
Type IC, sealed housing
Not for use over cooking surfaces humidity
Polymeric construction with matte white finish 7-3/8 in trim ring baffle, its recessed styling, mounts flush with finished ceiling
Plug-in, permanently lubricated, motor with low rpm for quiet operation
Dynamically balanced centrifugal blower wheel for quiet, efficient performance
Rugged 26 ga galvanized steel construction housing
Adjustable mounting brackets span upto 24 in
70 cfm at 0.1 in SP, 56 cfm at 1/4 in SP
Broan-NuTone
10.5000
IN
14.4000
IN
1
9.4000
LB
9.5000
IN
Broan-NuTone
COMBINATION FANS, LIGHTS & HEATERS
Air Flow Rate
CFM
70
Amperage Rating
A
1.2
Dimensions
8-1/4 in L x 12-3/4 in W x 6-7/8 in H
Fixture Wattage
W
28.2
Housing Material
Steel
Lamp Base Type
R30/BR30
Lamp Wattage
W
75
Type
Quiet Recessed
Voltage Rating
V AC
120
