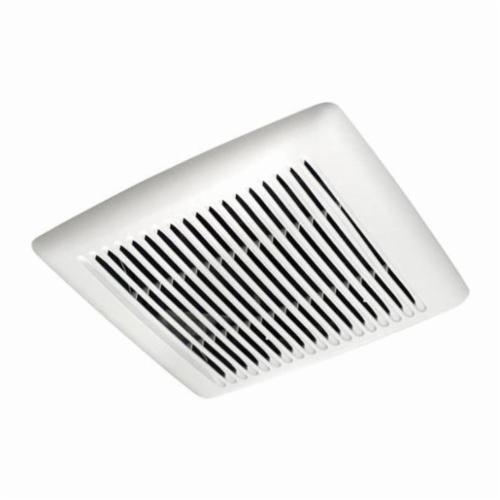

AE110 - Broan Flex™ Series 110 CFM 1.0 Sone Ventilation Fan Energy Star®
Description
Specifications
10lb
5.75mm
12mm
9.25mm
Nutone
USA
Damper/Duct Connector
FAN VENTILATION BATH 110CFM 4IN 23.4W NO
110 CFM reduces humidity to quickly eliminate fogged mirrors and manage moisture in bathrooms up to 105 sq-ft, so your vision will always be clear and your surroundings will always be comfortable

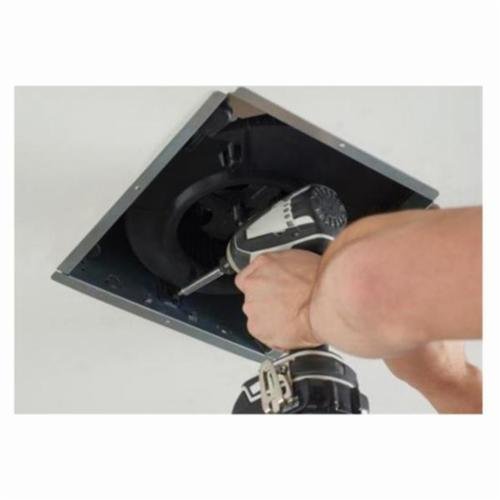

Retrofit installations can be done entirely from the room side no attic access required, this means a faster, easier installation, so you can move on to something else
With our TrueSeal™ damper technology, InVent™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
EzDuct™ connector can be installed room-side with no attic access required, fan housing connection have never been easier
UL Listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most

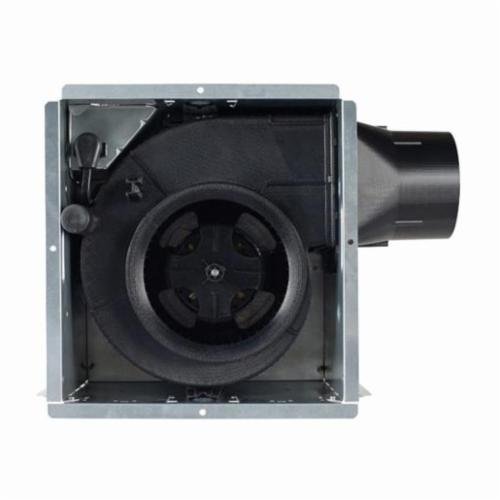

Plug-in, permanently lubricated motor engineered for continuous operation
Dynamically balanced centrifugal bowler wheel for quite efficient performance
Low RPM for quiet operation
Polymeric, 4 in duct connector with tapered sleeve and no metallic clatter
5-3/4 in height allows for 2 x 6 in ceiling installations
Sturdy, easy, four-point mounting directly to joist
Can be mounted in ceilings up to 7/12 pitch
Horizontal duct direction, innovative design
110 CFM at 0.1 in/92 CFM at 0.25 in flow rate
Broan-NuTone
1
10.0000
LB
Broan-NuTone
EXHAUST FANS & COMPONENTS
Color
White
Housing Length
IN
9/1/2004
Housing Material
Galvanized Steel
Housing Width
IN
10
Humidity Sensing
No
Motion Sensing
No
Mounting Type
Ceiling/Room-Side
Series
InVent™
Sones
Sones
1
Type
Single Speed
Voltage Rating
V AC
120
Current/Amps
A
0.3
W
23.4
Duct Diameter
IN
4
Flow Rate
CFM
110
Frequency Rating
HZ
60
Grille Length
IN
11/3/2008
Grille Material
Polymer
Grille Width
IN
12
Housing Height
IN
5/3/2004
