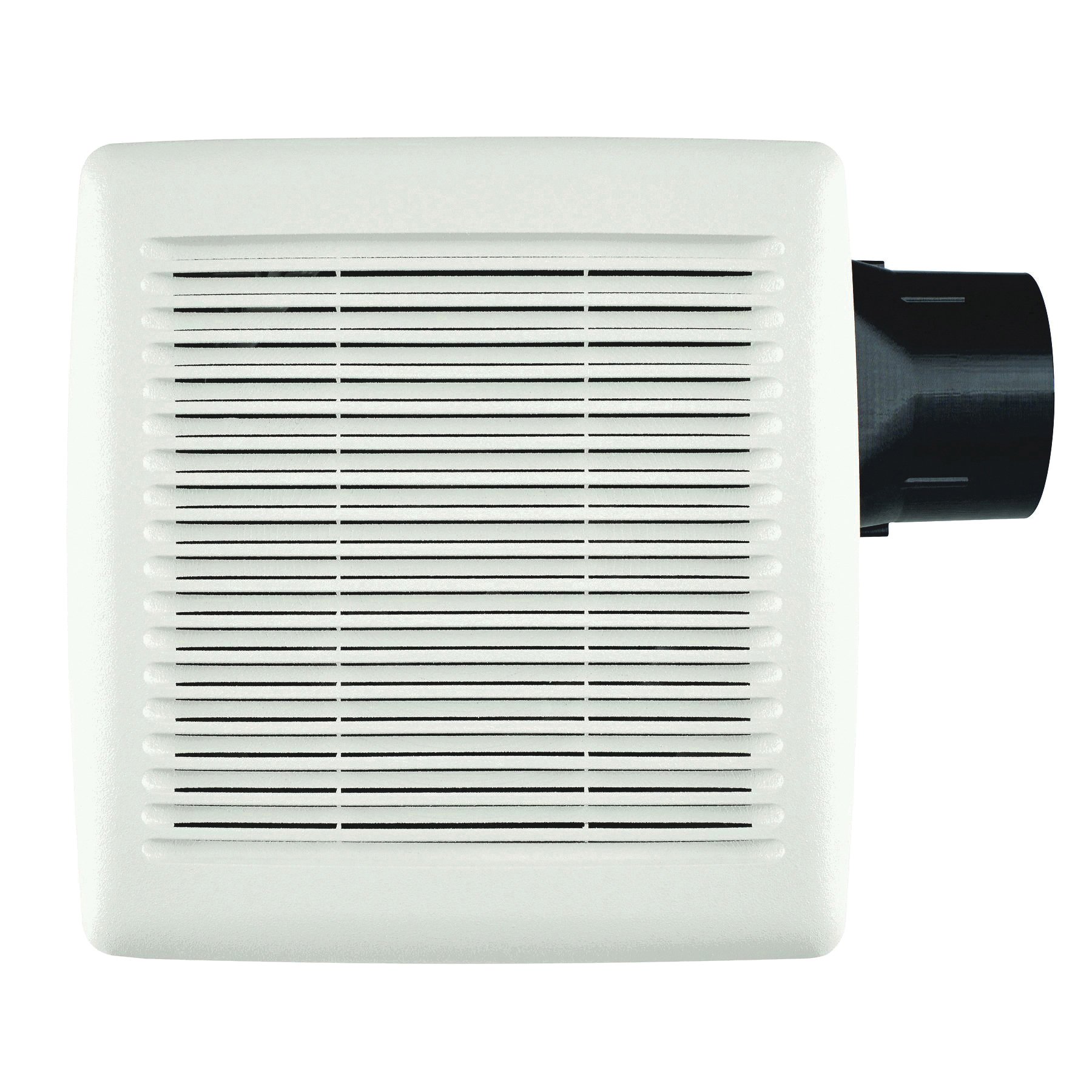

AE50-110DC - Broan® Flex DC™ Series 50-80-110 Selectable CFM <0.3-0.4-0.9 sone Ventilation Fan Energy Star®
Description
Specifications
8.1lb
13.3mm
11mm
13.3mm
Broan
USA
US

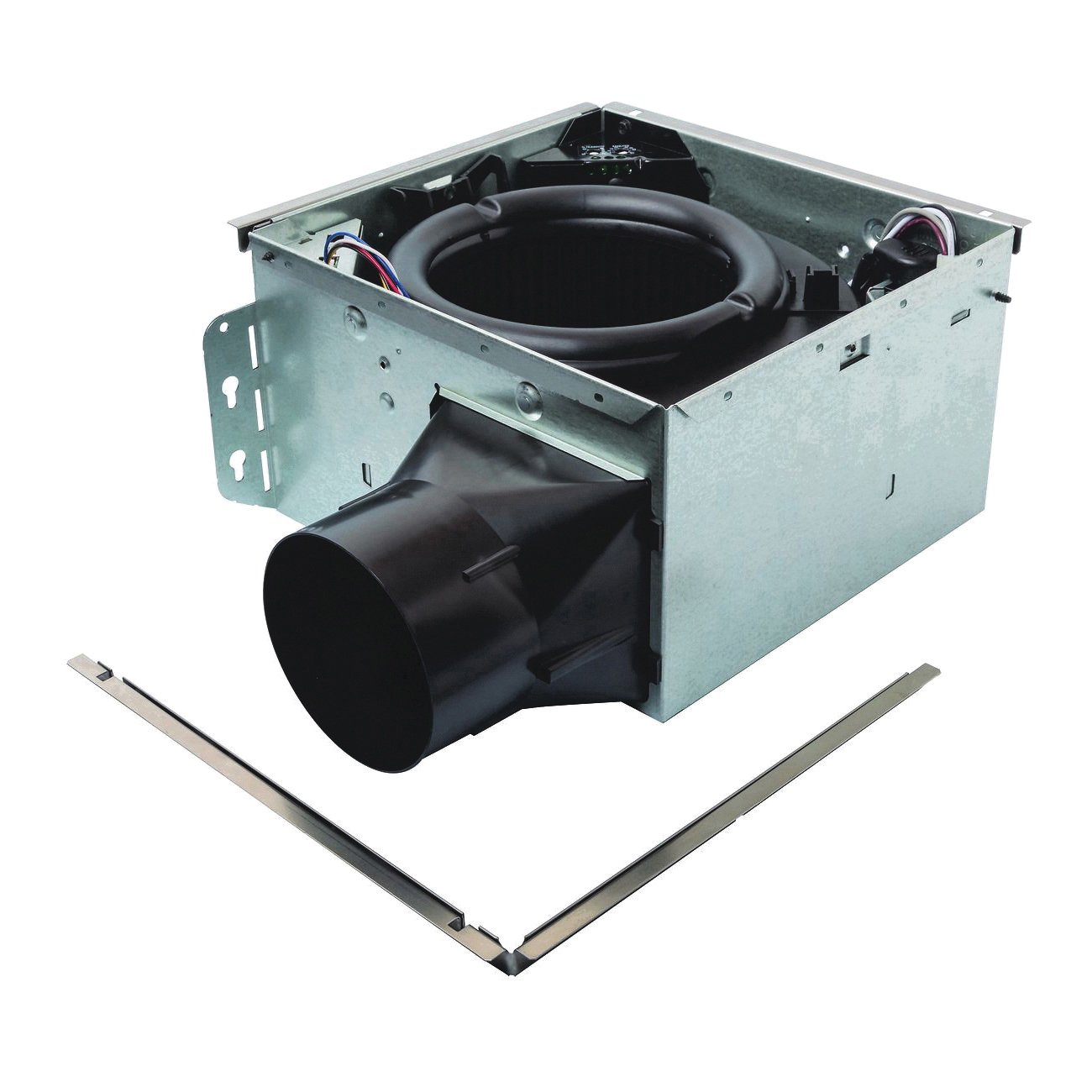

Hardware, Non-Metallic Damper and Duct Connector
FAN VENTILATION 50/80/110CFM 4IN 120V NO
FlexFlow™ technology, select between 50, 80 or 110 cfm
Quiet operation at <0.3/0.4/0.9 sones
Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
Retrofit installations can be done entirely from the room-side - no attic access required, this means a faster, easier installation, so you can move on to something else
Flex DC™ fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
Plug-in, permanently lubricated, brushless DC motor - engineered for continuous operation
Can be installed in a wall if mounted 8 ft or more above the floor
Quiet, energy efficient exhaust fan to help control air quality
Selectable CFM For flexible installation
Easy-to-install new/replace existing product from the roomside
Compatible with Overture™ connected IAQ system
Broan-NuTone
13.3000
IN
13.3000
IN
1
8.1000
LB
11.0000
IN
Broan-NuTone
EXHAUST FANS & COMPONENTS
Color
White
Housing Height
IN
5/3/2004
Housing Length
IN
9/1/2004
Housing Width
IN
10
Humidity Sensing
No
Motion Sensing
No
Mounting Type
Ceiling/Room-Side
Series
Broan Flex DC™ Series
Sones
<0.3/0.4/0.9
Type
Round Duct
Voltage Rating
V
120
Current/Amps
A
0.3
Domestic/Import
Domestic
Duct Diameter
IN
4
Flow Rate
CFM
50/80/110
Frequency Rating
HZ
60
Grille Length
IN
11/1/2002
Grille Material
Plastic
Grille Width
IN
12
