BHFLED80 - Broan-NuTone BHFLED80 PowerHeat Bathroom Exhaust Fan, Heater, and LED Light Combination, 80 CFM
Description
Specifications
14lb
11mm
11mm
17.8mm
For commercial Applications
Broan
USA
MX
HTR/F/LT COMBO 80CFM 4IN 120VAC 1300W
1.5 sones for quiet performance, enough sound to know your fan is on
1300 W heater for instant heat when you want it

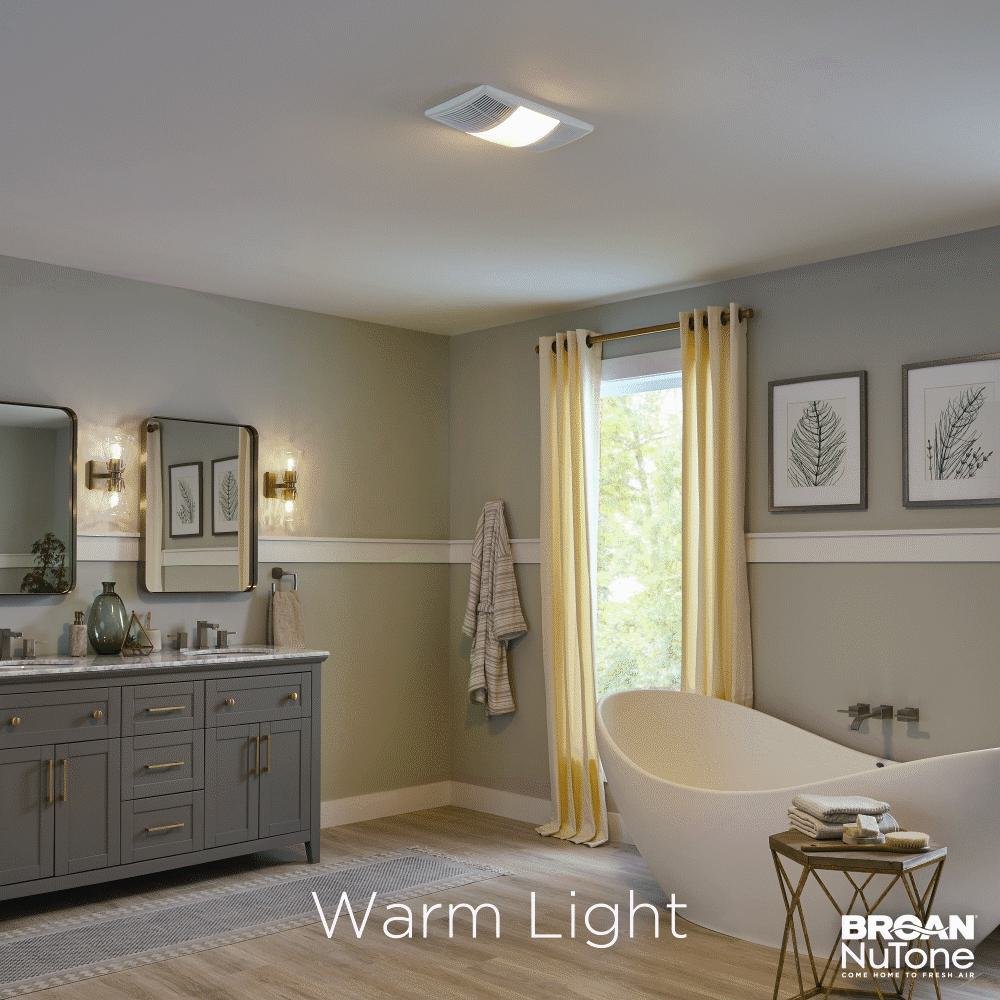

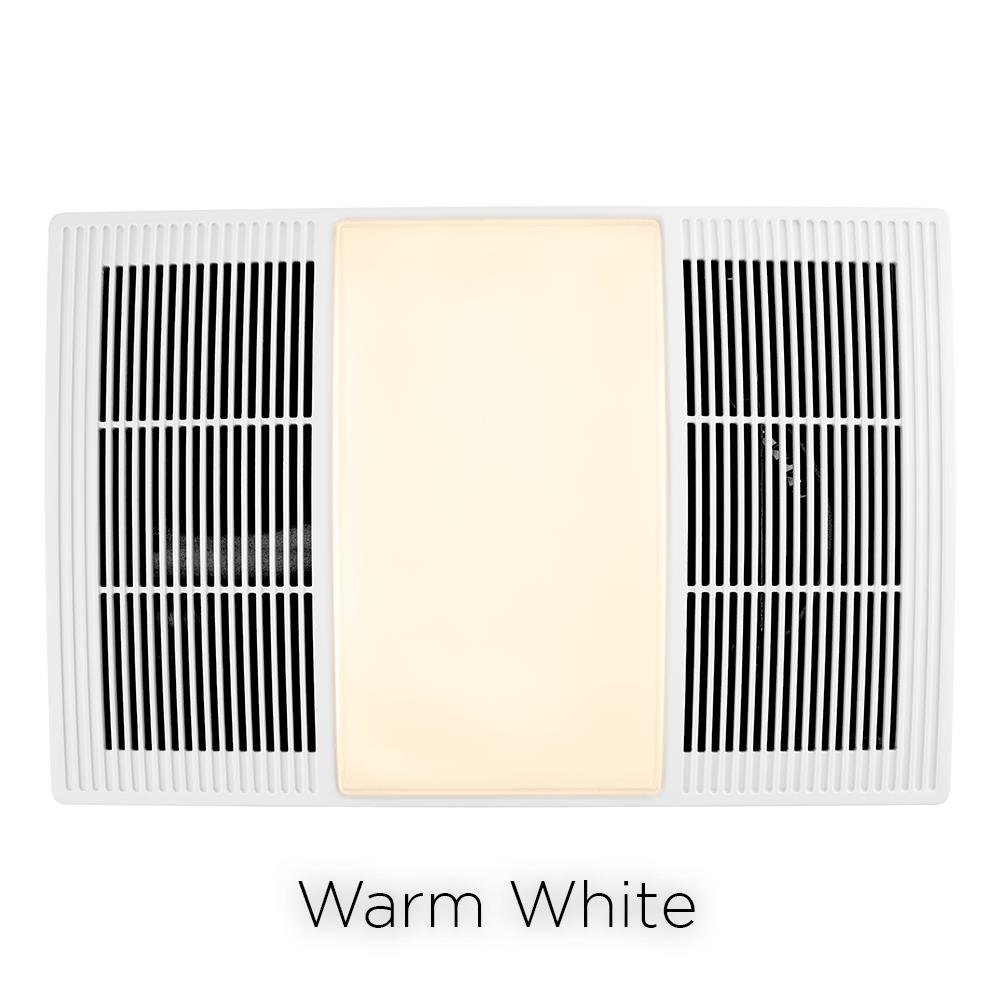

Integrated dimmable LED with color adjustable CCT lighting; Choose between warm white (2700K), bright white (3500K), and daylight (5000K) color options
LED Dimmable Lighting may be used as a nightlight (dimmer switch is not included)
Modern design matches an array of bathroom decor
Fits in 2 in x 6 in ceiling construction
Broan-NuTone
11.0000
IN
17.8000
IN
1
14.0000
LB
11.0000
IN
Broan-NuTone
EXHAUST FANS & COMPONENTS
Amperage Rating
A
12
Humidity Sensing
No
Material
Plastic
Motion Sensing
No
Mounting Type
Ceiling
Series
PowerHeat
Voltage Rating
V AC
120
Color
White
Duct Diameter
IN
4
Flow Rate
CFM
80
Grille Material
Polymer
Grille Size
9.75 in W x 16.25 in L
Heater Wattage
W
1300

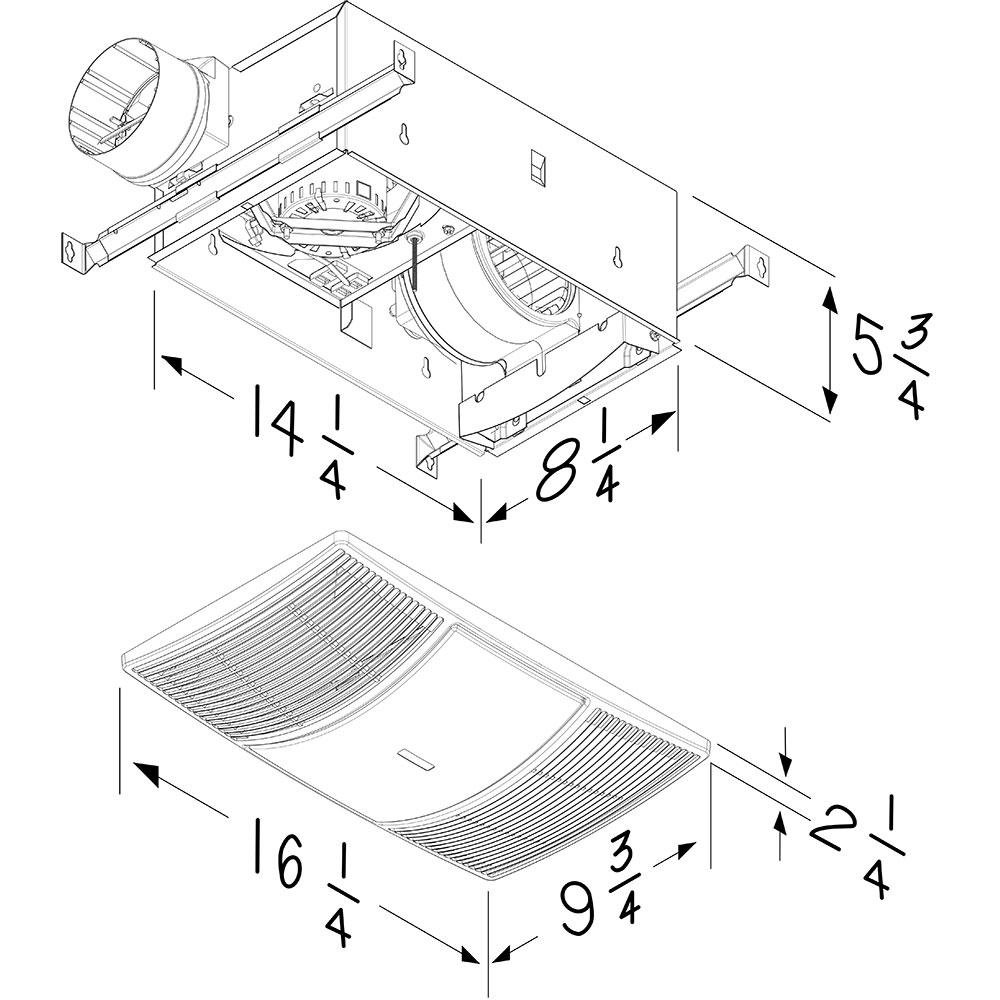

Housing Dimensions
5.75 in H x 8.25 in W x 14.25 in L
Housing Material
Galvanized Steel
