LP50100DC - Broan® Lo-Profile DC Series 50-80-100 Selectable CFM Ventilation Fan, 0.3-0.5-1.2 Sones, ENERGY STAR® Certified
Description
Specifications
9.4lb
15.25mm
6.1mm
16.8mm
Broan
USA
CN
Hardware, Metal Damper and Duct Connector
FAN VENTILATION 50/80/100CFM 4IN 120V NO
Selectable CFM with speeds of 50/80/100 cfm for effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
<0.3/0.7/1.2 sones for quiet performance, enough sound to know your fan is on

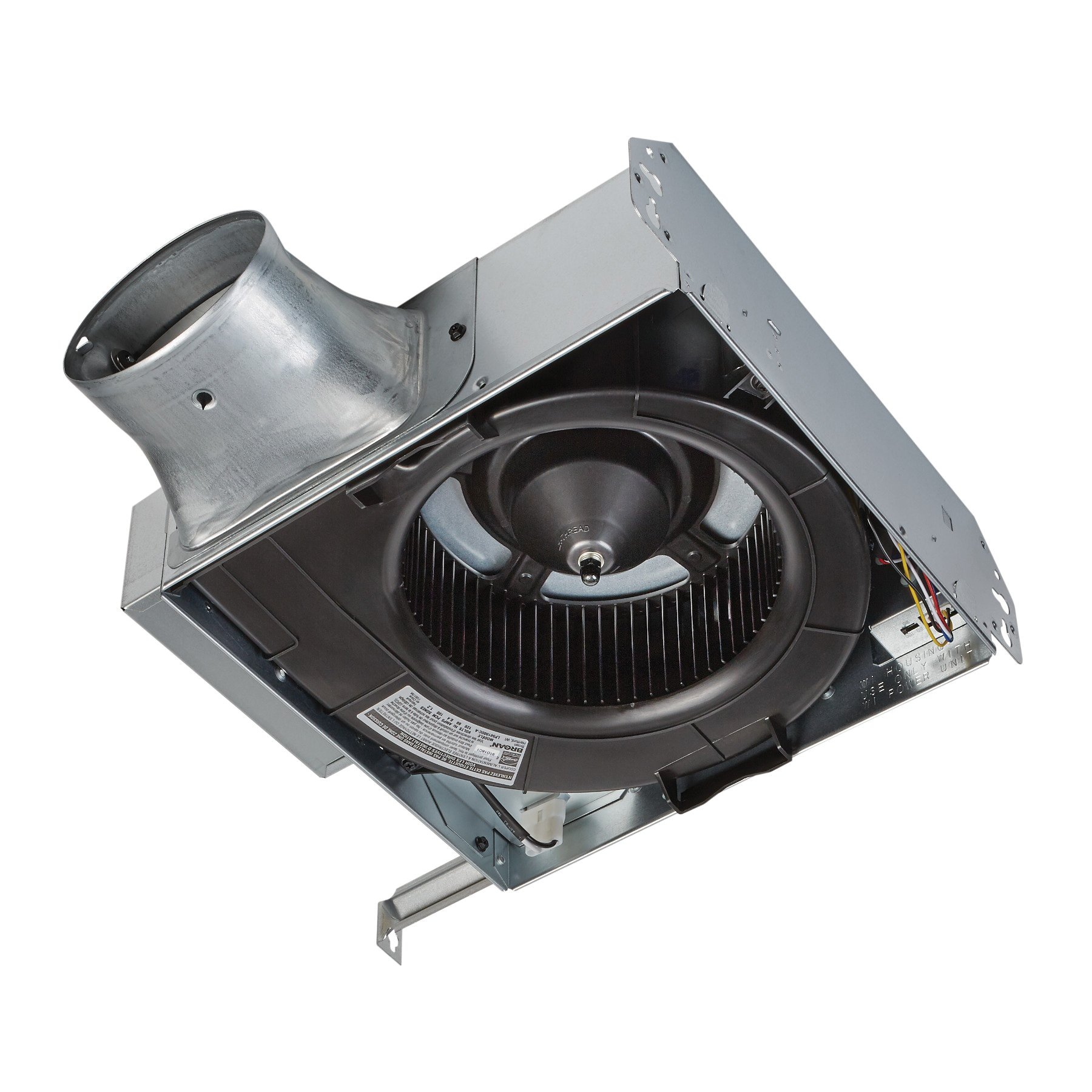

4 in oval duct connection for installation flexibility, allows for ceiling or wall mounting
ENERGY STAR certified efficient operation for lower utility bills
UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Powerful enough for rooms up to 90 sq-ft

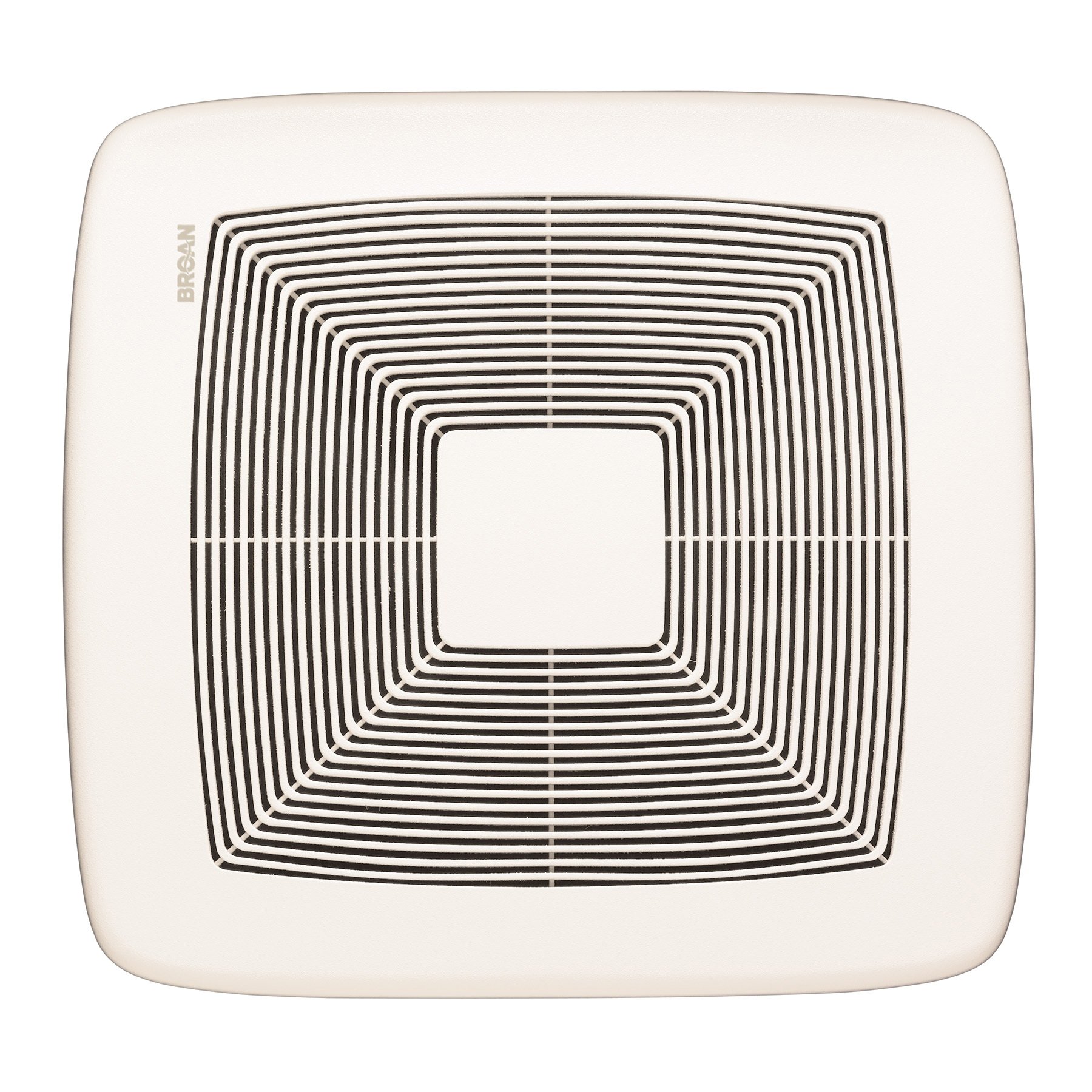

Brighter white grilles blend in to match most common ceiling paint

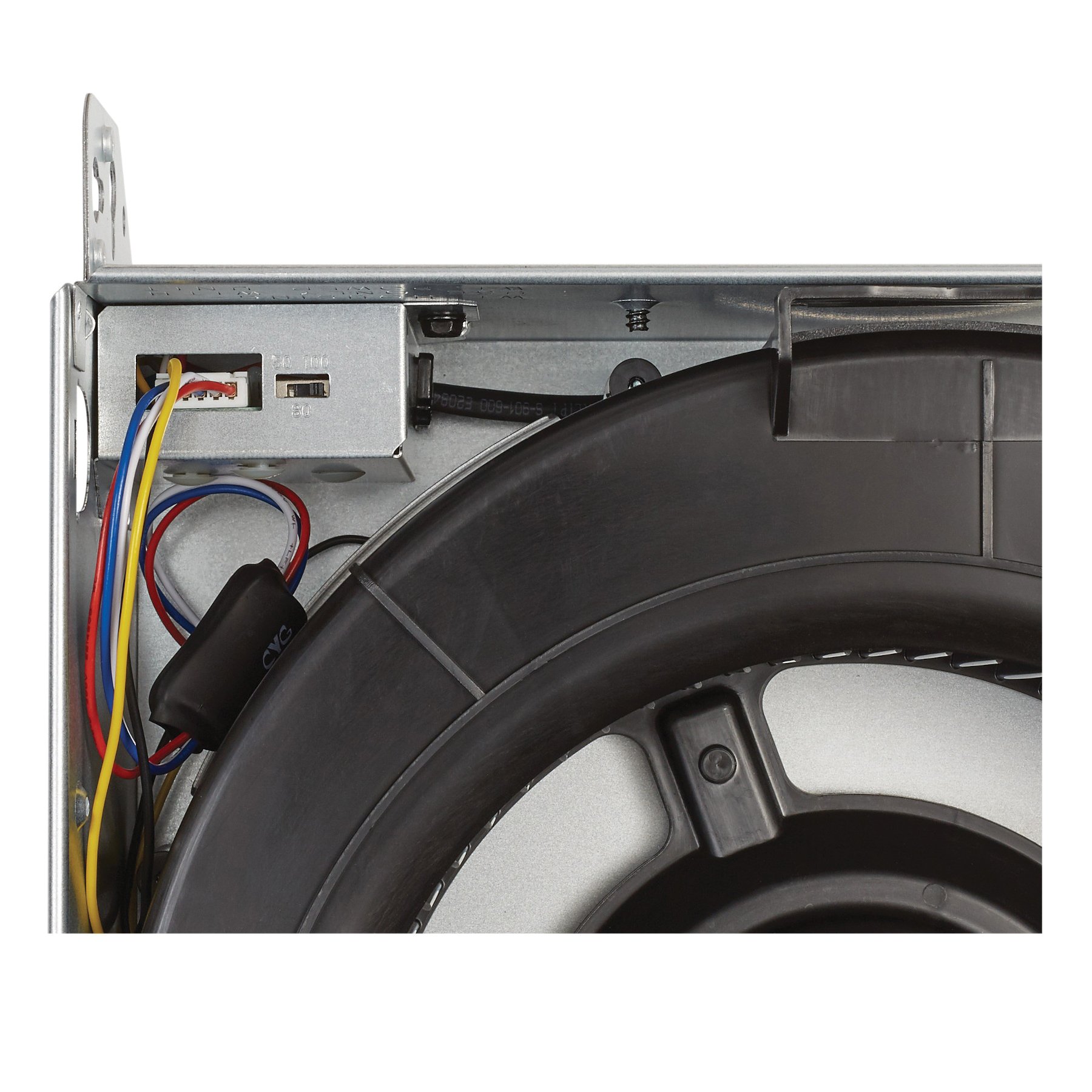

Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Compatible with RDF2 radiation damper
Easy-to-install and/or replace existing product for DIY'ers
Quiet operation for a relaxing experience
Corrosion-resistant galvanized steel housing withstands moisture
Broan-NuTone
15.2500
IN
16.8000
IN
1
9.4000
LB
6.1000
IN
Broan-NuTone
EXHAUST FANS & COMPONENTS
Color
White
Housing Height
IN
4
Housing Length
IN
10/1/2002
Housing Material
Steel
Housing Width
IN
11/3/2008
Humidity Sensing
No
Motion Sensing
No
Mounting Type
Ceiling
Series
LoProfile™ DC Series
Sones
1.2
Type
Oval duct
Current/Amps
A
0.4
V
120
Domestic/Import
Import
Duct Diameter
IN
4
Flow Rate
CFM
50/80/100
Frequency Rating
HZ
60
Grille Length
IN
13
Grille Material
Plastic
Grille Width
IN
14
