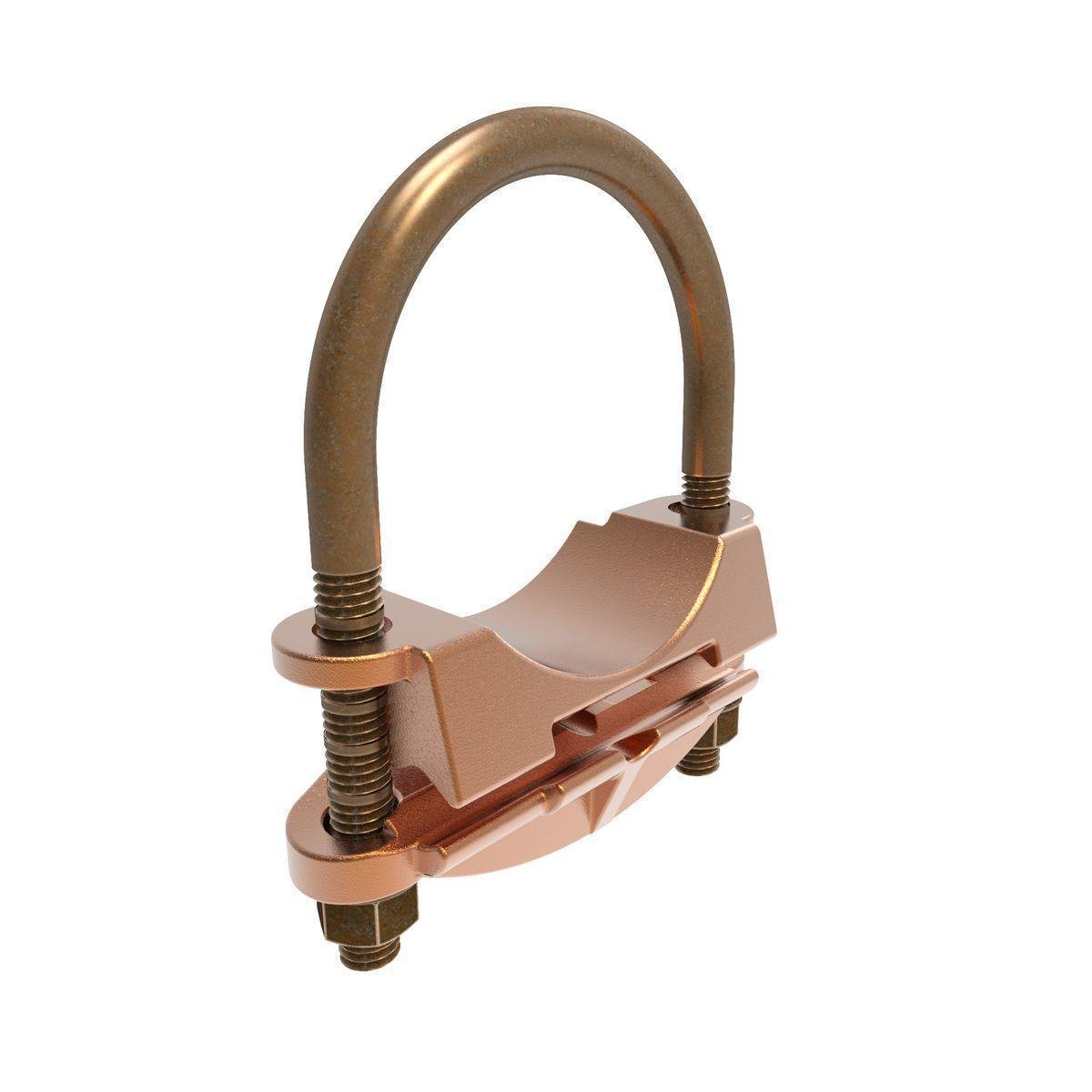

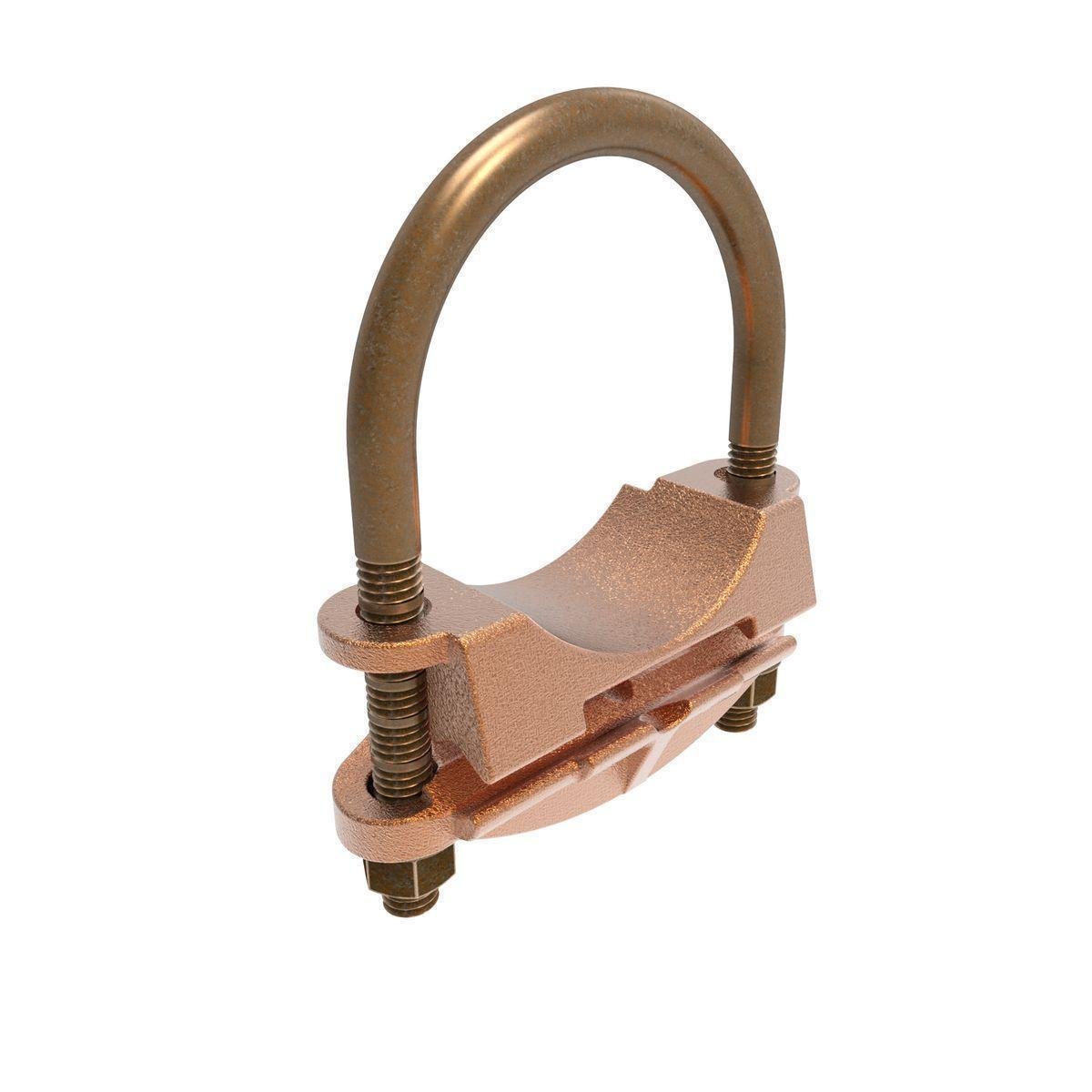

GAR1826 - Ground Clamp Copper 4 AWG-2/0 AWG Installation Torque Recommended Run in-lb240 LB in
Description
Specifications
1.31lb
4.25mm
3.75mm
1.56mm
For joining a range of cable, parallel or at right angles to rod or tube
Burndy
USA
MX
GROUNDING-BNDG CLAMP 2TO2-3/8IN
Permit entire connection to be buried in ground or concrete without danger of corrosion
Especially good for fence posts
3-gang/8 in bolt size
4 AWG solid to 2/0 AWG stranded (main/primary) conductor size
2 in IPS pipe
High copper alloy cast body with Durium U-bolts, nuts and lock washers
240 in-lb installation torque
Made of high strength copper alloy
High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube
Rated for Direct Burial in earth or concrete
Silicon Bronze Hardware
Hubbell
4.2500
IN
1.5600
IN
1
1.3100
LB
3.7500
IN
Burndy
SMALL TERMINALS & CONNECTORS
Conductor Size
AWG
4 to 2/0
Rod Size
IN
2 to 2-3/8
Series
GAR
Conductor Type
Copper/Stranded/Solid
Connection Type
Cable to Rod/Pipe
Dimensions
1.56 in L x 3.75 in W x 4.25 in H
Finish
Bright Dipped
Installation
Wrench
Material
Copper Alloy
Outside Diameter
IN
2.38
Pipe Size
IN
2
