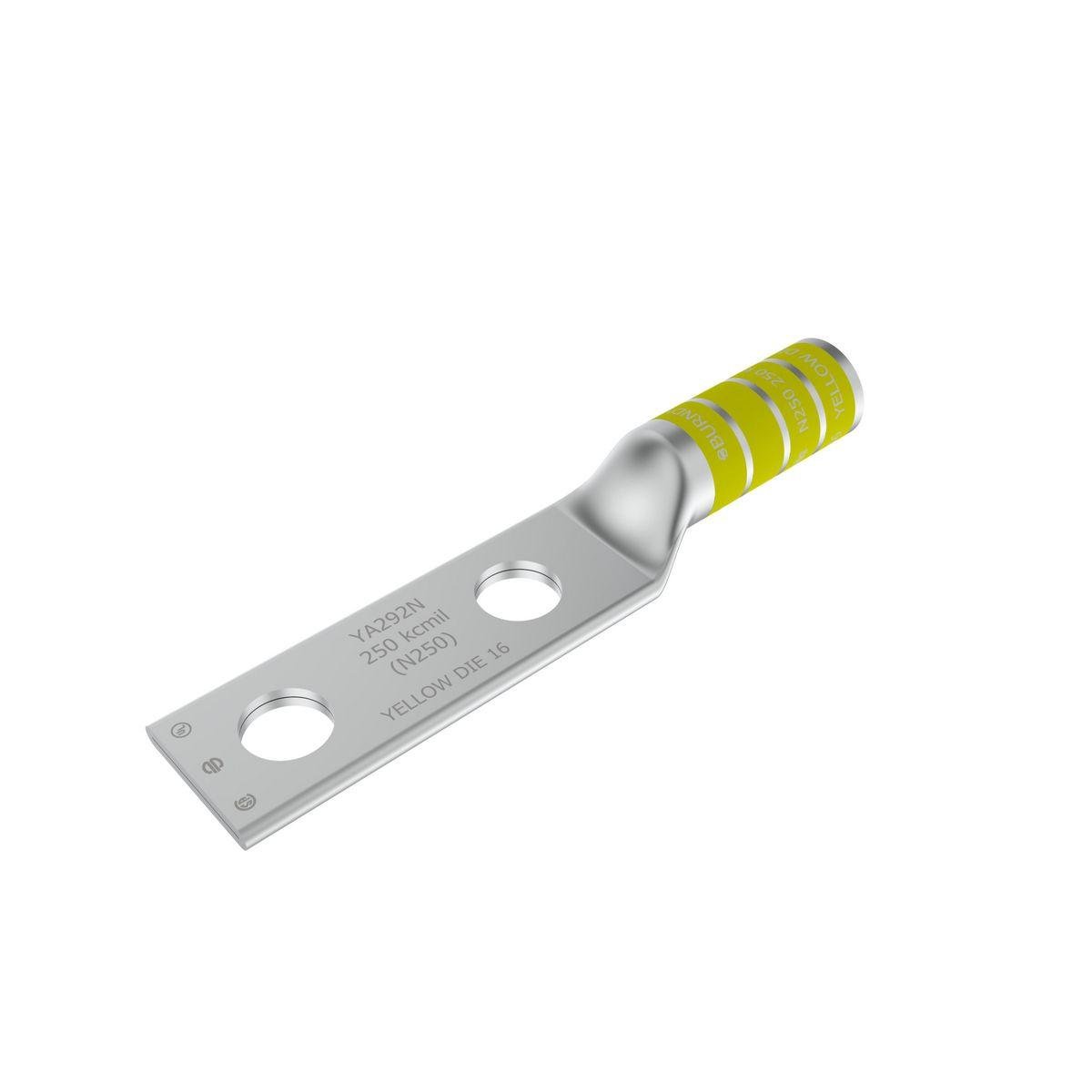

YA29-2N - Non-insulated; Tin Plated YA292N
Description
Specifications
0.25lb
0.75mm
1.11mm
5.21mm
For Code Conductor
Burndy
USA
US
LUG COMPRESSION 250KCMIL 16 1/2IN STD
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
2-Hole design prevents rotation
Hubbell
0.7500
IN
5.2100
IN
1
0.2500
LB
1.1100
IN
https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112
Burndy
SMALL TERMINALS & CONNECTORS
Barrel Size
1.62 in L
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
1.11 in W x 0.16 in THK
Tongue Type
Standard
Type
2-Hole
Voltage Rating
600 V AC to 35 kV
Barrel Type
Chamfered/Long
Color
Yellow
Conductor Size
kcmil
250
Die Code
16
Material
Tin Plated Copper
Overall Length
IN
5.21
Series
YA-2N
Specifications
1.11 in Pad, 1-3/4 in Hole Spacing
