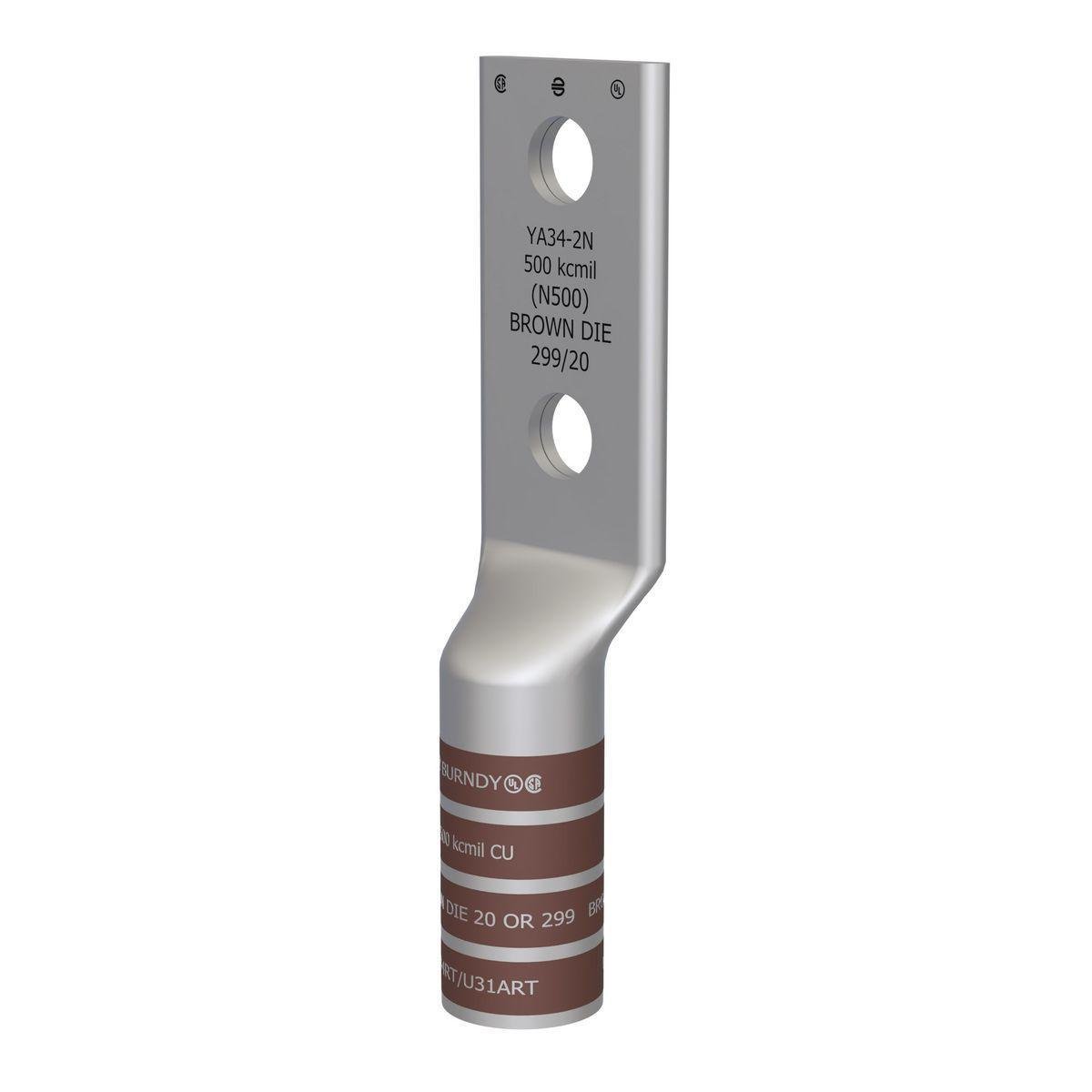

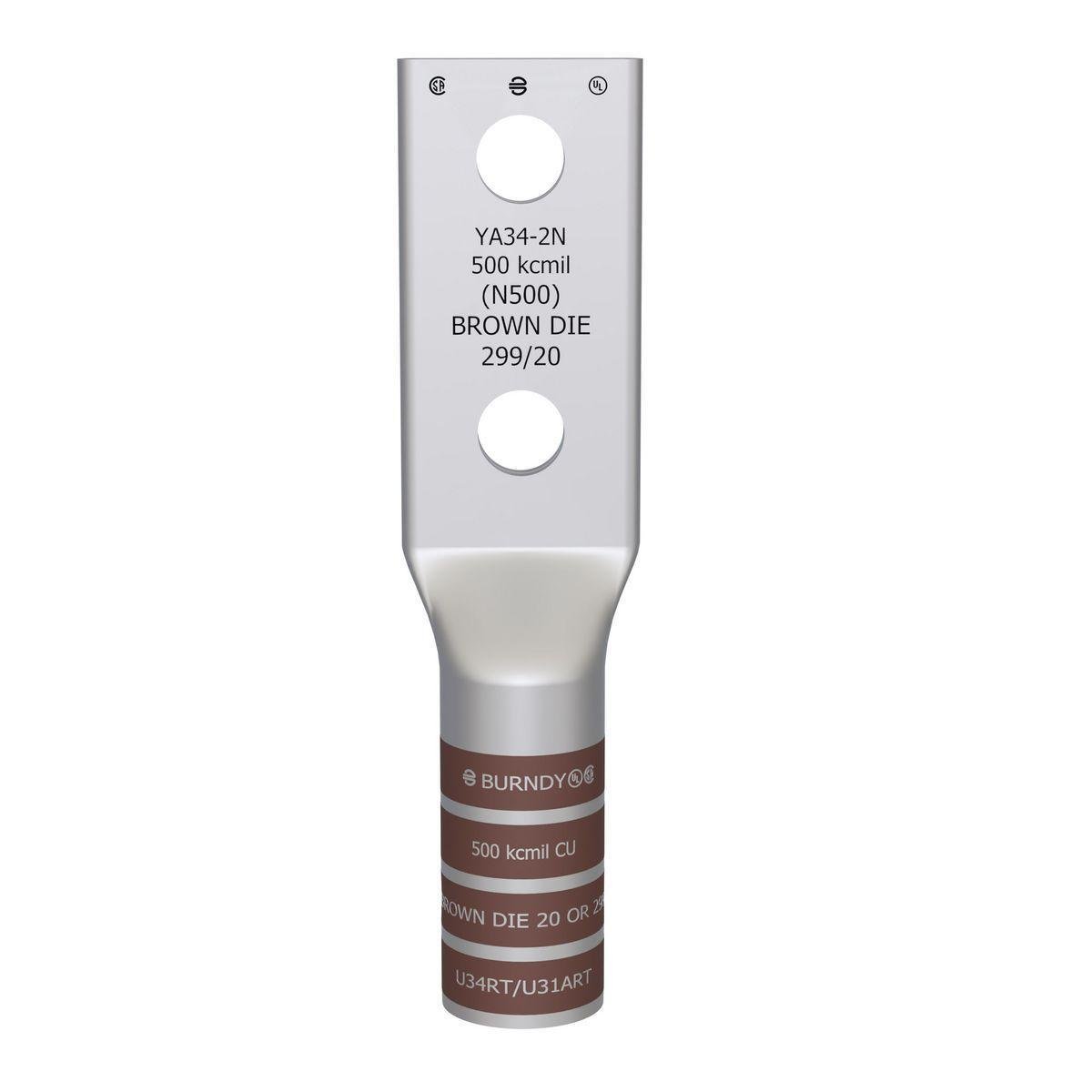

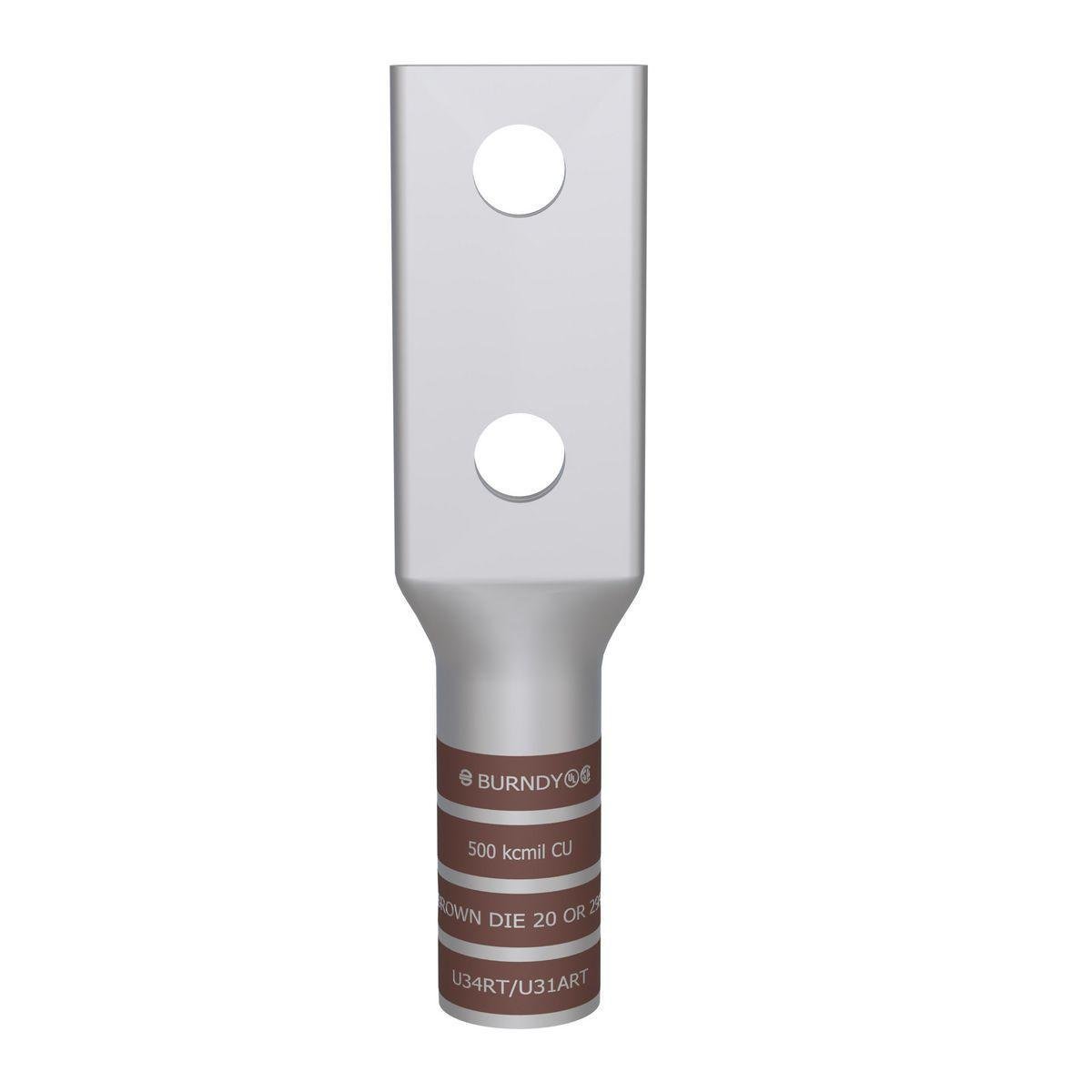

YA342N - Non-insulated; Tin Plated YA342N
Description
Specifications
0.63lb
1.55mm
6.06mm
For Code Conductor
Burndy
USA
US
LUG COMPR CONN 500KCMIL STRD COPPER 20
Connectors are clearly marked with stamping and barrel color coding
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Without inspection window
2-Hole design prevents rotation
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Hubbell
IN
6.0600
IN
1
0.6300
LB
1.5500
IN
https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112
Burndy
SMALL TERMINALS & CONNECTORS
Barrel Size
2-1/4 in L
Series
YA-N
Specifications
2-1/2 in L Wire Strip
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
1.55 in W x 0.23 in THK
Tongue Type
Straight
Type
2-Hole
Voltage Rating
V AC
600 to 35000
Barrel Type
Chamfered/Long
Color
Brown
Conductor Size
kcmil
500
Conductor Type
Stranded Copper
Die Code
20
Material
Tin Plated Copper
Mounting Hole Size
IN
1/3/2004
Overall Length
IN
6.06
