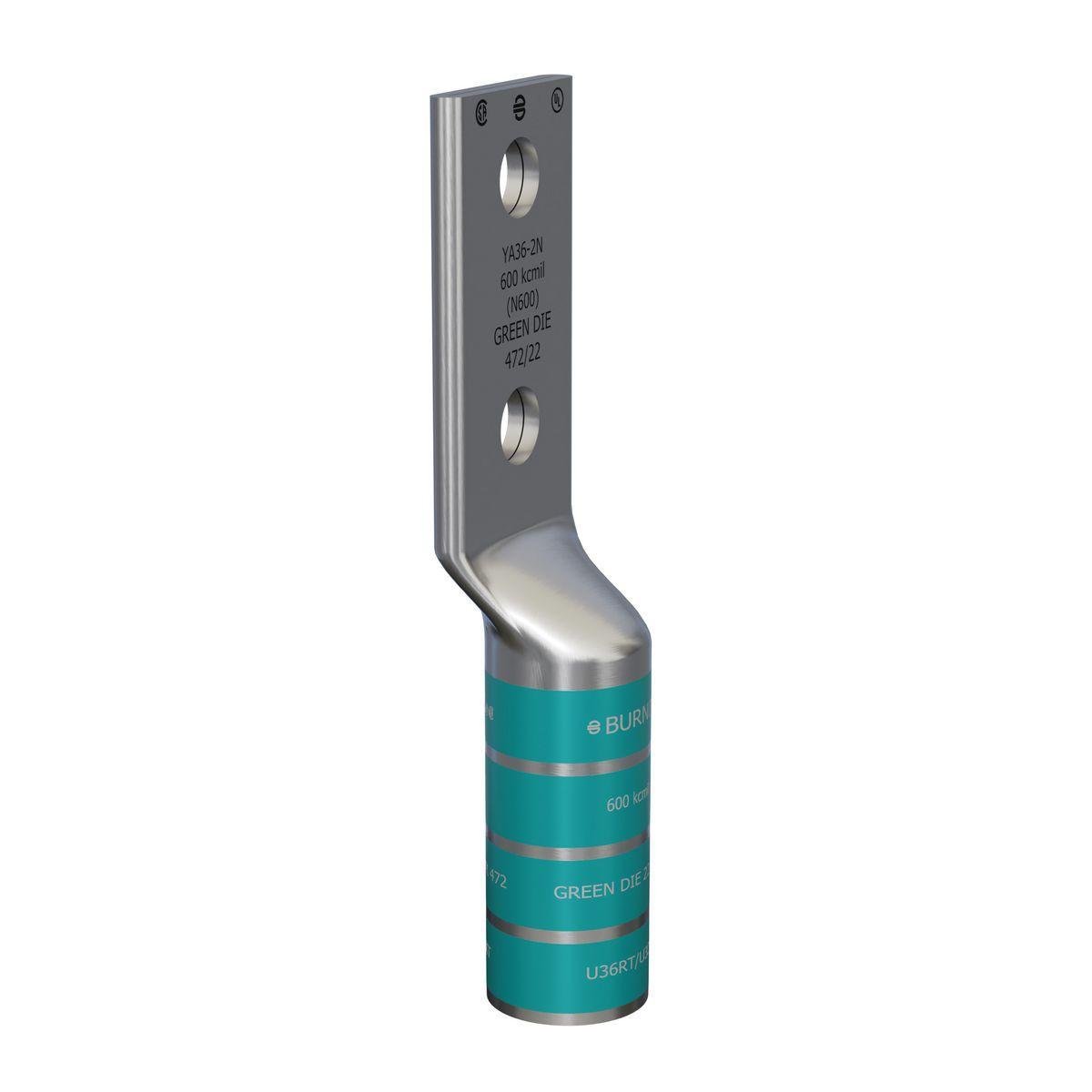

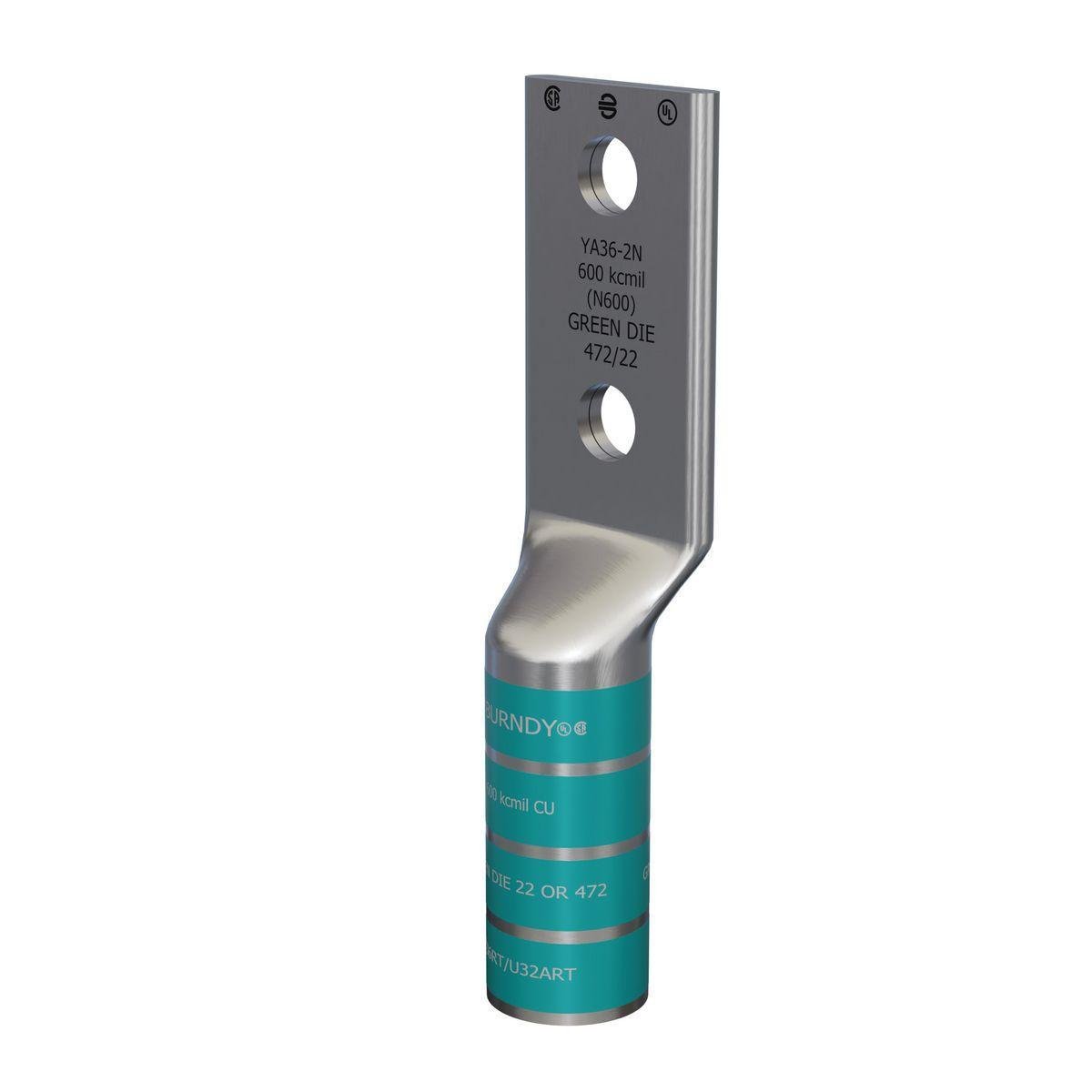

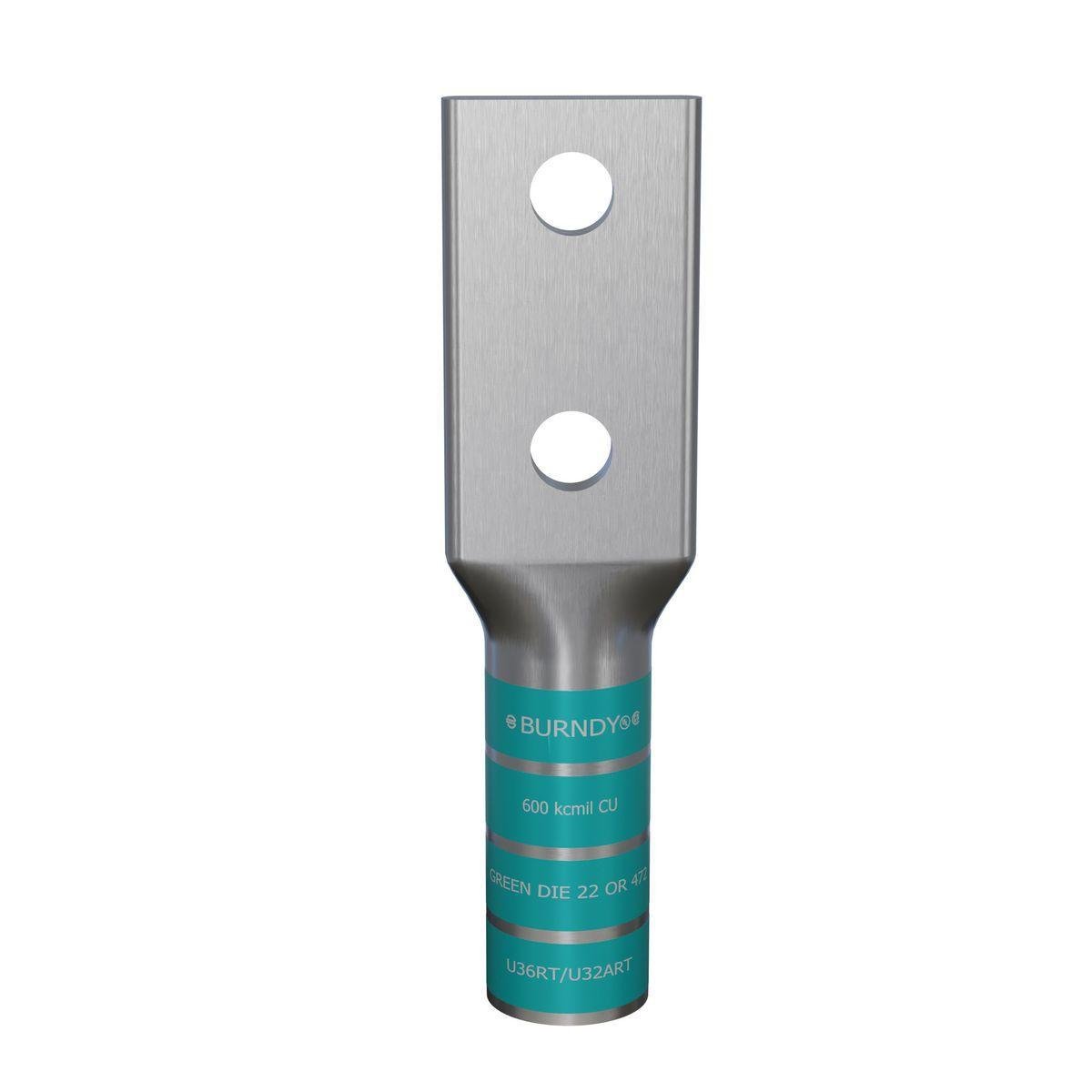

YA36-2N - Non-insulated; Tin Plated YA362N
Description
Specifications
0.89lb
1.19mm
1.74mm
6.59mm
For Code Conductor
Burndy
USA
MX
LUG COMPRESSION 600KCMIL STRD COPPER GRN
Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with stamping and barrel color coding
2-Hole design prevents rotation
Hubbell
1.1900
IN
6.5900
IN
1
0.8900
LB
1.7400
IN
https://players.brightcove.net/2519281010001/S1rfC16yx_default/index.html?videoId=6319929968112
Burndy
SMALL TERMINALS & CONNECTORS
Barrel Size
2.69 in L
Specifications
1.74 in Pad, 1-3/4 in Hole Spacing
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
1.74 in W x 0.27 in THK
Tongue Type
Standard/Straight
Type
2-Hole
Voltage Rating
600 V AC to 35 kV
Barrel Type
Chamfered/Long
Color
Green
Conductor Size
kcmil
600
Conductor Type
Stranded Copper
Die Code
22/472
Material
Tin Plated Copper
Overall Length
IN
6.59
Series
YA-2N
