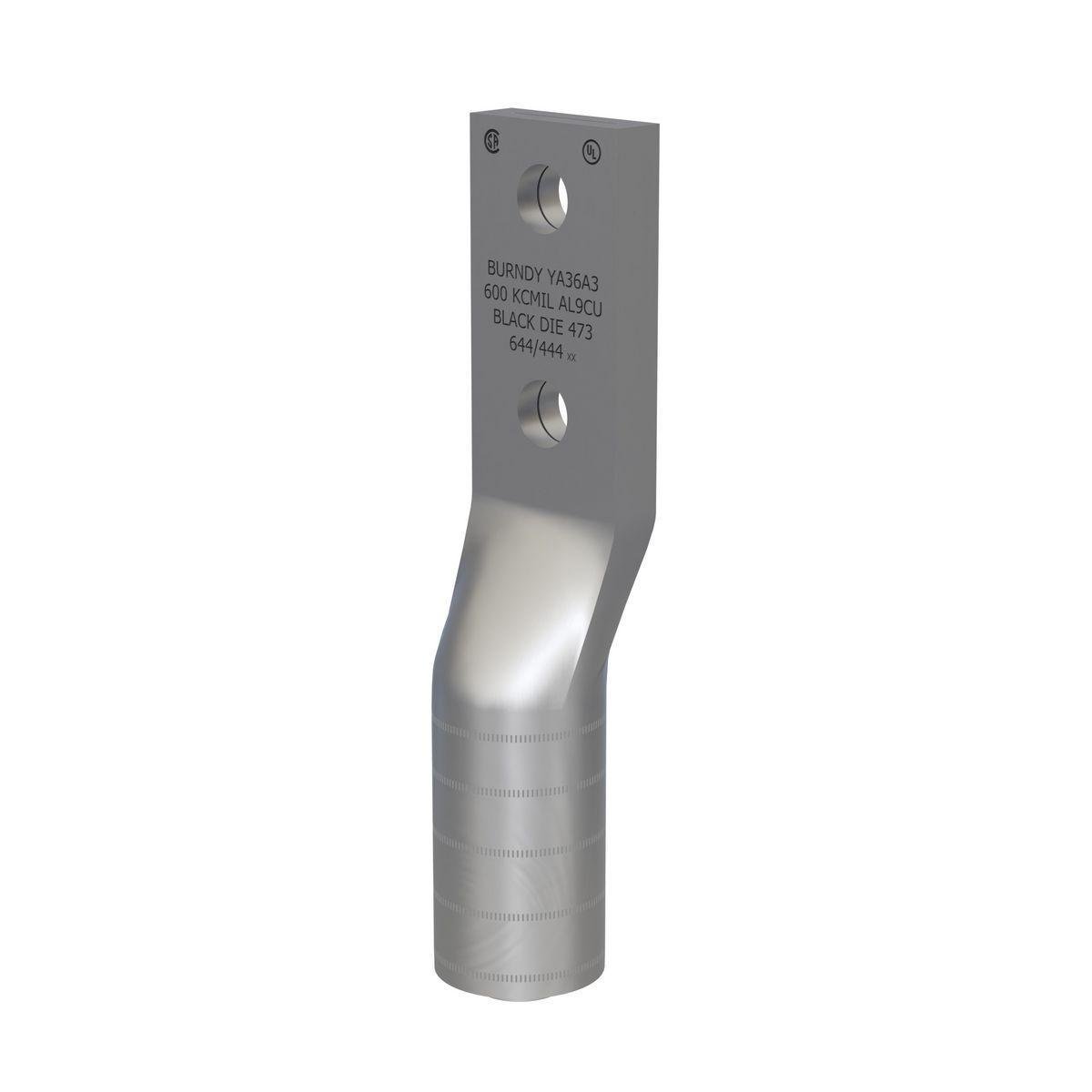

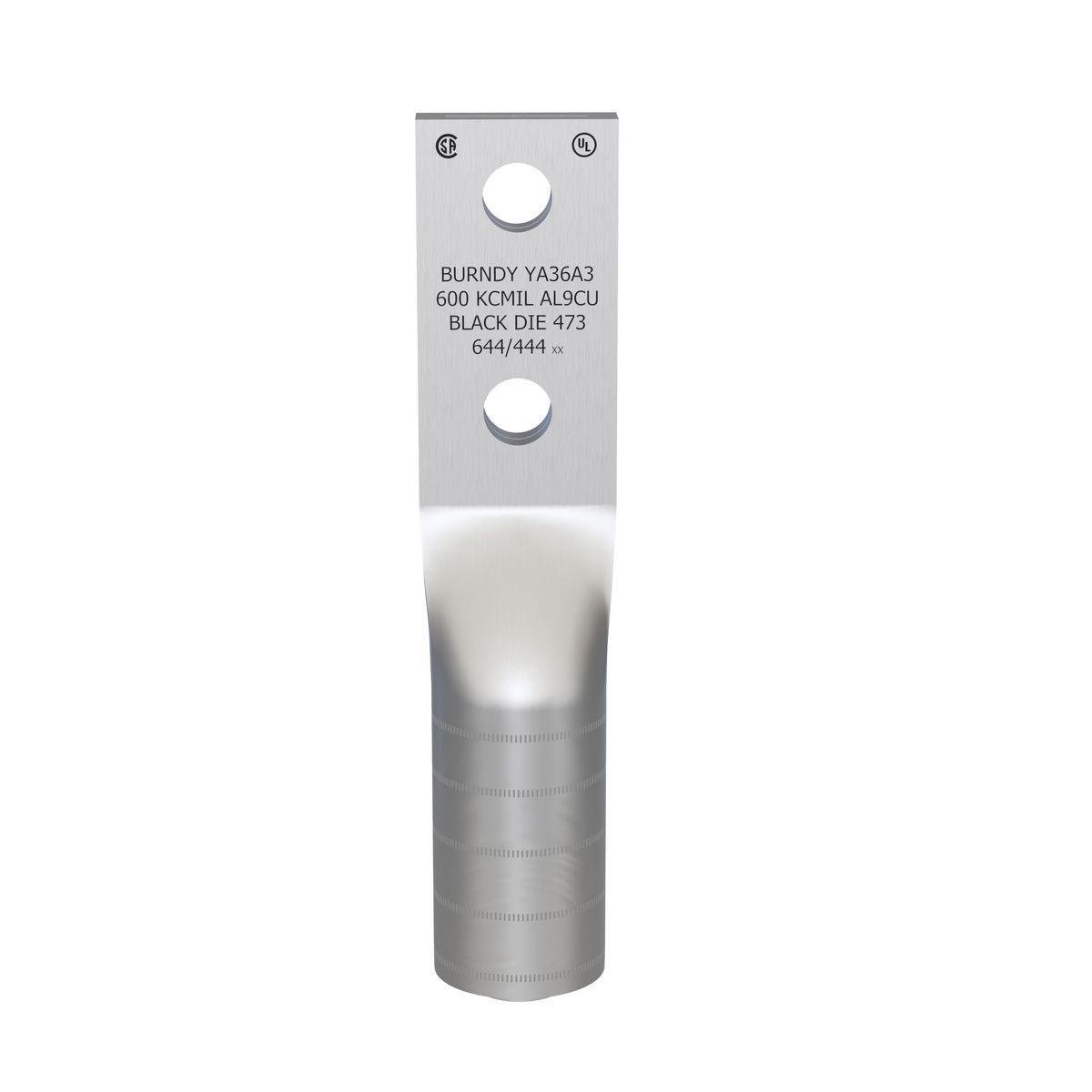

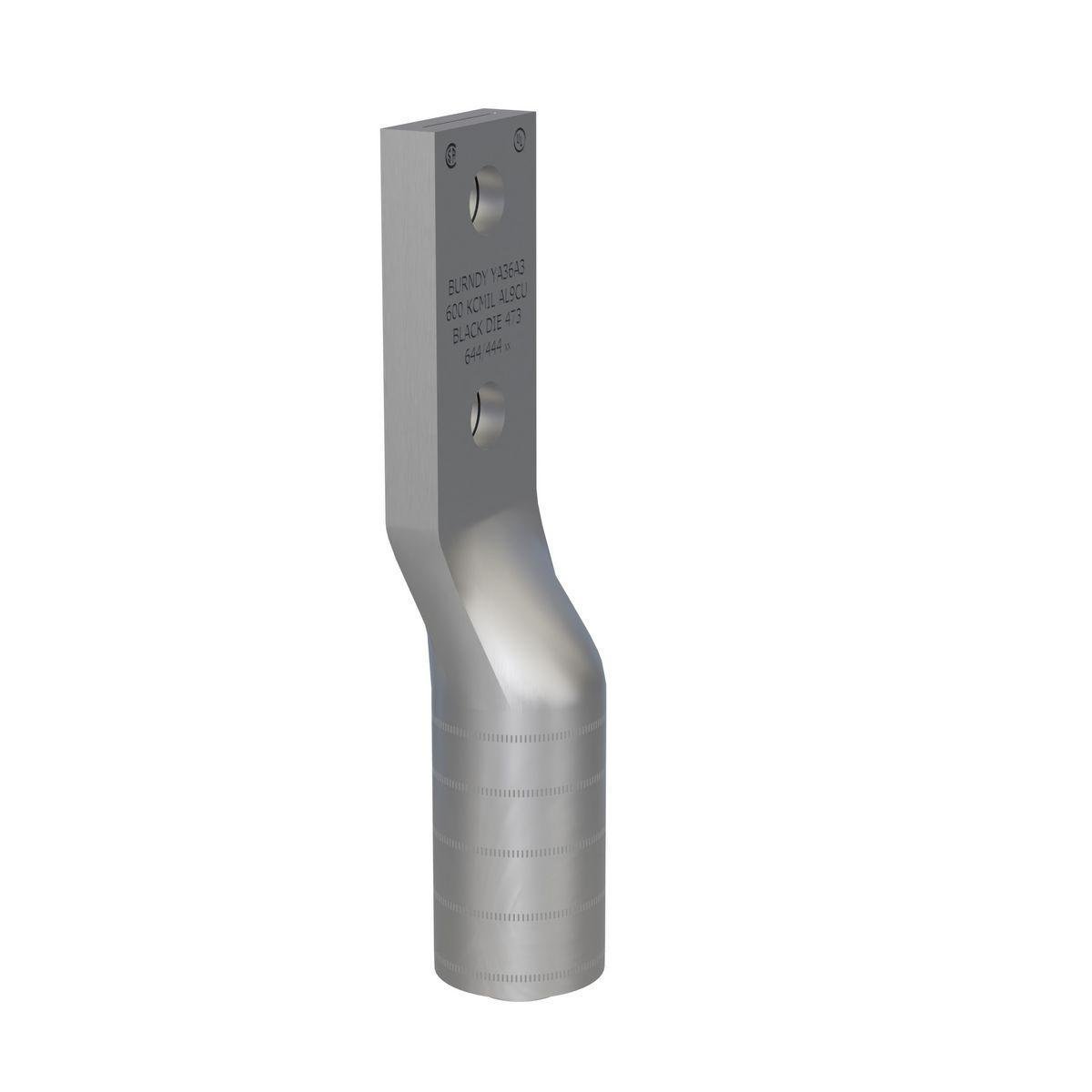

YA36A3 - Aluminum Compression Lug, 2 Hole w/o Inspection Window, 600 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Al/Cu Rated, Tin Plated
Description
Specifications
0.69lb
1.44mm
1.62mm
7.09mm
For Aluminum and Copper Conductors
Burndy
USA
MX
LUG COMPRESSION 600KCMIL COPPER/STRD AL
Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with wire size, die index, color code, and crimp location bands
Factory pre-filled with PENETROX Type A13 oxide inhibitor
Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
Hubbell
1.4400
IN
7.0900
IN
1
0.6900
LB
1.6200
IN
Burndy
SMALL TERMINALS & CONNECTORS
Barrel Size
2.47 in L
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
3.15 in L x 1.62 in W x 0.52 in THK
Tongue Type
Standard/Straight
Type
2-Hole Uninsulated
Voltage Rating
600 V AC to 35 kV
Barrel Type
Beveled
Color
Black
Conductor Size
kcmil
600
Conductor Type
Copper/Stranded Aluminum
Die Code
473
Material
Aluminum
Overall Length
IN
7.09
Specifications
2-7/8 in L Wire Strip
