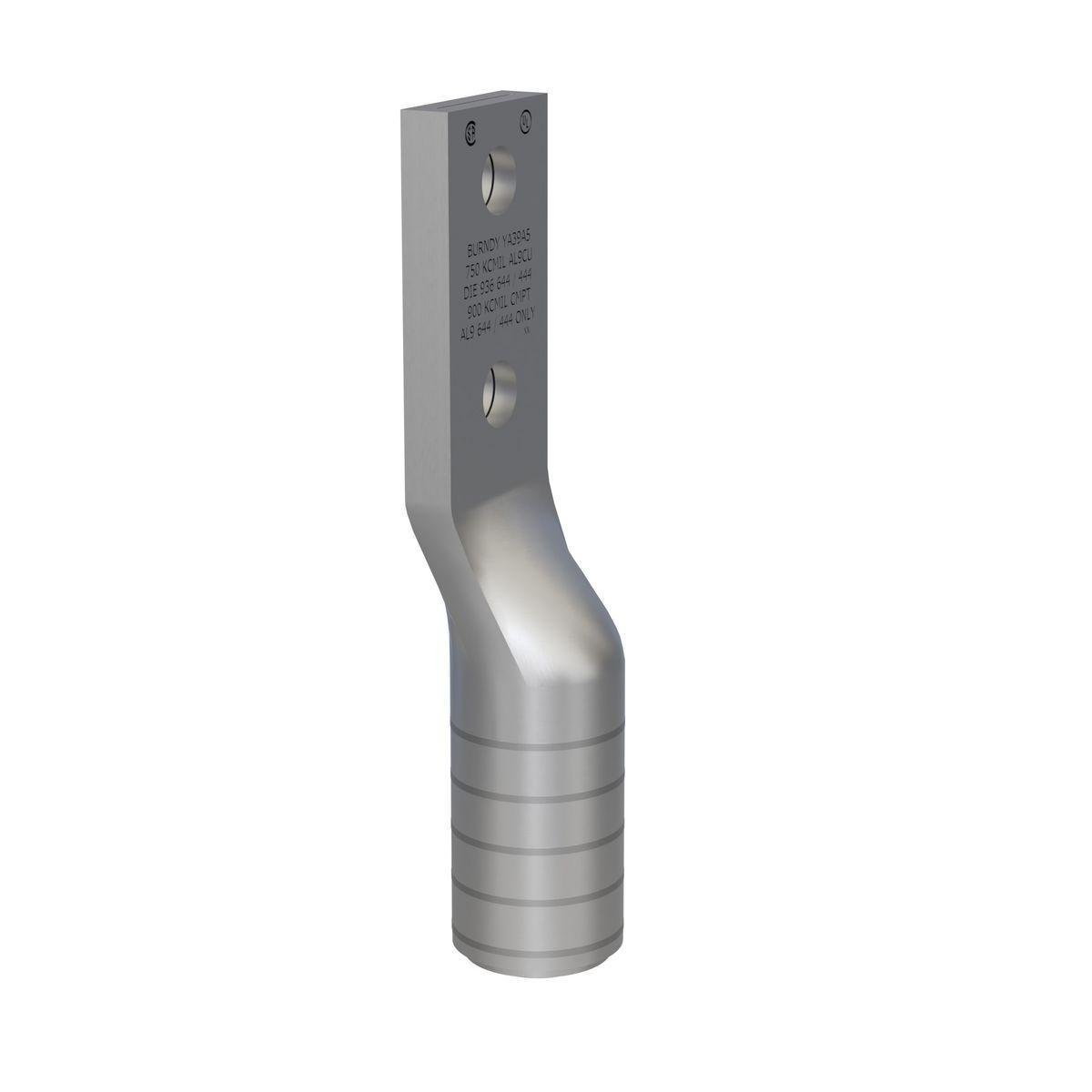

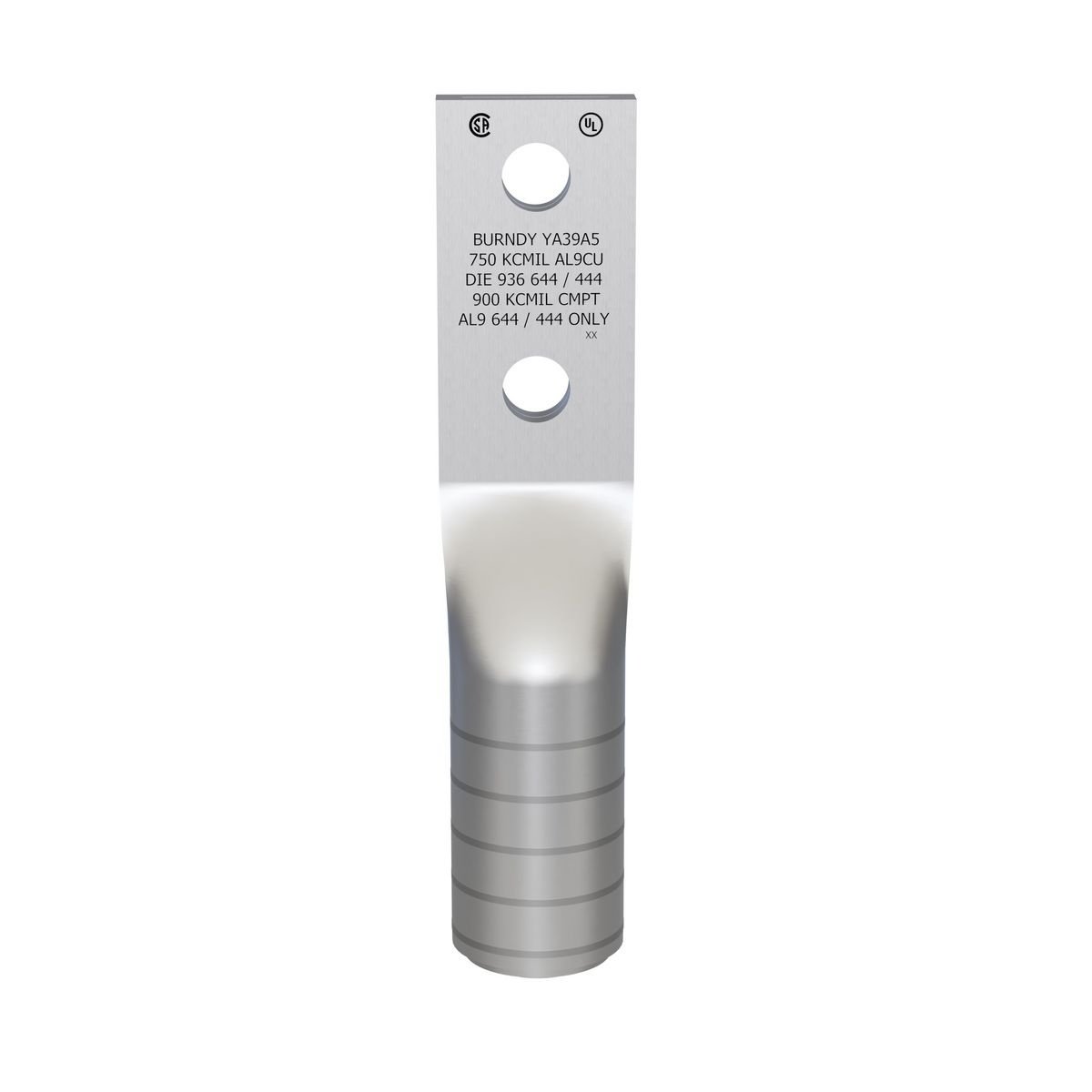

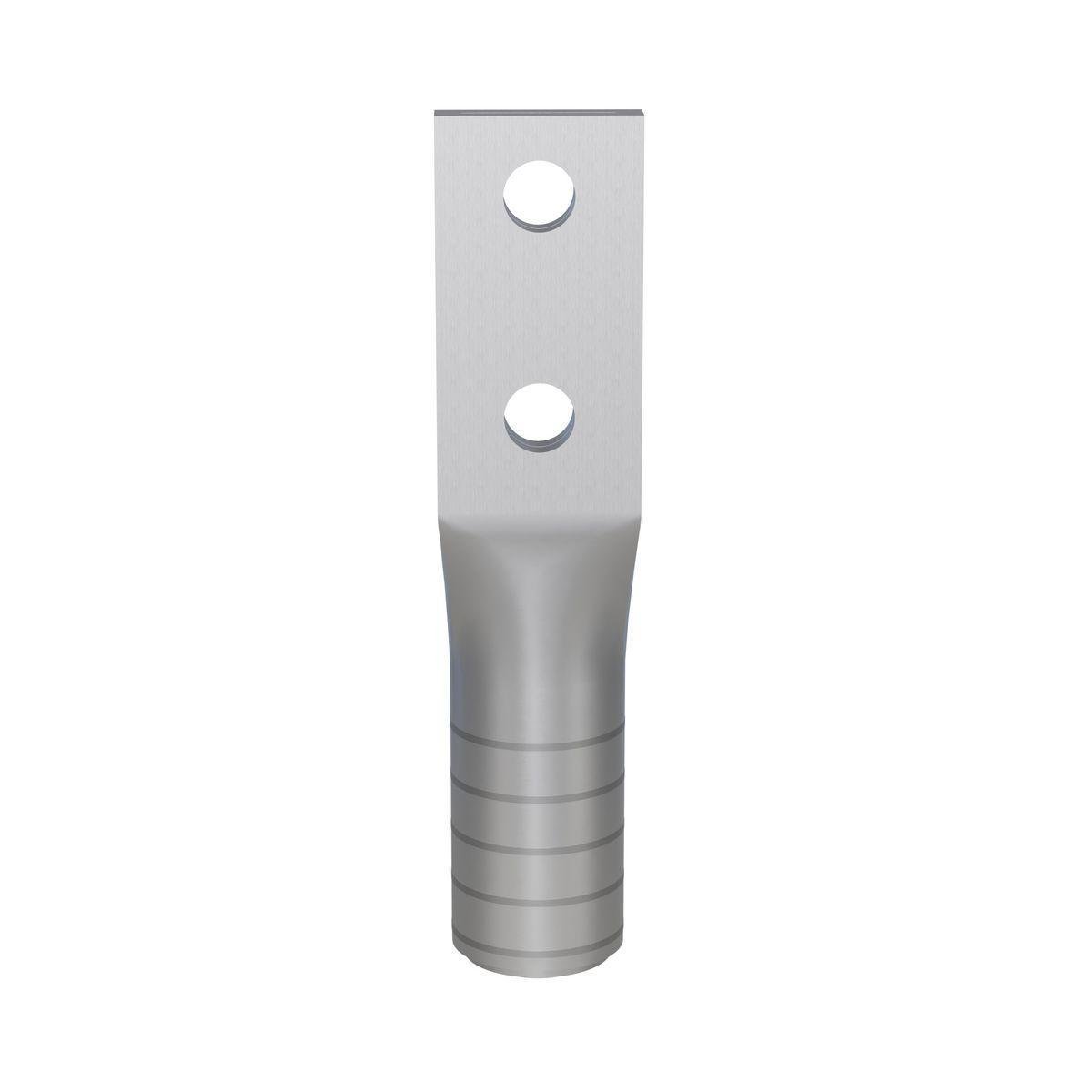

YA39A5 - Aluminum Compression Lug, 2 Hole w/o Inspection Window, 750 kcmil, 1/2" Stud, 1-3/4" Stud Hole Spacing, Al/Cu Rated, Tin Plated
Description
Specifications
0.7lb
1.46mm
1.62mm
7.07mm
For Aluminum and Copper Conductors
Burndy
USA
MX
LUG COMPRESSION 700KCMIL AL/COPPER
Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damage of the wire strands during insertion
Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
Connectors are clearly marked with wire size, die index, color code, and crimp location bands
Factory pre-filled with PENETROX Type A13 oxide inhibitor
Color coded end caps are factory inserted in the barrels to match the die color code and prevent foreign materials from entering the barrel
Aluminum oxidation is not easily detected but causes resistance in a connection, it is imperative the proper preparation takes place prior to making an aluminum-to-aluminum connection
Hubbell
1.4600
IN
7.0700
IN
1
0.7000
LB
1.6200
IN
Burndy
SMALL TERMINALS & CONNECTORS
Barrel Size
2.46 in L
Specifications
2-7/8 in L Wire Strip
Stud Size
IN
2-Jan
Temperature Rating
deg C
90
Tongue Size
3.15 in L x 1.62 in W x 0.43 in THK
Tongue Type
Standard/Straight
Type
2-Hole Uninsulated
Voltage Rating
600 V AC to 35 kV
Barrel Type
Beveled
Color
Yellow
Conductor Size
kcmil
700
Conductor Type
ALUMINUM/COPPER
Die Code
936
Material
Aluminum
Overall Length
IN
7.07
Series
YA-A
