Burndy

YGHC29C29 - Compression YGHC29C29

Category Small Terminals & Connectors
Picture of YGHC29C29 - Compression YGHC29C29 Picture of YGHC29C29 - Compression YGHC29C29
Picture of YGHC29C29 - Compression YGHC29C29 Picture of YGHC29C29 - Compression YGHC29C29
Picture of YGHC29C29 - Compression YGHC29C29 Picture of YGHC29C29 - Compression YGHC29C29
Picture of YGHC29C29 - Compression YGHC29C29 Picture of YGHC29C29 - Compression YGHC29C29
Burndy

YGHC29C29 - Compression YGHC29C29

Item Code: 52820
Category Small Terminals & Connectors
Manufacturer Hubbell
Manufacturer Ref YGHC29C29

Document
Document
Call for Availability
Add to Favorites
Compare

Description

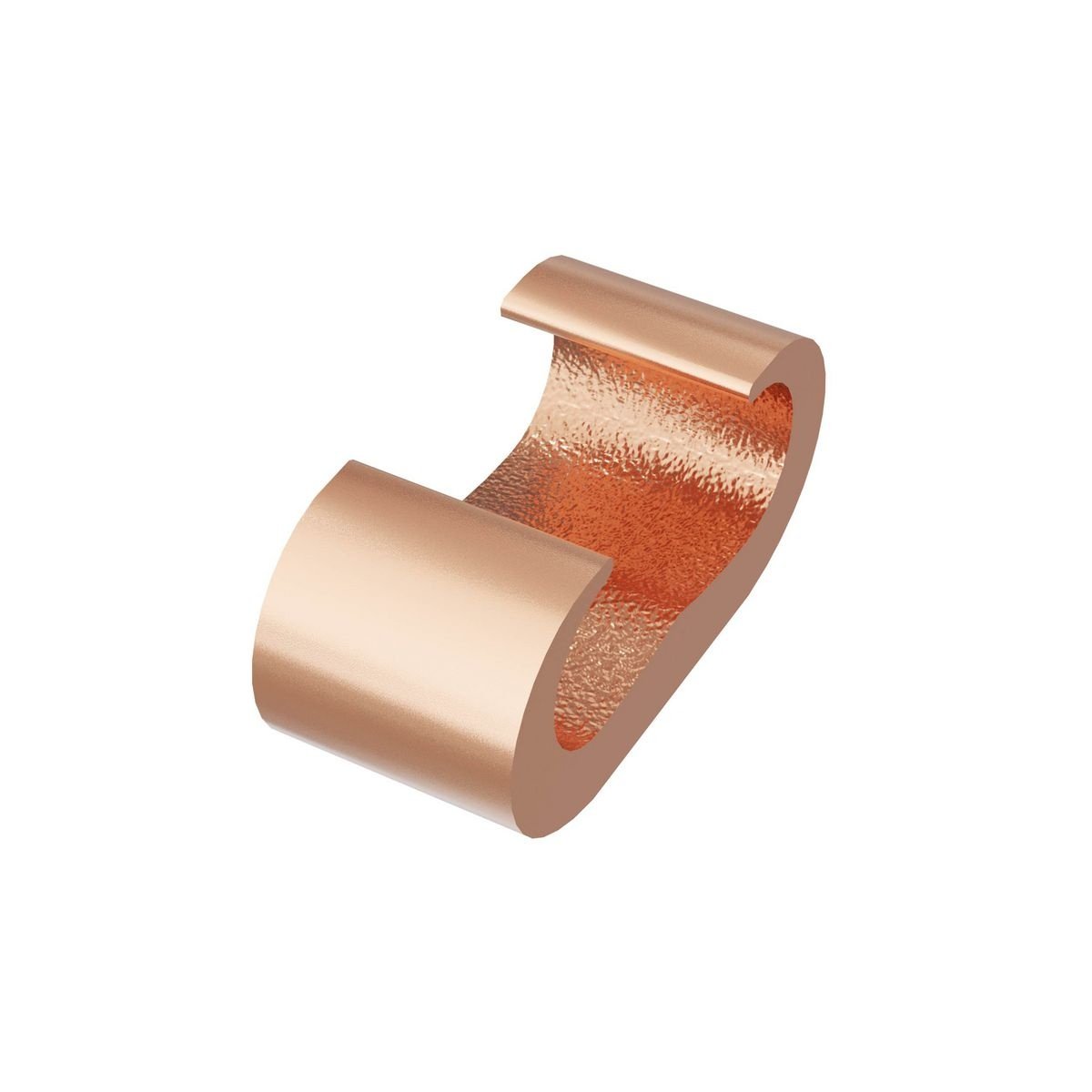

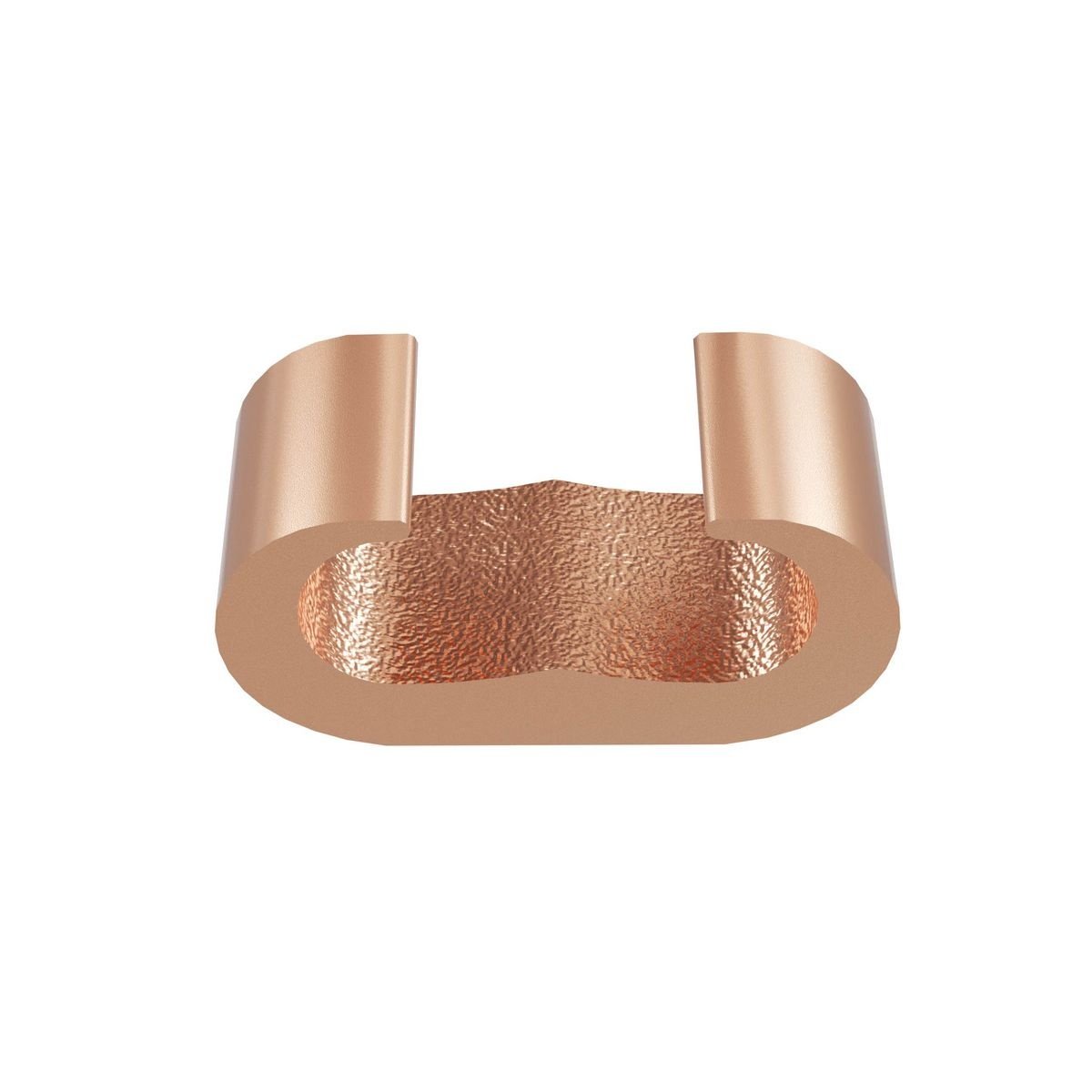

Copper Compression C Connector, 3/0 AWG(Str) - 250 kcmil, 1/2" or 5/8" Rod (Run) & 3/0 AWG(Str) - 250 kcmil (Tap).

Specifications

Weight

0.25lb

Height

2.06mm

Width

0.88mm

Length

2.06mm

AD Application

For Direct Burial Applications In Earth Or Concrete

AD Brand (Description)

Burndy

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

COMPR C-TAP C 3/0AWGTO250KCMIL

AD Item Features 01

CSA certified for wire to ground rod

AD Item Features 02

Pre-filled with PENETROX® compound and strip sealed

AD Item Features 03

4/0, 3/0 AWG, 250, 300 kcmil, 95 mm, 120 mm tap size

AD Item Features 04

Accommodates all cable combinations from 6 AWG solid through 500 kcmil

AD Item Features 05

95 to 120 sq-mm conductor run

AD Item Features 06

C-shaped opening permits placing two continuous parallel cables into conductor groove

AD Item Features 07

For HYPRESS, Y35, Y39, Y750, PAT750 tool, U-C die, Y45 tool, U-C die with PT6515 adapter, y46 tool and U-C die with puadp-1 adapter

AD Item Features 08

Irreversible compression ground tap figure C connectors

AD Manufacturer (Description)

Hubbell

AD Package Height UOM

IN

AD Package Length

2.0600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2500

AD Package Weight UOM

LB

AD Package Width

0.8800

AD Package Width UOM

IN

Brand

Burndy

Category

SMALL TERMINALS & CONNECTORS

Spec 1 Attribute

Conductor Type

Spec 1 Attribute Value

Commercial Stranded/Metric Copper

Spec 10 Attribute

Type

Spec 10 Attribute Value

Type YGHC-C

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

0.88 in L x 2.06 in H

Spec 3 Attribute

Finish

Spec 3 Attribute Value

Unplated

Spec 4 Attribute

Main/Run Size

Spec 4 Attribute Value

3/0 AWG to 250 kcmil

Spec 5 Attribute

Material

Spec 5 Attribute Value

Copper

Spec 6 Attribute

Series

Spec 6 Attribute Value

YGHC-C

Spec 7 Attribute

Shape

Spec 7 Attribute Value

C

Spec 8 Attribute

Specifications

Spec 8 Attribute Value

997 Element A Die Index, 1/2 to 5/8 in Ground Rod

Spec 9 Attribute

Tap Size

Spec 9 Attribute Value

3/0 AWG to 300 kcmil
