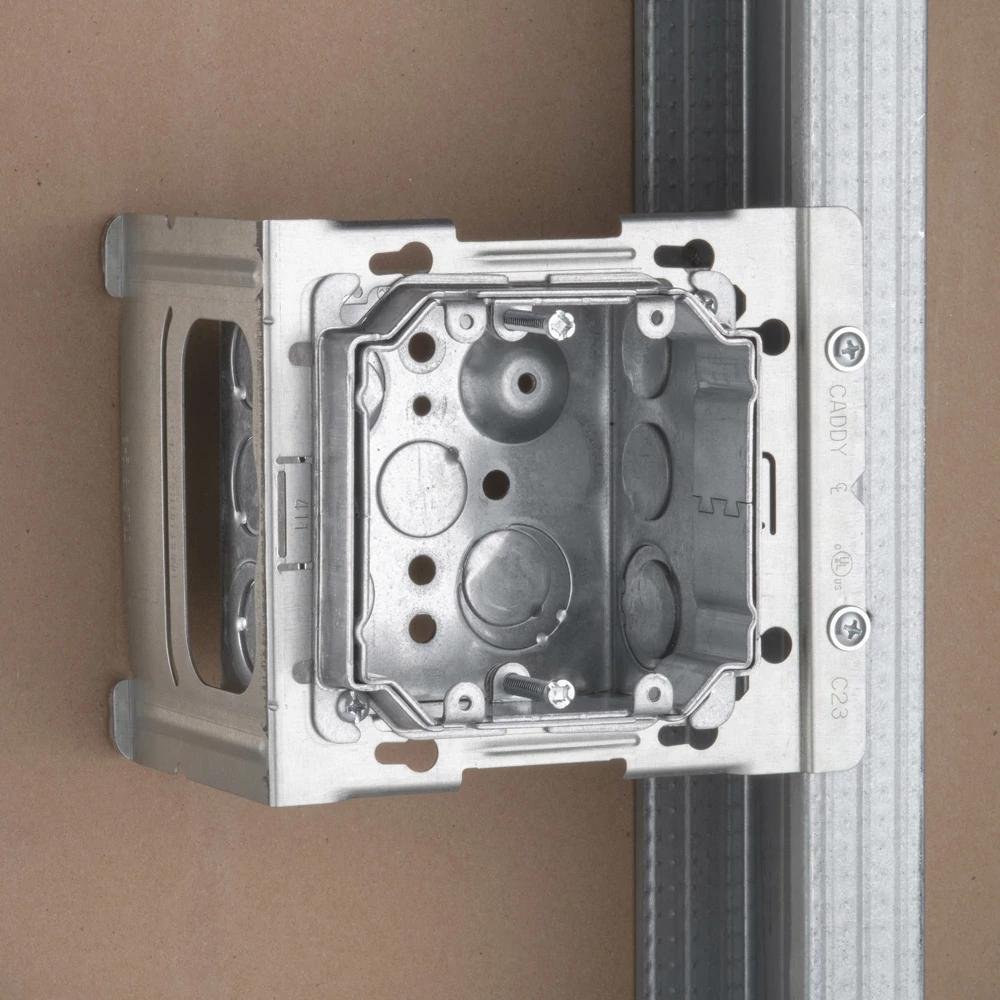

C23 - Electrical box bracket to stud, 2 1/2", 3 5/8" wall depth, 3.51"
Description
Purchasing Quantities
1
100
Specifications
0.1lb
89mm
146mm
14850521
Electrical Fixing and Fastening Applications
nVent CADDY
Grainger - 52JH49
USA
US
Catalog
Specification Sheet
Instruction/Installation Manual
Owners/User Manual
14850521
BRACKET BOX ELECTRICAL 4IN 4-11/16IN
Improved keyhole pattern to make mounting of 4 11/16 in boxes easier
Box Lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
Designed with thicker steel to significantly increase rigidity and help prevent box movement and trim out issues
Unique "step in" feature at the top and bottom of the bracket to easily access the set screws
Works with both standard and adjustable single and double gang mud rings
Additional bend points on C4 and C6 brackets for greater versatility
C23 Electrical Box Bracket, 4 in, 4-11/16 in Box, Stud Mount, Steel, Pre-Galvanized ; nVent ; nVent CADDY ; C23 ; 782856864257 ; Box Mounting Brackets
nVent
IN
146.0000
IN
1
89.0000
IN
C23 ; 14850521 ; 782856864257 ; 78285686425
nVent CADDY
BAR HANGERS & OUTLET BOX ACCESSORIES
Box Size
4 in, 4-11/16 in
Dimensions
5.75 in W x 3.51 in D x 5 in H
Finish
PRE-GALVANIZED
Material
Steel
Mounting Type
Stud
Series
C Series
Specifications
2-1/2 in and 3-5/8 in D Stud Wall
Suitable For Use With
Electrical Box
