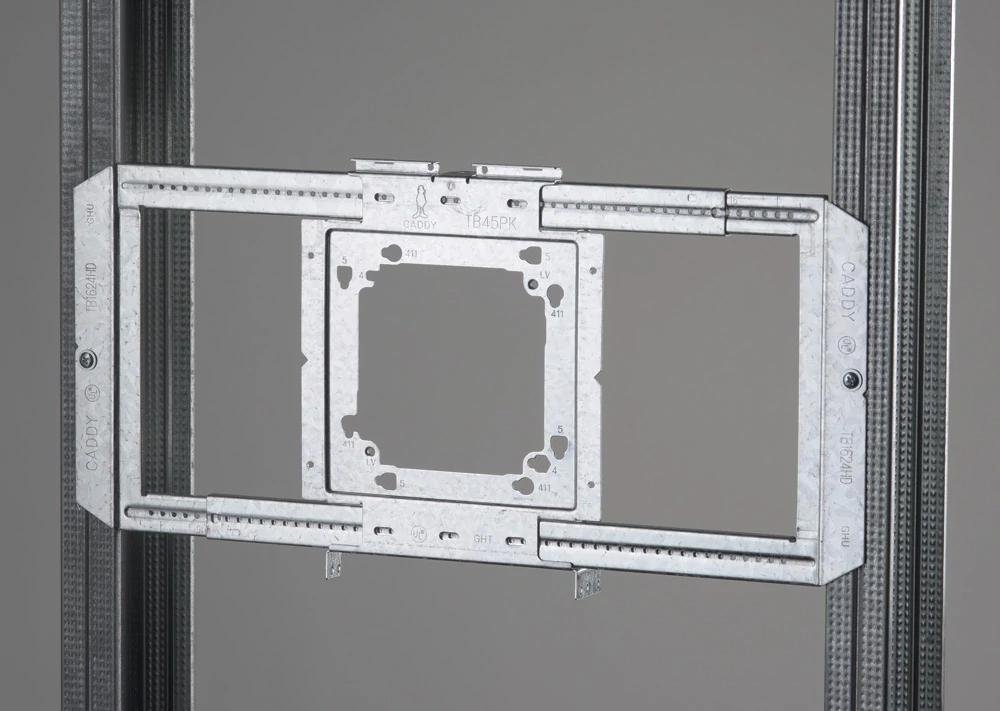

TB45PK - Box Mounting Plate with Far Side Support, 4", 4 11/16", 5" Box
Description
Specifications
320
320
Data Communication and Low Voltage, Electrical Fixing and Fastening Applications
nVent CADDY
USA
CN
PLATE MTG BOX 4IN 4-11/16IN STL TB45PK
Can also be mounted directly to metal or wood studs
Innovative far side support allows bracket to be installed on virtually any stud depth and up to 3 in wide studs
Key holes provide ease of installation and positive location when mounting boxes
Screws can be removed and reinstalled in extruded holes multiple times without compromising holding strength
Accepts vertically or horizontally mounted single and double gang adjustable mud rings
Box Lock tab secures box to bracket during assembly and allows mud ring to be removed following installation on the stud, providing easy frontal access to the inside of the box
nVent
IN
320.0000
IN
1
320.0000
IN
https://youtu.be://qLurY3aSHfQ
nVent CADDY
Dimensions
6.3 in L
Finish
PRE-GALVANIZED
Material
Steel
Specifications
4 in, 4-11/16 in, 5 in Box Size
Suitable For Use With
Heavy Duty Telescoping Bracket and Metal or Wood Stud
Type
Snap-On
