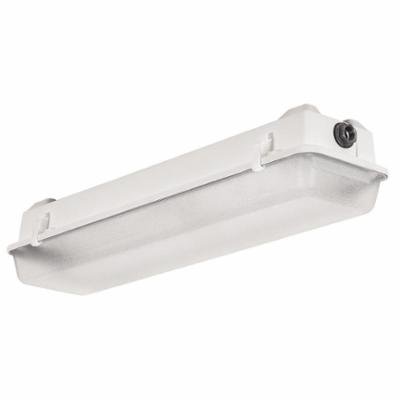

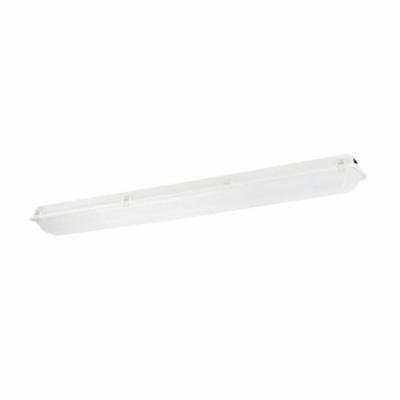

XEM4-232-RA-EU 120/277V - Extreme Environment XEM4-232-RA-EU
Description
Specifications
20lb
4.5mm
7.38mm
52.13mm
Indoor, Outdoor, Wet Locations, Commercial Lighting Space Applications
Columbia Lighting
USA
MX
Surface Mounting Bracket
FIXTURE GASKETED ENCLOSED 2 T8 FLUOR WHT
Enclosed and gasketed industrial
Fiberglass housing with F1 weatherability rating, standard
Smooth housing for ease of cleaning
Gasket is non-porous to ensure seal
Impact modified acrylic lens
Lens selections include ribbed clear or frost, optically clear deep profile or deep profile frost
Lens firmly secured with tamper resistance ready polycarbonate latches
Removable gear tray electrical access for modular replaceability
4 ft L
Dimming to 5% on 0 to 10 VAC controls standard, step dim (SDIM) option available, 100/40% levels
Driver and LED boards are accessible from below, LED boards are individually replaceable if required
Combinations are available providing as much as 117 Lumens/W delivered
Nominal lumen packages range from 3500 to 7000 Lumens, providing flexibility to optimize light levels for a specific application
LED sources provide full illumination in low temperature applications, unlike fluorescent sources that provide reduced light levels in very cold environments
LED sources can be frequently switched with no negative impact on life
Minimum 80 CRI provides smooth color rendering that rivals or exceeds performance of fluorescent lamps
Light output from the luminaire contains no infrared or ultraviolet energy, so the light won't heat or fade the objects being lit
White Color
Enclosed and gasketed fluorescent
Current
4.5000
IN
52.1300
IN
1
20.0000
LB
7.3800
IN
Columbia
LED INDUSTRIAL LIGHTING
Average Life
HR
50000
Lamp Type
T8
Lamp Wattage
W
14/17/28/25/30/32/54/59/86
Lens Type
Clear Ribbed Acrylic/Impact-Resistant
Light Color
White
Lumens
Lumens
5129
Mounting Type
Surface/Suspended
Number of Lamps
2
Series
XEM
Type
Enclosed and Gasketed Fiberglass Fixture/Sealed Industrial Vaporlume
Voltage Rating
V AC
120 To 277
Ballast Type
Instant Start Electronic
Color Rendering Index (CRI)
80
Color Temperature
K
4000
Dimensions
4 in L x 6-7/8 in W x 4-3/8 in H
Enclosure Type
IP65/IP67
Housing Finish
High Reflectance Baked Enamel
Housing Material
Fiberglass
Lamp Base Type
Bi-Pin
