Description
Specifications
3.44lb
2.25mm
5.25mm
17mm
Conditioned Space, Emergency Lighting Operations and Damp Locations Applications
Dual-Lite
USA
MX

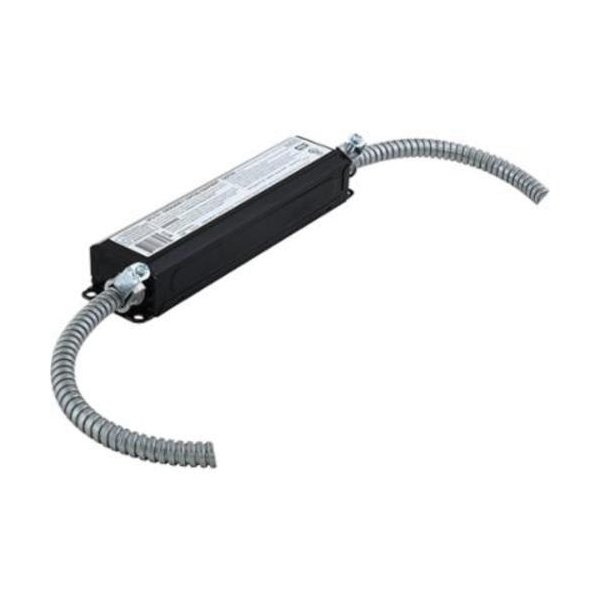

PACK BAT EMER NICD 120/277VAC STL
300 to 860 lumens initial output
One number of lamps in emergency mode
0 To 50 Deg C Operating Temperature
CFL 4-pin and long CFL 4-pin compact fluorescent lamp
50/60 Hz frequency
4 W input wattage
Compatible with electronic, standard magnetic, energy saving and dimming AC ballast
Can be used with switched or unswitched lighting fixtures
Test switch and LED charge indicator light supplied standard
Maintenance-Free
Provides 90 min of emergency lighting
Battery case made of heavy 22 ga steel
Dual input voltage 120/277 VAC, 60 Hz operation for UFO-CF1
Universal input voltage 120 to 277 VAC, 50/60 Hz operation for UFO-CF2 and UFO-CF2-CLD
Black Color
Current
2.2500
IN
17.0000
IN
1
3.4400
LB
5.2500
IN
Dual-Lite
FLUORESCENT EMERGENCY BALLASTS
Case Material
Steel
Chemical System
Nickel-Cadmium
Dimensions
9.4 in L x 2.4 in W x 1.5 in H
Nominal Voltage
V AC
120/277
Suitable For Use With
Compact fluorescent fixture
