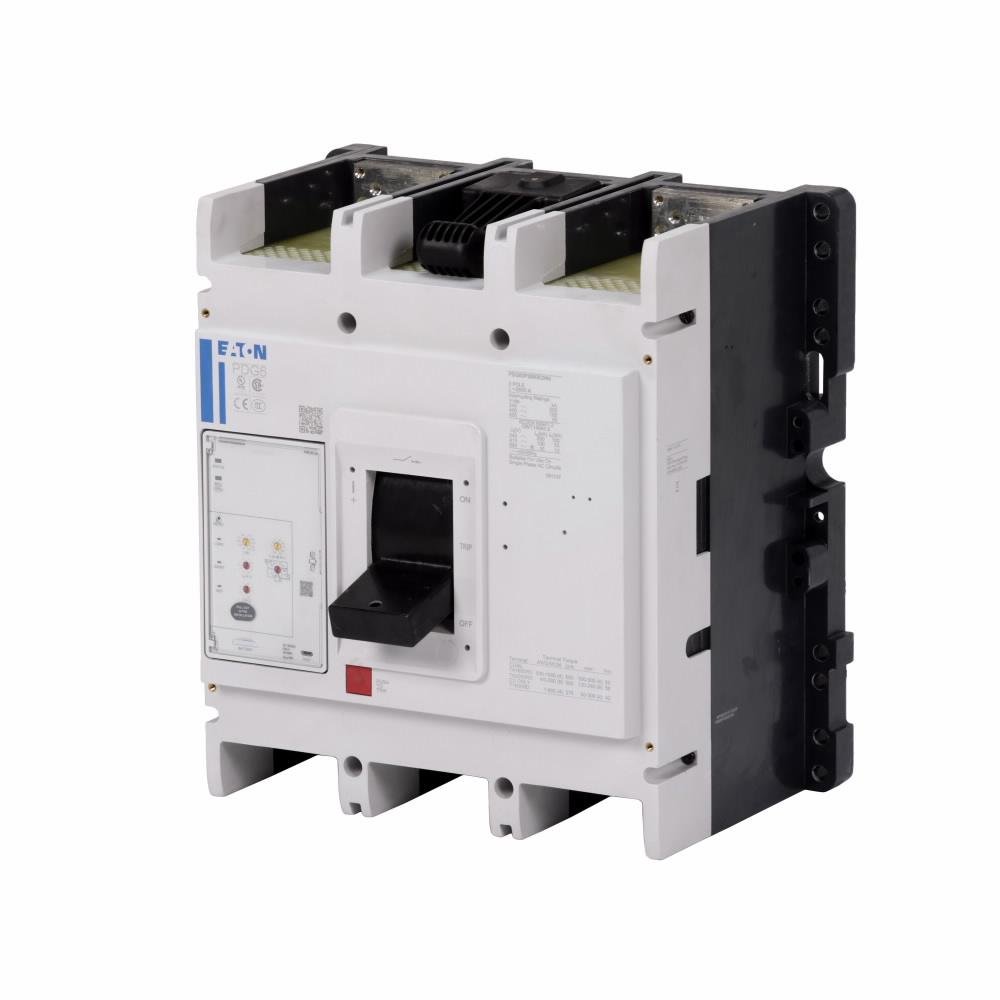

PDG62N1600E3XM - Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 6, Two Pole, 1600A, 85kA/480V, PXR20 LSIG w/ CAM Link, ZSI & Relays, No Terminals (Metric Tapped Conductors)
Description
Specifications
98lb
18.5mm
18.75mm
20.5mm
Eaton
USA
US
CAM Link, ZSI and Relays
BREAKER CKT CASE MLD 600VAC 1600A 2
Power Xpert® release trip units offer features such as breaker health, multiple load alarms and ground fault alarm to help avoid costly downtime through predictive and preventative maintenance
Arcflash reduction maintenance system helps to reduce arc flash incident energy levels, thereby reducing PPE requirements and minimizing risk while improving personnel safety and productivity
The PXR trip units provide an intuitive user interface that allows you to easily view and adjust breaker settings and system performance
Embedded communications and metering help to reduce cost by eliminating the need for separate communication components and associated wiring
Field installable components and trip units minimize the amount of inventory while enabling the user almost infinite options to customize the breaker to the application and their specification
Communications and energy metering at 1% accuracy level
Programmable relays for situational awareness and flexibility
Power Xpert® protection manager software for setup and testing
Zone selective interlocking (ZSI) with local and remote indication
Without terminals (metric tapped conductors)
Eaton
18.5000
IN
20.5000
IN
1
98.0000
LB
18.7500
IN
Lenox
TAPE, MARKERS, SOLDERING & INSULATING MATERIALS
Amperage Rating
A
1600
Series
PDG6
Temperature Rating
deg C
-20 To 70
Trip Type
Electronic
Type
Globally Rated
Voltage Rating
V AC
600
Wire Size
AWG
500 to 1000
Dimensions
15.5 in W x 9.8 in D x 16 in H
Enclosure Type
IP2x
Frame
6
Frequency Rating
HZ
50/60
Interrupt Rating
85 kA at 480 V/50 kA at 600 V
Material
Glass Polyester
Mounting Type
Fixed
Number Of Poles
2
