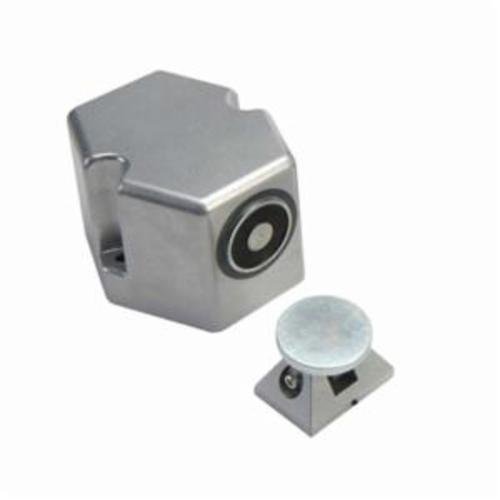

1501-AQN5 - Electromagnetic Door Holder
Description
Specifications
4.6lb
Indoor Applications
Edwards Signaling
USA
US
Mounting hardware
HOLDER DOOR 2-3/4IN 4-1/2IN FL SIL
Low Power Consumption
Completely silent operation
24 VAC/VDC, 120 VAC operating voltage, 60 Hz frequency
0.015 A ampere rating
Adjustable, swivel contact plate
25 ft-lb holding force
The electromagnet is designed to be floor mounted using the supplied floor mounting plate
Field wiring connections are made to the wiring inside the electromagnet
The catch plate assembly may be mounted to the door either by through-bolting or by using the concealed surface mounting plate
Designed to be used on self-closing, swinging doors to automatically isolate an area when activated by fire alarm, smoke detection or sprinkler systems
Can also be operated by manual control - wherever the instant closing of doors is necessitated for safety or for convenience
Hospitals - for stairwell doors, room doors, long corridors, schools - exit door (closes all doors at once by pushbutton control), offices (instant privacy by pushing a button on your desk), nursing homes and public buildings
United Technologies
1
4.6000
LB
Edwards
CENTRAL CONTROL DEVICES & SYSTEMS
Color
Silver
Finish
Epoxy Aluminum Powder Coated
Height
IN
4/1/2002
Material
Die Cast Metal
Mounting Type
Floor
Series
1500
Type
Electromagnetic Heavy Duty Single
Width
IN
2/3/2004
