Edwards Signaling

340-4G5 - Vibrating Bell

Category Bells, Horns, Sirens, Buzzers, Strobes

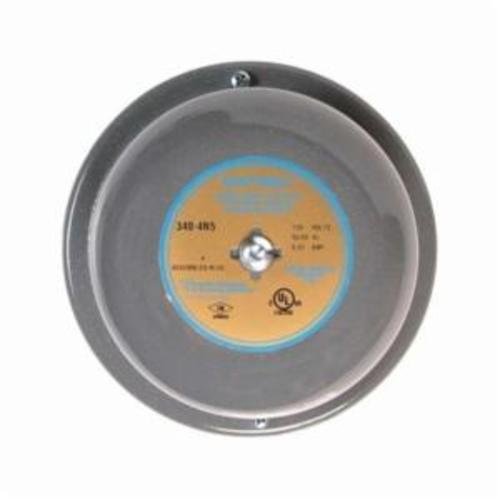

Picture of 340-4G5 - Vibrating Bell Picture of 340-4G5 - Vibrating Bell
Picture of 340-4G5 - Vibrating Bell Picture of 340-4G5 - Vibrating Bell
Picture of 340-4G5 - Vibrating Bell Picture of 340-4G5 - Vibrating Bell
Picture of 340-4G5 - Vibrating Bell Picture of 340-4G5 - Vibrating Bell
Picture of 340-4G5 - Vibrating Bell Picture of 340-4G5 - Vibrating Bell
Edwards Signaling

340-4G5 - Vibrating Bell

Item Code: 2816
Category Bells, Horns, Sirens, Buzzers, Strobes
Manufacturer Ref 340-4G5

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Vibrating Bell; Type Round Vibrating Gong; Voltage Rating 24 VAC; Current Rating 0.31 Ampere; Power Rating 7.4 VA; Sound Intensity 88 dB at 10 Ft; Gong Size 4 Inch Dia; Size 4-1/2 Inch Dia x 2-13/32 Inch D; Housing Material Heat Flowed Epoxy Finished Die-Cast; Mounting Octagon Box/Single Gang Box/Square Box/Surface; Application Factory, Heavy Machine Shop; Approval UL, CSFM, FM; DC Coil Resistance 50 Ohm

Specifications

Weight

2.54lb

AD All Features

Completely assembled with all hardware supplied

AD Application

For timing, scheduling, paging and general alarm applications

AD Brand (Description)

Edwards Signaling

AD Competitor

Grainger - 16G570

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD Document Caption 2

Instruction/Installation Manual

AD Gtin

00782640234808

AD Invoice Description

BELL VIBRATING 24VAC 0.31A 7.4VA 60HZ

AD Item Features 01

Completely assembled with all hardware supplied

AD Item Features 02

Corrosion-resistant heat flowed epoxy finish

AD Item Features 03

Mounts directly on surface or electrical box

AD Item Features 04

Self-compensating solenoid plunger

AD Keywords

340-4G5 Vibrating Bell, 24 V AC, 0.31 A, 98/88 dB, Surface Mounting, Specifications Met: UL Listed, FM Approved, 4 in Gong ; United Technologies ; Edwards Signaling ; 3404G5 ; 782640234808 ; Signaling Bells

AD Manufacturer (Description)

United Technologies

AD Package Quantity

1

AD Package Weight

2.5400

AD Package Weight UOM

LB

AD Part Number Keywords

340-4G5 ; 3404G5 ; 782640234808 ; 78264023480 ; 00782640234808

Brand

Edwards

Category

BELLS, HORNS, SIRENS, BUZZERS, STROBES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

0.31

Spec 10 Attribute

Sound Level

Spec 10 Attribute UOM

DB

Spec 10 Attribute Value

98/88

Spec 11 Attribute

Specifications Met

Spec 11 Attribute Value

UL Listed, FM Approved

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

24

Spec 2 Attribute

Color

Spec 2 Attribute Value

Gray

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4-1/2 in Dia x 2-13/32 in D

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

60

Spec 5 Attribute

Gong Size

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

4

Spec 6 Attribute

Material

Spec 6 Attribute Value

Die Cast

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

VA

Spec 8 Attribute Value

7.4

Spec 9 Attribute

Series

Spec 9 Attribute Value

340
