Edwards Signaling

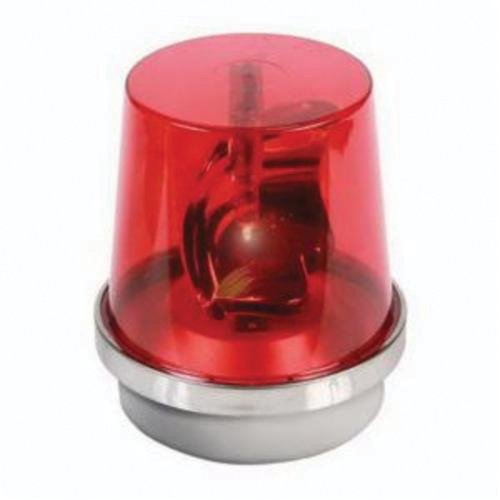

52R-N5-40WH - Rotating Beacon

Category Bells, Horns, Sirens, Buzzers, Strobes
Picture of 52R-N5-40WH - Rotating Beacon Picture of 52R-N5-40WH - Rotating Beacon
Picture of 52R-N5-40WH - Rotating Beacon Picture of 52R-N5-40WH - Rotating Beacon
Picture of 52R-N5-40WH - Rotating Beacon Picture of 52R-N5-40WH - Rotating Beacon
Edwards Signaling

52R-N5-40WH - Rotating Beacon

Item Code: 23535
Category Bells, Horns, Sirens, Buzzers, Strobes
Manufacturer Ref 52R-N5-40WH

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Rotating Beacon; Type Rotating Light; Operating Voltage 120 VAC at 50/60 Hz; Operating Current 0.35 Ampere; Lamp Type 40 W Halogen; Light Intensity 265 Lumen; Flash Rate 65 FPM; Lens Color Red; Size 6 Inch Dia x 8-1/2 Inch H; Approval UL 1638, CUL; Revolution Rate 75 RPM; Base Material Cast; Lamp Life 25000 Hr; Application Indoor/Outdoor; Mounting 1/2 Inch NPT Conduit/Surface, 4 Inch Octagon Box; Temperature Rating -31 to 150 Deg F; Includes Polycarbonate Dome, Light Intensifying Reflector

Specifications

Weight

6.75lb

AD All Features

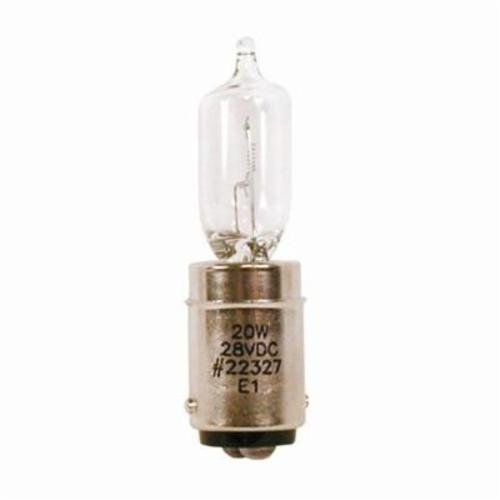

Bayonet lamp socket for easy replacement

AD Application

Indoor and outdoor applications

AD Brand (Description)

Edwards Signaling

AD Competitor

Grainger - 16G527

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Instruction/Installation Manual

AD Document Caption 2

Specification Sheet

AD Gtin

00782640265581

AD Invoice Description

BEACON ROTATING 120VAC 0.35A 40W CYL 6IN

AD Item Features 01

Bayonet lamp socket for easy replacement

AD Item Features 02

Cast base can be utilized as a junction box

AD Item Features 03

May be mounted vertically, facing up or down

AD Item Features 04

Light intensifying reflector

AD Item Features 05

The polycarbonate dome allows for easy cleaning

AD Keywords

52R-N5-40WH 52 Series Weatherproof Rotating Beacon, 120 V AC, Halogen Lamp, 6 in Dia, Screw Mount, Red, UL 1638, cUL Listed ; United Technologies ; Edwards Signaling ; 52RN540WH ; 782640265581 ; Rotating Beacons

AD Manufacturer (Description)

United Technologies

AD Package Quantity

1

AD Package Weight

6.7500

AD Package Weight UOM

LB

AD Part Number Keywords

52R-N5-40WH ; 52RN540WH ; 782640265581 ; 78264026558 ; 00782640265581

Brand

Edwards

Category

BELLS, HORNS, SIRENS, BUZZERS, STROBES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

0.35

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Screw

Spec 11 Attribute

Series

Spec 11 Attribute Value

52 Series

Spec 12 Attribute

Shape

Spec 12 Attribute Value

Cylindrical

Spec 13 Attribute

Specifications Met

Spec 13 Attribute Value

UL 1638, cUL Listed

Spec 14 Attribute

Temperature Rating

Spec 14 Attribute UOM

deg F

Spec 14 Attribute Value

-31 to 150

Spec 15 Attribute

Type

Spec 15 Attribute Value

Weatherproof

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

120

Spec 17 Attribute

Wattage

Spec 17 Attribute UOM

W

Spec 17 Attribute Value

40

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

25000

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Diameter

Spec 4 Attribute UOM

IN

Spec 4 Attribute Value

6

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

8-1/2 in H

Spec 6 Attribute

Flash Rate

Spec 6 Attribute UOM

FPM

Spec 6 Attribute Value

65

Spec 7 Attribute

Housing Material

Spec 7 Attribute Value

Cast Metal Base/Polycarbonate Dome

Spec 8 Attribute

Lamp Type

Spec 8 Attribute Value

Halogen

Spec 9 Attribute

Light Output

Spec 9 Attribute UOM

CD

Spec 9 Attribute Value

3328
