Edwards Signaling

599 - Transformer 120V AC prim 24V 40W sec

Category Transformers & Accessories

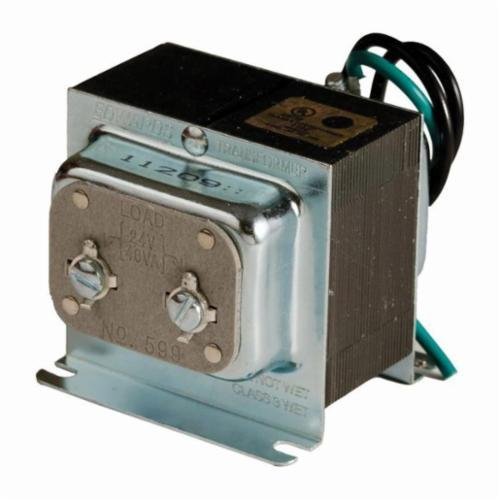

Picture of 599 - Transformer 120V AC prim 24V 40W sec Picture of 599 - Transformer 120V AC prim 24V 40W sec
Picture of 599 - Transformer 120V AC prim 24V 40W sec Picture of 599 - Transformer 120V AC prim 24V 40W sec
Edwards Signaling

599 - Transformer 120V AC prim 24V 40W sec

Item Code: 2843
Category Transformers & Accessories
Manufacturer Ref 599

Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Edwards 590 Series class 2 signaling transformers are easy to install, low voltage power sources for residential, commercial and industrial uses. Mounts in a standard 1/2 in (13 mm) knockout or surface mounts using the provided foot mounts. These transformers are suitable for mounting in both plastic and metal back boxes. May also be used with the 593 transformer plate for enclosed mounting in a standard 2-gang outlet box. The 591 transformer is suitable for standard doorbells and chimes in residential and commercial applications requiring 16 VAC. The Edwards 598, 598Y, 599 and 599Y transformers offer high power for long wire runs or for applications requiring greater power such as door openers.

Specifications

Weight

1.55lb

Brand

Edwards

Category

TRANSFORMERS & ACCESSORIES

Connection Type

Pigtail

Dimensions

2-1/4 in L x 2-1/8 in W x 2-15/16 in H

Frequency Rating

50/60 Hz

Maximum Amperage Rating

40 A

Mounting Type

Surface

Number Of Taps

1

Phase

1

Primary Voltage

120 V AC

Secondary Voltage

24 V AC

Series

590

Type

Class 2 Low Voltage
