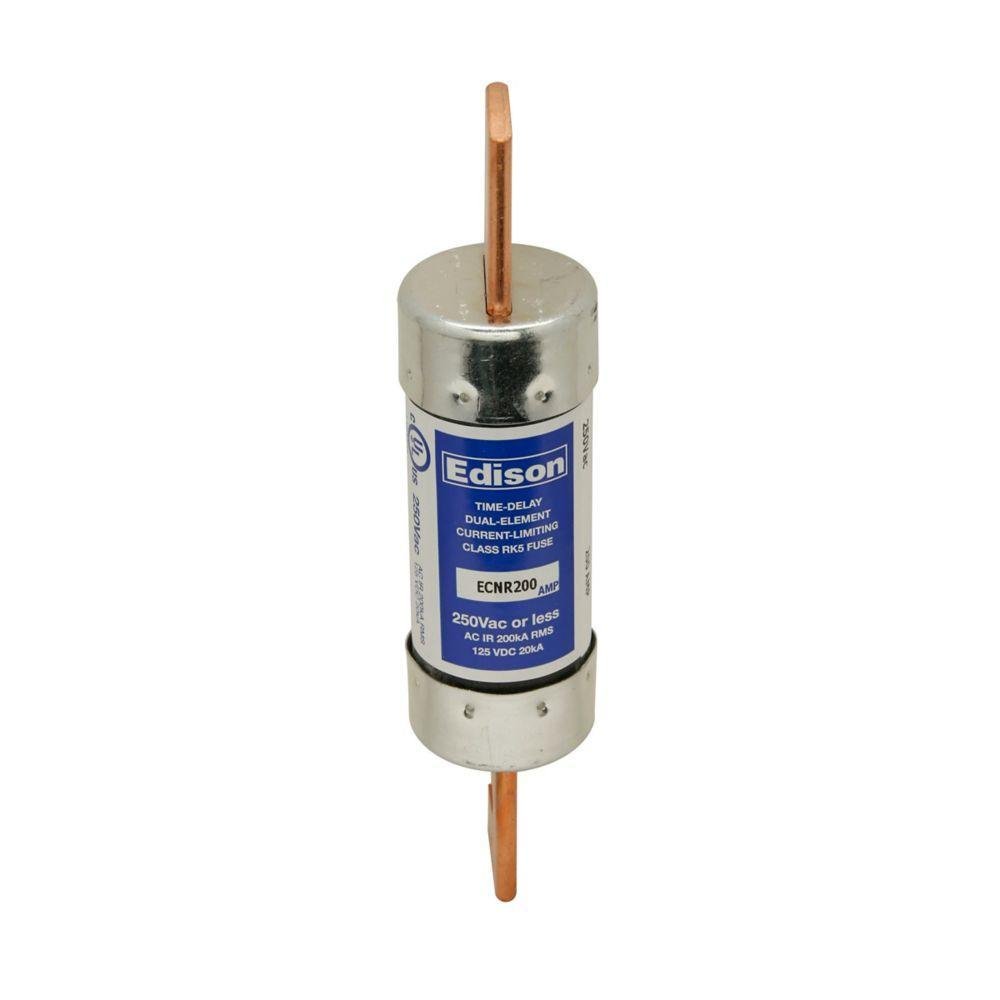

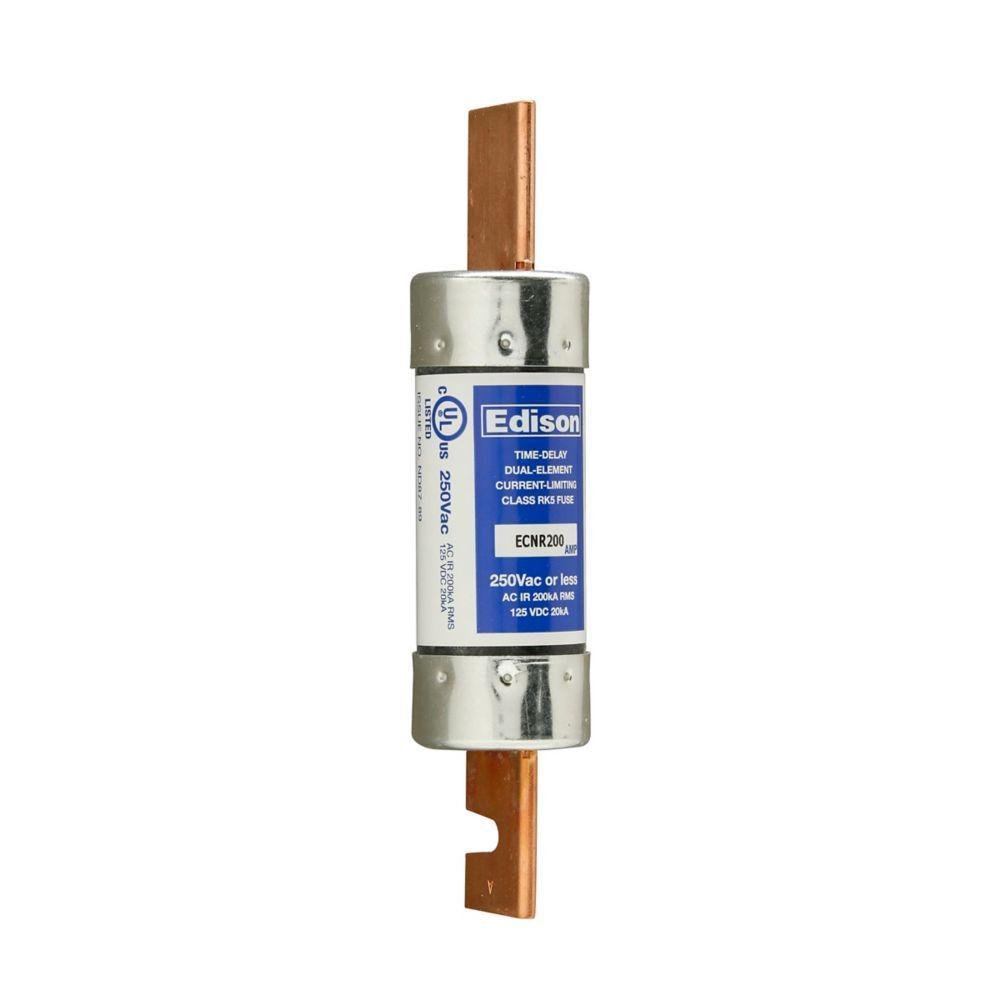

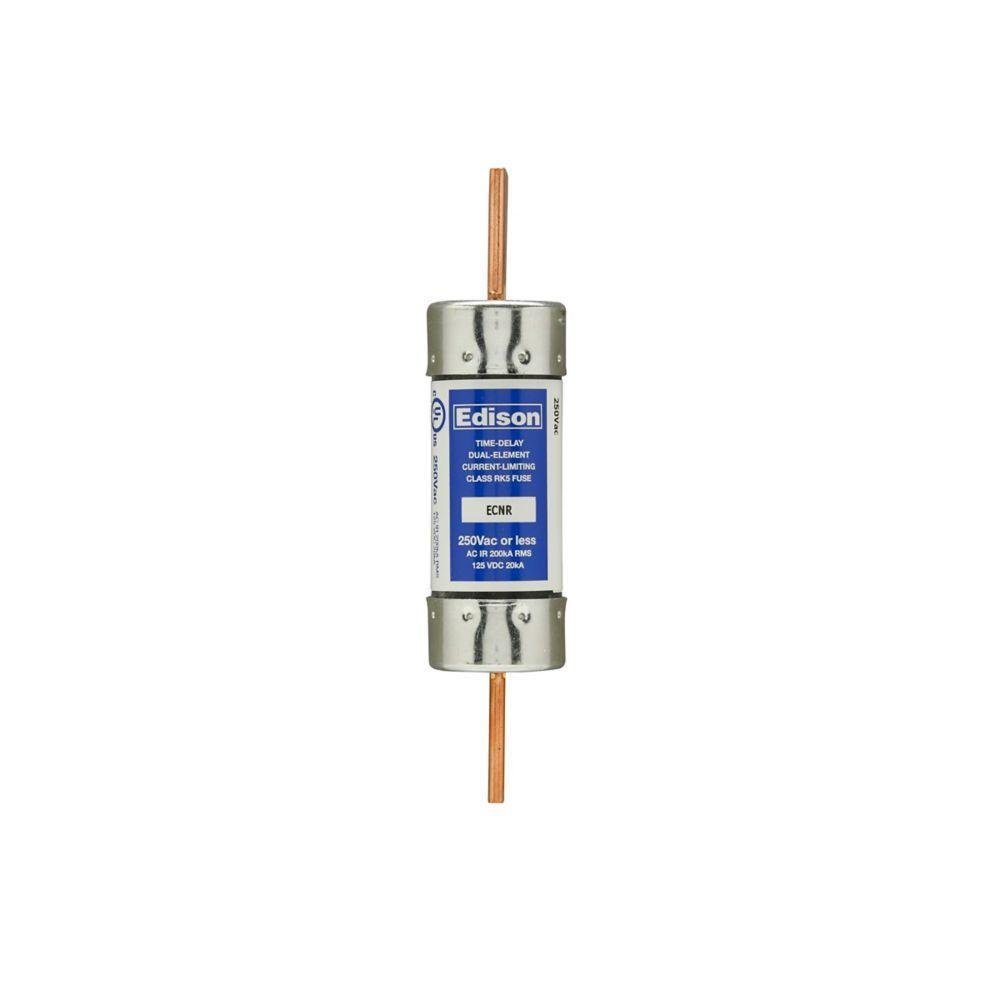

ECNR150 - Eaton Edison ECNR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 150 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC, Standard, 250 V, 125 Vdc
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.85lb
Height
1.9mm
Width
2mm
Length
7.6mm
AD All Features
Superior Overload and Cycling Capabilities
AD Brand (Description)
Edison
AD Country
USA
AD Country Of Origin
MX
AD Invoice Description
FUSE 150A 250 VAC/125 VDC 200KAIC RK5
AD Item Features 01
Superior Overload and Cycling Capabilities
AD Manufacturer (Description)
Eaton
AD Package Height
1.9000
AD Package Height UOM
IN
AD Package Length
7.6000
AD Package Length UOM
IN
AD Package Quantity
1
AD Package Weight
0.8500
AD Package Weight UOM
LB
AD Package Width
2.0000
AD Package Width UOM
IN
AD Video Links
https://www.panduit.com/content/dam/panduit/en/products/media/7/47/647/4647/110154647.mp4
Brand
Edison Fuse / BES Generic Fuses
Category
Current Limiting Fuses
Spec 1 Attribute
Amperage Rating
Spec 1 Attribute UOM
A
Spec 1 Attribute Value
150
Spec 10 Attribute
Series
Spec 10 Attribute Value
ECNR
Spec 11 Attribute
Terminal Type
Spec 11 Attribute Value
Blade End
Spec 12 Attribute
Type
Spec 12 Attribute Value
Current Limiting Time Delay
Spec 13 Attribute
Voltage Rating
Spec 13 Attribute Value
250 V AC/125 V DC
Spec 2 Attribute
Body Size
Spec 2 Attribute Value
1.56 in Dia x 7.13 in L
Spec 3 Attribute
Body Type
Spec 3 Attribute Value
Cylindrical
Spec 4 Attribute
Class
Spec 4 Attribute Value
RK5
Spec 5 Attribute
Element
Spec 5 Attribute Value
Dual
Spec 6 Attribute
Indicating/Non-Indicating
Spec 6 Attribute Value
Non-indicating
Spec 7 Attribute
Interrupt Rating
Spec 7 Attribute UOM
kAIC
Spec 7 Attribute Value
200
Spec 8 Attribute
Material
Spec 8 Attribute Value
Fiberglass
Spec 9 Attribute
Response Time
Spec 9 Attribute Value
10 S At 500%
