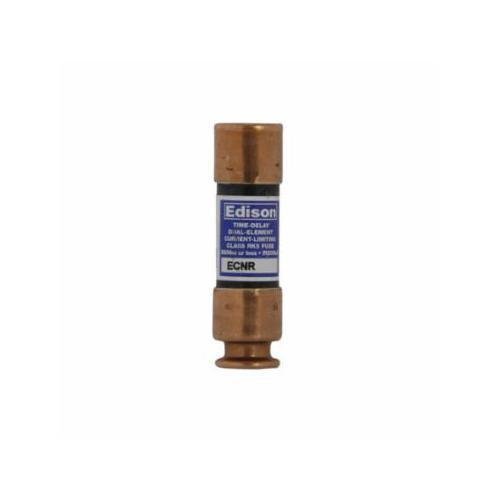

ECNR20 - Eaton Edison ECNR fuse, Time-delay current-limiting fuse, Superior overload and cycling capabilities, 20 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 8 sec at 500%, 200 kAIC, Standard, 250 V, 125 Vdc
Description
Specifications
0.85lb
1.56mm
1.56mm
7.13mm
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders, Branch Circuits, Motor, Motor Branch Circuits, Lighting, Heating, Transformers and Inductive Loads Applications
Edison
USA
MX
FUSE 20A 250 VAC/125 VDC 200KAIC RK5 CYL
Provides motor overload, ground fault and short circuit protection
Helps protect motors against burnout from overloads
Helps protect motors against burnout from 1 ph on 3 ph systems
Simplifies and improves blackout prevention (selective co-ordination ratios)
Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
Superior Overload and Cycling Capabilities
Eaton
1.5600
IN
7.1300
IN
1
0.8500
LB
1.5600
IN
https://www.youtube.com/watch?v=YMvqUyoETXk
Edison Fuse / BES Generic Fuses
Current Limiting Fuses
Amperage Rating
A
20
Response Time
10 S At 500%
Series
ECNR
Terminal Type
Ferrule End
Type
Current Limiting Time Delay
Voltage Rating
250 V AC/125 V DC
Body Size
0.56 in Dia x 2 in L
Body Type
Cylindrical
Class
RK5
Element
Dual
Indicating/Non-Indicating
Non-indicating
Interrupt Rating
kAIC
200
Material
Fiberglass
Rejection/Non-Rejection
Rejection
