Mersen

ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series

Category Small Dimension Fuses

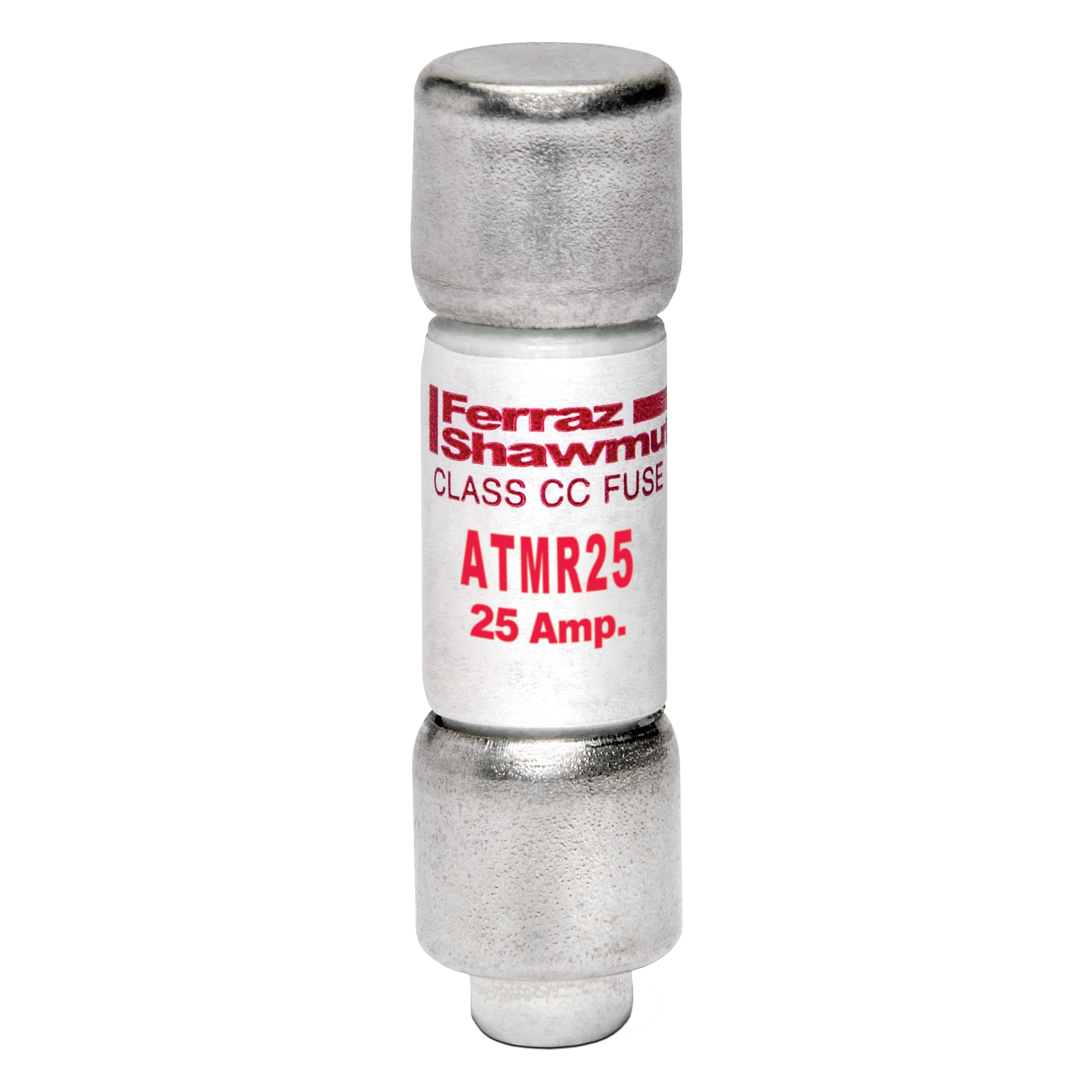

Picture of ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series Picture of ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series
Picture of ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series Picture of ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series
Mersen

ATMR25 - Fuse Amp-Trap® 600V 25A Fast-Acting Class CC ATMR Series

Item Code: 856644
Category Small Dimension Fuses
Manufacturer MERSEN
Manufacturer Ref ATMR25

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits.

Specifications

Weight

0.02lb

Height

0.41mm

Width

0.41mm

Length

1.5mm

AD Application

Control Circuits, Lighting, General Loads and Branch Circuit Protection Applications

AD Brand (Description)

Mersen

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

FUSE ACTING FAST 25A 600VAC/VDC CC CYL

AD Item Features 01

Rejection style design prevents replacement errors when used with recommended fuse blocks

AD Item Features 02

Fiberglass body provides dimensional stability in harsh industrial environments

AD Item Features 03

Versatile design for individual component and branch circuit protection

AD Item Features 04

Tin-plated copper contact

AD Item Features 05

North American Power Fuses

AD Manufacturer (Description)

Mersen

AD Package Height

0.4100

AD Package Height UOM

IN

AD Package Length

1.5000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0200

AD Package Weight UOM

LB

AD Package Width

0.4100

AD Package Width UOM

IN

Brand

Ferraz Shawmut

Category

Small Dimension Fuses

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

25

Spec 10 Attribute

Rejection/Non-Rejection

Spec 10 Attribute Value

Rejection

Spec 11 Attribute

Series

Spec 11 Attribute Value

ATMR

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Ferrule

Spec 13 Attribute

Type

Spec 13 Attribute Value

Current Limiting Low Voltage

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC/DC

Spec 14 Attribute Value

600

Spec 2 Attribute

Body Size

Spec 2 Attribute Value

13/32 in Dia x 1-1/2 in L

Spec 3 Attribute

Body Type

Spec 3 Attribute Value

Cylindrical

Spec 4 Attribute

Class

Spec 4 Attribute Value

CC

Spec 5 Attribute

Element

Spec 5 Attribute Value

Single

Spec 6 Attribute

Indicating/Non-Indicating

Spec 6 Attribute Value

Non-indicating

Spec 7 Attribute

Interrupt Rating

Spec 7 Attribute UOM

KA

Spec 7 Attribute Value

200/100

Spec 8 Attribute

Material

Spec 8 Attribute Value

Fiber

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Clip
