Mersen

FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp

Category Fuseholders & Fuseblocks

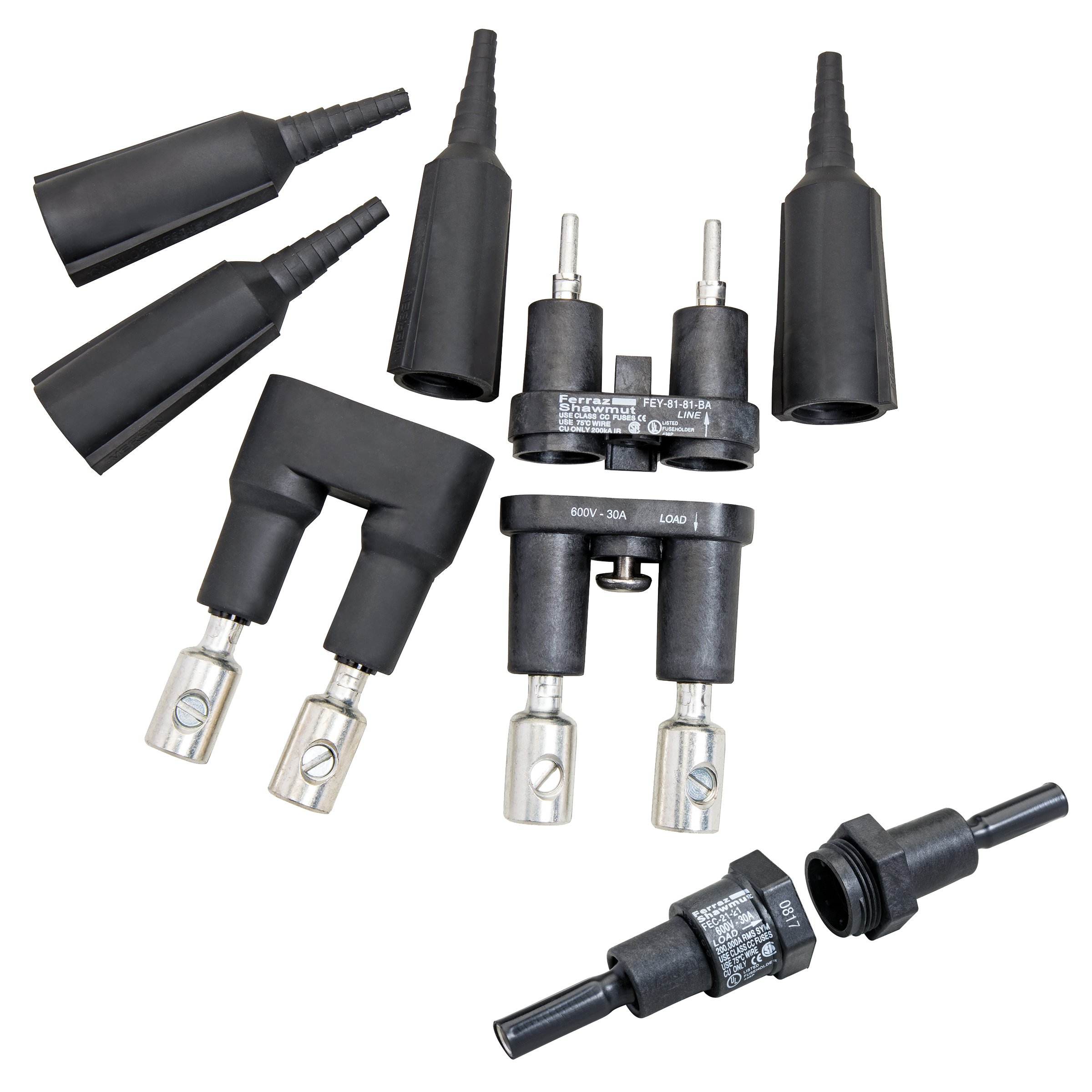

Picture of FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp Picture of FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp
Picture of FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp Picture of FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp
Mersen

FEB-11-11 - Fuse Bases 600V 30A Midget 1-pole 11-11 Crimp

Item Code: 675425
Category Fuseholders & Fuseblocks
Manufacturer MERSEN
Manufacturer Ref FEB-11-11

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Mersen’s complete line of single and dual pole in-line fuse holders accommodate either 1-1/2" x 13/32" (10 x 38 mm) midget or Class CC fuses. The fuse holders are designed for quick installation. Securing nuts or screws are captive thus speeding installation by reducing the need to locate and assemble loose components in the field. Three internal O-rings per pole seal the fuse holder providing a waterresistant compartment for the fuse. The captive O-rings are colored (blue for single pole and red for dual pole) for quick detection. Optional cone shaped insulator boots can be slipped on to provide a watertight seal (breakaway versions come with boots standard). Both single and dual pole versions have an optional breakaway feature which safely disconnects the load in case of a pole knockdown. Fuses remain safely encapsulated within the watertight fuse holder on the load side. Once the pole has been reinstalled the fuse holder can be easily reconnected.

Specifications

Weight

0.1lb

Height

1mm

Width

1mm

Length

4.3mm

AD Application

Street Lighting, Parking Lot Lighting, Traffic Signaling, Sports Lighting, Boats and Marinas and Humid/Corrosive Environments Applications

AD Brand (Description)

Mersen

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

HOLDER FUSE IN-L 600VAC 30A 12 TO 8AWG

AD Item Features 01

Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards

AD Item Features 02

3 O-rings per pole for watertight applications

AD Item Features 03

Colored O-rings for quick detection

AD Item Features 04

Single and dual poles

AD Item Features 05

Accepts midget or class CC fuses

AD Item Features 06

Wide assortment of terminal variations

AD Item Features 07

High heat, impact resistant insulator

AD Item Features 08

Captive nut or screw for quick installations

AD Item Features 09

Polarized dual pole provides simultaneous disconnection

AD Item Features 10

Permanently installed neutral versions quickly identified by white nuts

AD Item Features 11

Environmentally friendly no-lead solder used

AD Item Features 12

Highly visible catalog number even with insulation boots installed

AD Item Features 13

Wire gauge size identified on insulation boots for quick, accurate trimming

AD Item Features 14

Copper Terminal

AD Item Features 15

(1) 12 - 8 AWG and (2) 14 - 12 AWG line/load wire size

AD Manufacturer (Description)

Mersen

AD Package Height

1.0000

AD Package Height UOM

IN

AD Package Length

4.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4.3000

AD Package Volume UOM

cu-in

AD Package Weight

0.1000

AD Package Weight UOM

LB

AD Package Width

1.0000

AD Package Width UOM

IN

Brand

Ferraz Shawmut

Category

FUSEHOLDERS & FUSEBLOCKS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

1

Spec 11 Attribute

Series

Spec 11 Attribute Value

FEB

Spec 12 Attribute

Suitable For Use With

Spec 12 Attribute Value

ATQ, ATM, TRM, OTM, GGU, GFN, A13X-2, A25Z-2, A60Q-2 and A6Y-2B Series Midget Fuse

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg C

Spec 13 Attribute Value

155

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

600

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

12 To 8

Spec 2 Attribute

Class

Spec 2 Attribute Value

Midget

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Crimped

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

4.3 in L

Spec 5 Attribute

Fuse Diameter

Spec 5 Attribute UOM

IN

Spec 5 Attribute Value

13/32

Spec 6 Attribute

Fuse Length

Spec 6 Attribute UOM

IN

Spec 6 Attribute Value

1/1/2002

Spec 7 Attribute

Material

Spec 7 Attribute Value

Polyethylene

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

In-Line

Spec 9 Attribute

Number of Phases

Spec 9 Attribute Value

1
