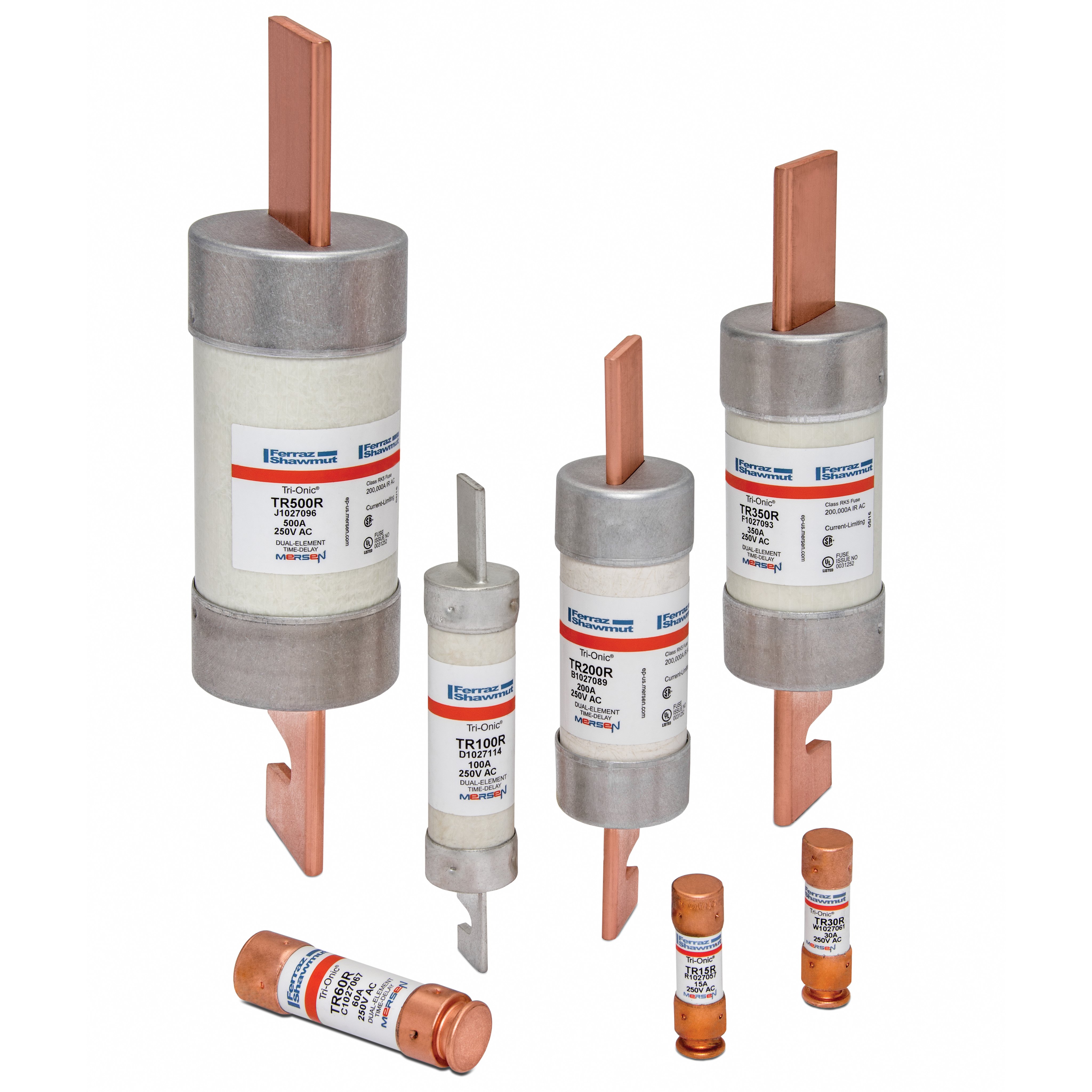

TR40R - Fuse Tri-Onic® 250V 40A Time-Delay Class RK5 TR Series
Description
Specifications
0.12lb
0.81mm
0.81mm
3mm
Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment and General Purpose Equipment Applications
Mersen
USA
MX
FUSE TD 40A 250VAC/VDC 200/20KA RK5 CYL
Time delay for motor start-ups and transformer inrush currents without nuisance opening
Current limiting for low peak let-thru current
Rejection style design prevents replacement errors when used with recommended fuse blocks
Easy-to-read label for quick brand recognition and replacement
Metal embossed date and catalog number for traceability and lasting identification
Fiberglass body provides dimensional stability in harsh industrial settings
High grade silica filler ensures fast arc quenching and high current limitation
North American Power Fuses
Copper, tin-plated copper contact
Mersen
0.8100
IN
3.0000
IN
1
1.9700
cu-in
0.1200
LB
0.8100
IN
Ferraz Shawmut
Current Limiting Fuses
Amperage Rating
A
40
Rejection/Non-Rejection
Rejection
Series
TR-R
Terminal Type
Ferrule
Type
Current Limiting Low Voltage
Voltage Rating
V AC/DC
250
Body Size
13/16 in Dia x 3 in L
Body Type
Cylindrical
Class
RK5
Element
Dual
Indicating/Non-Indicating
Non-indicating
Interrupt Rating
KA
200/20
Material
Polyester
Mounting Type
Clip
